RED KOMODO-X Production Pack (Vlock)
Key Features
- 19.9MP Super35 Global Shutter CMOS
- Locking Canon RF Lens Mount
- Up to 6K 80fps & 4K 120fps Video
- 12G-SDI, USB-C and 5-Pin Audio Ports
- Wireless Control and File Offload via Wi-Fi
- 6K Streaming via RED Connect License
- Integrated 2.9" Touchscreen Display and Included DSMC3 RED Touch 7" LCD
- CFexpress Card Reader
- Compact R/S Top Handle
- 5-Pin to 3.5mm Audio Cable
Available for Rent
OVERVIEW
The next evolution of Komodo features all-new sensor technology that multiplies frame rate and dynamic range performance within a new advanced platform.
Next Generation Global Shutter
Komodo-X features a completely overhauled sensor architecture, with updated pixel design and improvements in both detail and color in shadows.
6K at 80fps & 4K at 120fps
Komodo-X achieves 80fps in 6K and 120fps in 4K - thanks to the new sensor design and processing as well as support for a CFexpress card.
Improved Body Design
A Robust locking RF Mount, with professional Micro V-Lock battery interface and all-new assignable tactile buttons.
Advanced Platform
Expanded input and outputs including updated monitoring capabilities with support for DSMC3 touch LCD, built-in USB Type-C, and newly engineered audio hardware including locking +48V audio connector with improved preamp.
Production Ready
Komodo-X carries on the legacy of a shockingly small form factor, but now with more advanced input and output options. This allows for more professional monitoring, cabling and powering, as well as expanded remote capabilities like Red Connect.
CFexpress Media
Komodo-X uses standardized and high-performing CFexpress Type B media to ensure the best reliability and performance possible.
- Higher capacities for longer run times
- Up to 17 Hours recording time with 4TB CFexpress Card
- 3x faster offload times than CFast Media
Interface Expansion
Komodo-X offers robust and powerful systems, with USB Type-C interfaces, ethernet offload capabilities, timecode and genlock compatibility and more.
Form Factor Comparison
The size and features of the Komodo and Komodo-X systems offer the perfect tool for filmmakers - no matter the project or job.
Advanced Connectivity
Unlock the capabilities of the Komodo-X system through multiple next generation remote connectivity options, including the Red Control App and the all-new Red Connect Technology.
- Touch Screen Display:Integrated onboard LCD provides comprehensive control and image preview for smallest possible configuration
- DSMC3 Touch Monitor Support:Monitor and control the camera using the direct attached 7" DSMC3 touch LCD, leaving the SDI available for wireless transmitters or other monitors
- Tactile Buttons:On-Camera tactical buttons and assignable all-new record buttons with multifunctional control
Brand
detailed specifications
| Mounting | Tripod Bottom Mounting: 1/4"-20 Female<br>3/8"-16 Female</br> |
| Camera Mount | Bottom: 1/4"-20 Female<br>3/8"-16 Female</br> |
camera attributes
| Monitor Size | 2.9" |
| External Recording Modes | <b>ProRes 4444XQ 4:4:4</b><br>4096 x 2160 up to 60.00 fps<br><b>ProRes 4444 4:4:4</b><br>4096 x 2160 up to 80 fps<br><b>ProRes 422/ProRes 422 HQ/ProRes 422LT</b><br>4096 x 2160 up to 120 fps<br><b>REDCODE RAWREDCODE HQ/REDCODE LQ/REDCODE MQ</b><br>6144 x 3240 up to 80 fps [560 Mb/s]<br>5120 x 2700 up to 96 fps [560 Mb/s]<br>4096 x 2160 up to 120 fps [560 Mb/s]<br>2048 x 1080 up to 240 fps [560 Mb/s]</br> |
| Lens Mount | Canon RF |
| Maximum Resolution | Effective: 19.9 Megapixel |
| Image Sensor Size | 27.03mm x 14.26mm (Super35) CMOS |
| Aspect Ratio | 16:9 |
| Shutter Type | Electronic Global Shutter |
| Camera Body Weight | 2.62lbs |
| Wireless | 2.4 / 5 GHz Wi-Fi 5 (802.11ac) Video Output, Control |
a/v details
| Focus | Autofocus and Manual Focus |
| Audio Connectors | 1 x LEMO 5-Pin Line Input on Camera Body |
| Power Connectors | 1 x LEMO 6-Pin (11 to 17VDC) Input |
| Built-In Microphone | Stereo |
| Video Connectors | 1 x BNC (12G-SDI) Output |
| Other I/O | 1x 9-Pin (Genlock, GPI, Timecode)<br>Control/Data/Video Input/Output: 1x USB-C (Camera Interface)<br>1x RED Cable-Free Monitor Connection Output</br> |
| Camcorder Type | Cinema Camera |
lens specification
| Mount Type | Canon RF |
interface
| Memory Card Slot | Single Slot: CFexpress Type B (CFexpress 2.0) |
battery/charger attributes
| Battery Type | V-Mount |
memory card specs
| Memory Card Type | CFexpress Type B (CFexpress 2.0) |
physical specifications
| Dimensions | 5.09" x 3.99" x 3.75" |
a/v mode
| Audio Recording | 2-Channel 24-Bit 48 kHz |

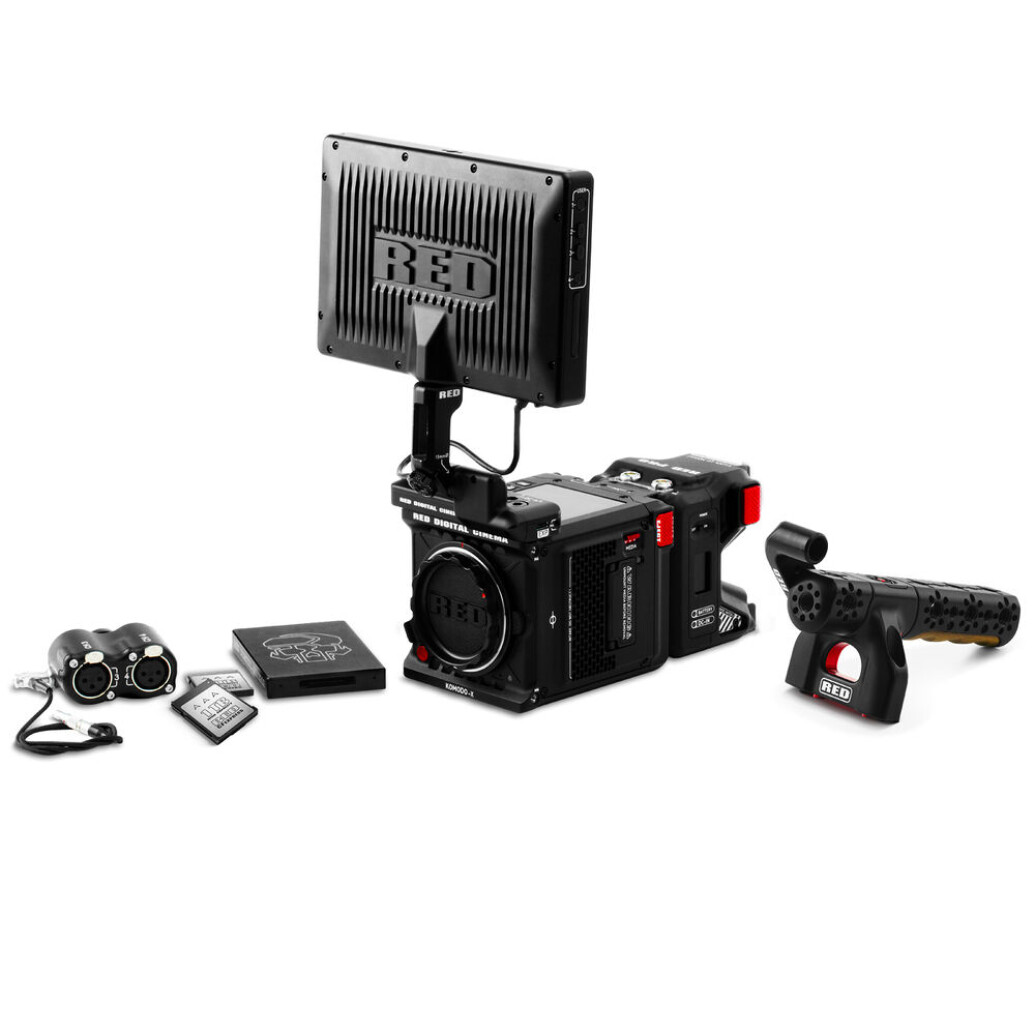

RED DIGITAL CINEMA KOMODO-X 6K Camera Production Pack (V-Mount)
- RED DIGITAL CINEMA KOMODO-X 6K Digital Cinema Camera (Canon RF, Black)
- 2 x RED DIGITAL CINEMA 1TB PRO CFexpress 2.0 Type B Memory Card
- RED DIGITAL CINEMA CFexpress Card Reader
- RED DIGITAL CINEMA DSMC3 RED Touch 7.0" LCD Monitor (Direct Mount)
- RED DIGITAL CINEMA Compact Top Handle for KOMODO-X or V-RAPTOR/XL
- RED DIGITAL CINEMA DSMC3 RED 5-Pin LEMO to 3.5mm Female Audio Adapter (11.3")
- RED DIGITAL CINEMA RED PRO I/O Module for KOMODO-X & V-RAPTOR (V-Mount)
