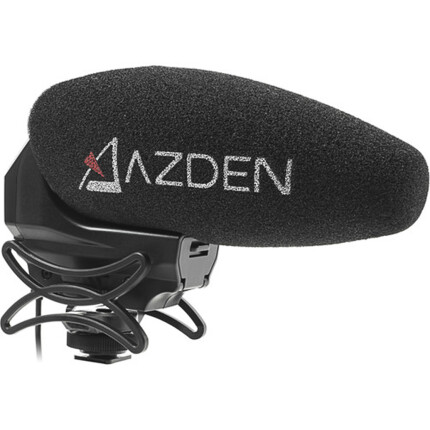

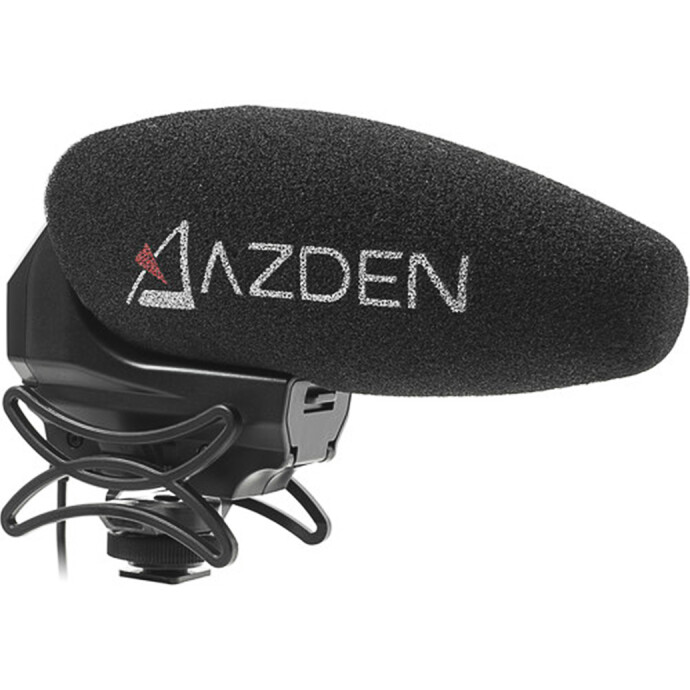

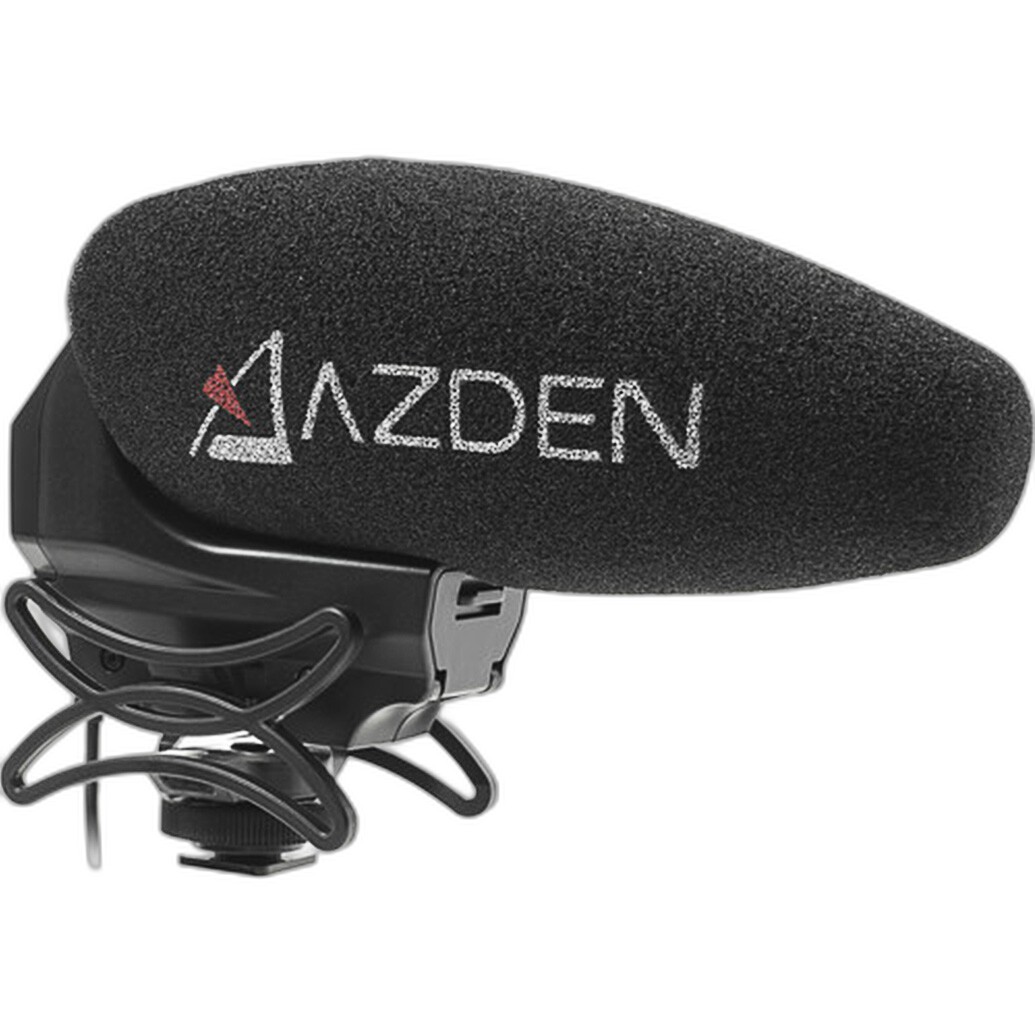

The SMX-30 was engineered to be the ultimate video microphone with outstanding audio quality, appealing design, ergonomic form factor, and all of the functional features one expects in a top-of-the-line, camera-mounted microphone.
If you only have the budget to buy one microphone for your camera, why should you have to choose between mono or stereo? The SMX-30 is stereo/mono switchable, so you don’t have to.

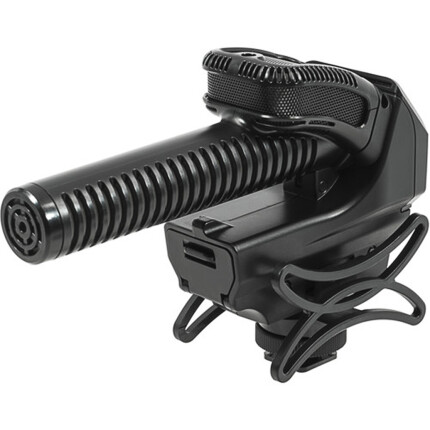

Housed inside an innovative casing, the SMX-30 is actually two microphones packaged into one. The stereo microphone is positioned at the top and consists of 2 cardioid polar pattern microphone elements spaced apart at a 120º angle for capturing a natural sounding stereo image. The mono microphone uses a super-cardioid polar pattern to focus on sound in front of the camera and is equipped with the same high-quality element as Azden’s SGM-250 shotgun microphone to record broadcast quality sound.
The audio controls on DSLR cameras are limited, if they exist at all. And DSLRs are notoriously known to have low-quality microphone preamps that add noise to the video soundtrack when the gain is turned up. That’s why Azden designed the SMX-30 with a +20dB gain booster; so you can get a strong, clean audio signal into your camera, minimizing the need to turn up the noisy preamp.
Also included is a -10dB pad to protect against distortion when recording in loud environments such as live concerts and motorsport events.
The SMX-30 has a wide frequency response ranging from 40Hz to 20kHz, so the audio you capture will sound full and natural. Additionally, a low-cut filter switch is included for reducing the level of low frequencies below 120Hz, which is especially useful for mitigating noise caused by air conditioners, wind and traffic.

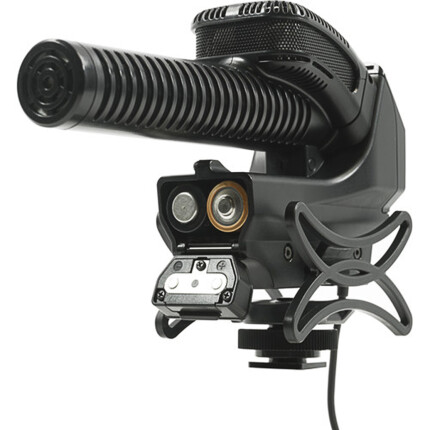

The SMX-30 is powered by two AA batteries; a lower cost option than the 9V battery that is used in some competitor microphones. The SMX-30 can achieve 24 hours of operation with a single set of batteries with absolutely no degradation of sound quality. The battery indicator LED light lets you know when it’s time to change batteries with up to a 1 hour warning.
Maximize battery life by using the unique “Auto” power setting. When set to Auto, the SMX-30 can detect when a camera is on and will automatically power on and off with the camera (requires a mic input that provides plug-in power). Ever leave your microphone on by accident to discover that the batteries are dead the next time you try to use it? Eliminate that possibility by always leaving the SMX-30 in “Auto” mode.
Integrated into the design of the SMX-30 is a custom made, shock absorbing shoe mount to isolate the microphone from camera motor and handling noise. The mount is designed to fit the standard camera shoe and comes with a ¼”-20 thread at the bottom for mounting to boom poles and other camera accessories.
Type of Microphone | Shotgun Microphone |
Power Requirements | 2 x AA |
Weight | 5.11 oz / 145 g |
Dimensions | ø: 1.85 x H: 4.21L: 5.71" |
Color | Black |
Brand | Azden |
Sound Field | Mono, Stereo |
Polar Pattern | Cardioid, Supercardioid |
Frequency Range | 40 Hz to 20 kHz |
Maximum SPL | 130 dB SPL |
Sensitivity | -36 dB at 1 kHz |
Signal to Noise Ratio | 82 dB (1 kHz) |
Mounting | 1/4"-20 Female, Camera/Shoe-Mount (via Integrated Hardware) |
Output Connectors | 1 x 1/8" / 3.5 mm TRS |
Gain Adjustment | +20 dB |
Approximate Battery Life | 24 Hours |
