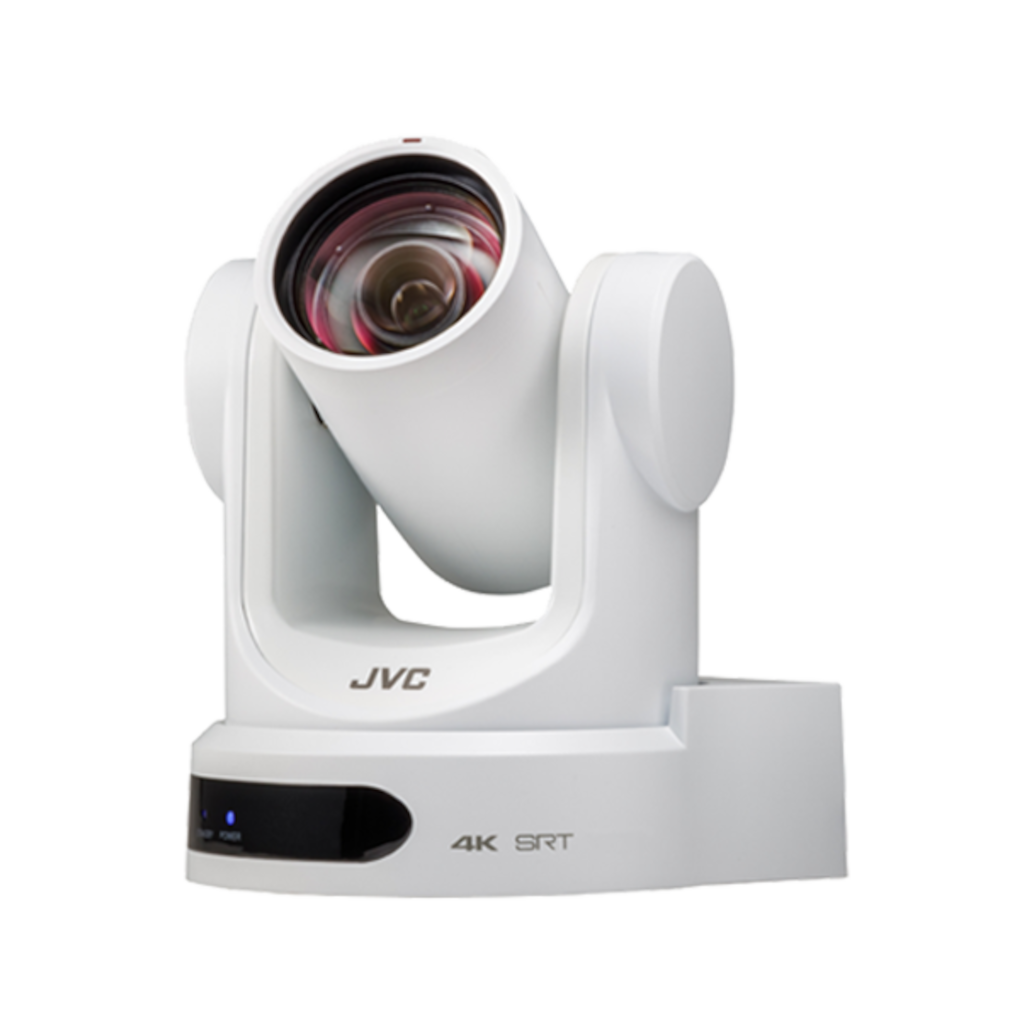

JVC KY-PZ400N 4K NDI HX PTZ Remote Camera with 12x Optical Zoom (White)

OVERVIEW

The new 4K KY-PZ400NWU camera provides optimal streaming image quality and performance for remote production over the internet and is equipped with NDI®|HX and SRT streaming, H.265/H.264/MJPEG encoding, and VITC (Vertical Interval Timecode) multi-camera synchronization technologies. The KY-PZ400N camera model is also available in both black or white variations to best match the ambiance of the venue/project.

With integrated NDI®|HX technology from NewTek®, the JVC PTZ camera now offers a high-quality, low-latency IP video transmission standard that is ideal for streaming in an ever-evolving media landscape.

In addition to the NDI®|HX functionalities of the 4K KY-PZ400NWU, the camera includes SRT, HTTP, RTSP, RTMP/RTMPS, and standard protocols. With SRT open-source technology now becoming synonymous with JVC cameras, PTZ users are afforded a truly future-proofed solution with continual firmware updates.

The advanced streaming capabilities of the incorporated SRT technology adds automatic repeat request (ARQ) and forward error correction (FEC) to prevent packet loss typically found on internet connections. It also offers stream encryption for content protection.

Additionally, with the incorporated Vertical Interval Time Code (VITC) with Network Time Protocol (NTP), the new JVC PTZ camera also feature multi-camera synchronization for live event production. This feature is ideal for the mixing and streaming of concerts, shows, sports, and other live productions where image synchronization is crucial. Remote control capabilities are made possible through the JVC RM-LP100 Remote Camera Controller, KM-IP6000/4000 Live IP Production Suites, or a variety of other options from vMix, OBS Studio, and NewTek.

Equipped with a 4K 1/2.5-inch progressive scanning CMOS image sensor, the KY-PZ400N has a wide angle of view (approx. 26.4mm @35mm equivalence), 0.5 Lux of minimum illumination, and 16x digital zoom. The camera has HDMI and 3G-SDI, RJ45 with PoE, RS232, and RS485 interfaces standard.
