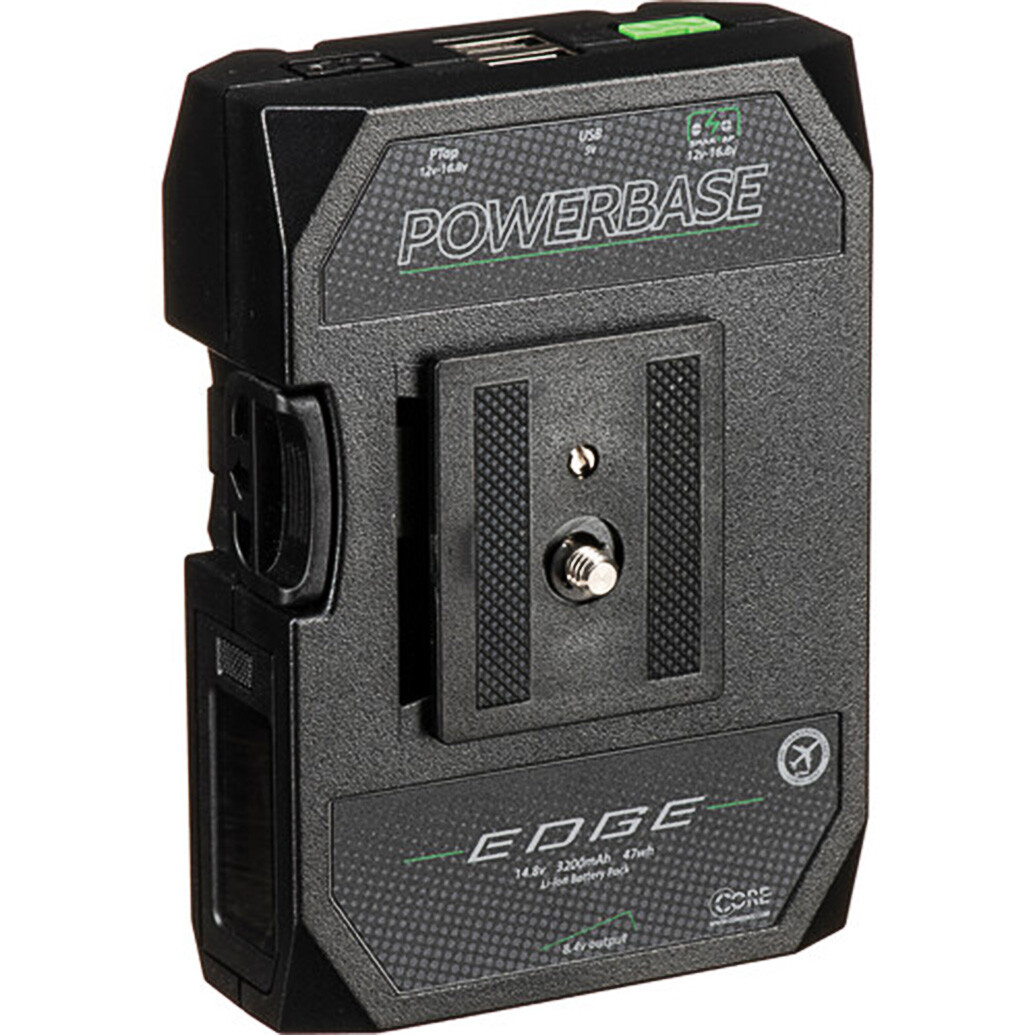

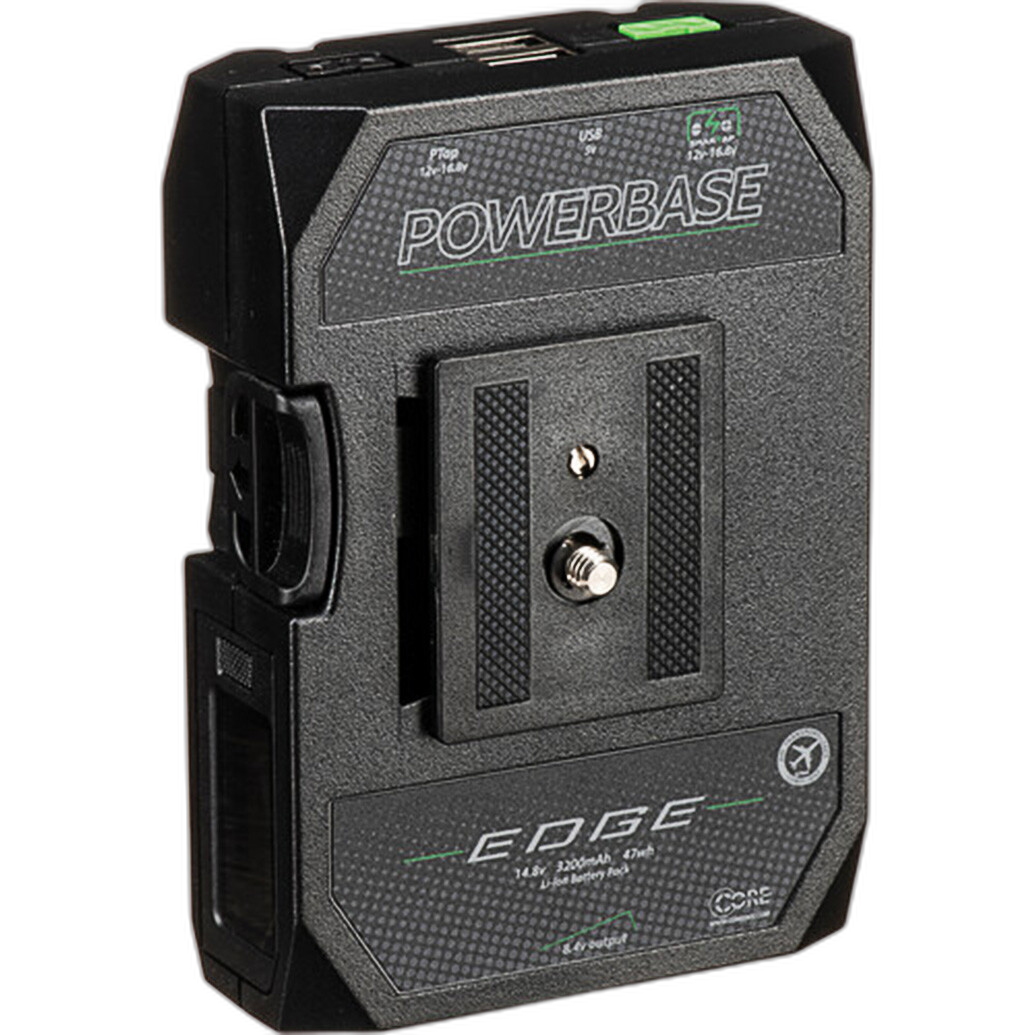

Core SWX Powerbase EDGE V-Mount Battery

Core SWX
Product #:
Manufacturer #:
  • 14.8V, 47Wh, Lithium-Ion V-Mount Battery
  • 8A Continuous Draw
  • 7.4V Regulated DC Output
  • 2 x 14V D-Tap Outputs, Can Use to Charge
  • SmartTap Output Carries Battery Data
  • 2 x 5V USB Power Outputs
  • Runtime LCD, Button-Activated Backlight
  • Quick Release Plate with 1/4"-20 Screw
  • Use with Core SWX V-Mount/D-Tap Charger
  • Travel-Safe Storage Mode
  • Compatible with┬áCore SWX FLEET Quantum 4-Position Charger w/ Touchscreen Color LCD (V-Mount)
14.8 VDC
Our Price: $199.00

Earn 398 U-REWARDS Loyalty Points

Usually Ships in 7-14 days.

Pickup unavailable at Fairfield, NJ

Alert icon Alert me when this item is in-stock

No sales tax outside of New Jersey

Free Shipping (Continental US Only)

Free Shipping

We offer Free Shipping (7-10 Day delivery) for this item when ordered through our Web Site.

Free shipping is for the 48 Contiguous States only (PO Boxes, FPO/APO, Hawaii, Puerto Rico, Alaska, and Guam excluded).

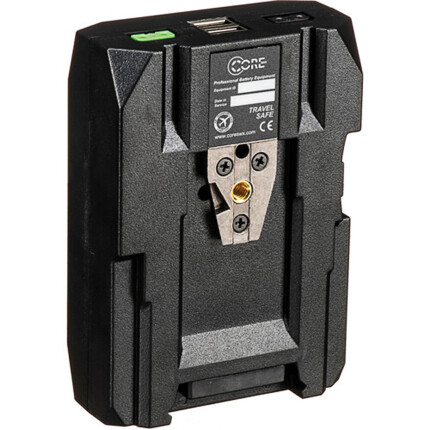

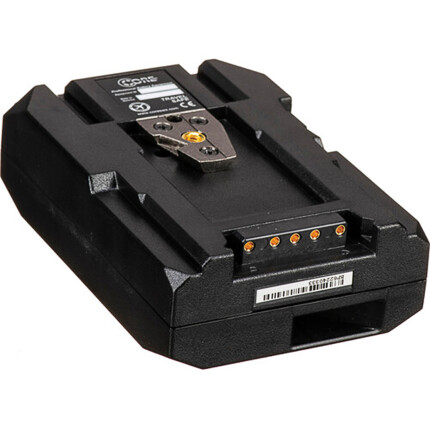

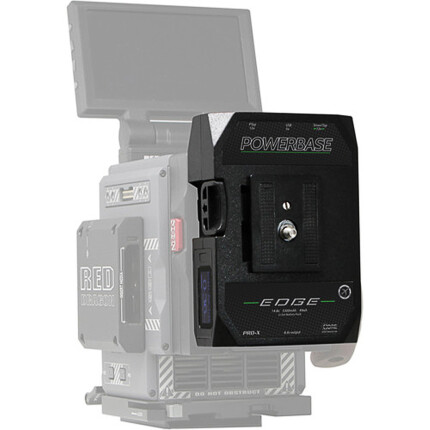

The Core SWX Powerbase EDGE in a V-mount is a 14.8V, 49Wh, lithium-ion battery featuring an 8A continuous draw. This follow-up to the popular Powerbase 70 battery offers multiple modes of use. In addition to the V-mount, which allows it to be used with all cameras supporting a V-mount battery, the Powerbase EDGE has an 8.4V regulated DC output, a D-Tap output, a SmartTap output, and two USB ports.

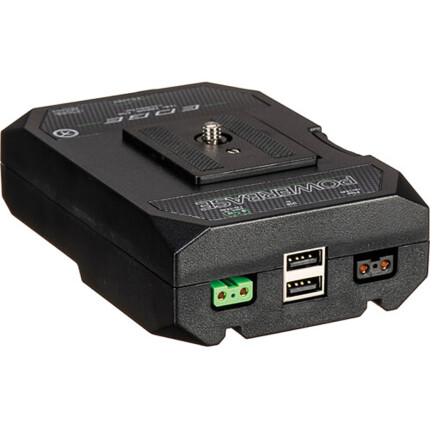

Using the appropriate Powerbase EDGE power cable (sold separately), you can connect the battery to most mirrorless and DSLR cameras via the 8.4 VDC output. The SmartTap output, which is a Core SWX innovation, is a standard D-Tap connection with additional contacts inside that communicate SMBUS/smart battery data to compatible cameras. Other than this, it works just like a regular D-Tap port and supports standard D-Tap cables. Accordingly, you can use either the SmartTap or D-Tap port to power a camera using an optional D-Tap cable. The remaining one can be used to power an accessory, and likewise the USB ports can be used simultaneously with any of the other power options to power 5V accessories or charge mobile devices. The D-Tap port also functions as a charging port and supports D-Tap chargers such as the Core SWX PB70C15.

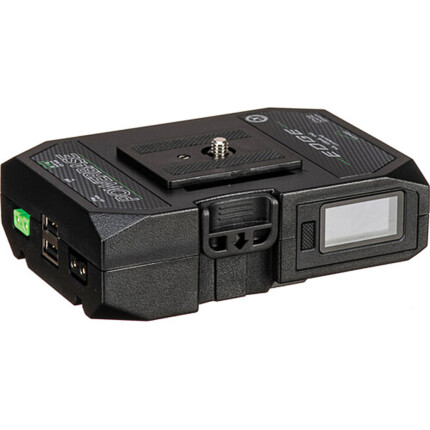

The Powerbase EDGE has an LCD on the side that provides runtime in minutes. Located on the side, it's easy to check on and read during production. Moreover, a button-activated backlight allows you to see it clearly in dark environments.

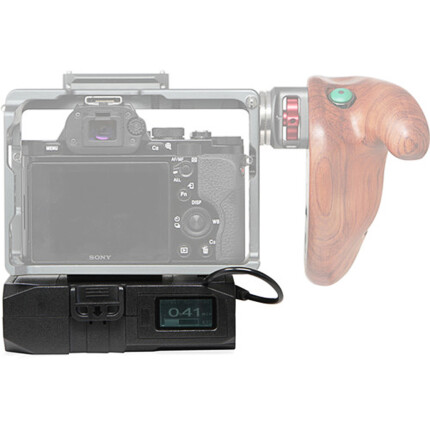

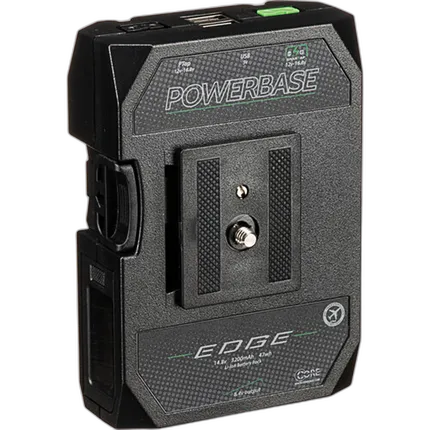

Like the Powerbase 70, the Powerbase EDGE comes with a small quick release adapter that provides a convenient way of attaching the battery to cheese plates and other camera supports. It secures onto the middle of the battery and provides a 1/4"-20 mounting screw. If, for example, you're looking to power your camera using the battery's D-Tap port, the quick release adapter provides a convenient way of attaching the battery to your rig in order to do that.

Product Reviews

There are no reviews for this product.

Write a review


Core SWX
Physical Specifications
Dimensions: 5.1 x 3.6 x 1.6"
The measurements of an object.

View All Attribute Definitions

Battery/Charger Attributes
Battery Capacity: 49 Wh
Weight: 1.3 lbs / 0.59 kg
Compatible Charger: Core SWX GPM-X2S Mini Dual Travel Battery Charger (V-Mount)
Voltage: 14.8 VDC
Connector: 2 x D-Tap Input/Output 14 VDC Regulated | 2 x USB Type-A Output 5 VDC Regulated | 1 x 2.5 mm Barrel Output 7.4 Regulated
Power System
Battery Type: Lithium ion
Battery Type:
The type of battery for a device. Some cameras use single use alkaline while others use rechargeable lithium batteries.

View All Attribute Definitions

Brand: Core SWX

In The Box

  • Core SWX Powerbase EDGE V-Mount Battery
  • Quick Release Plate
