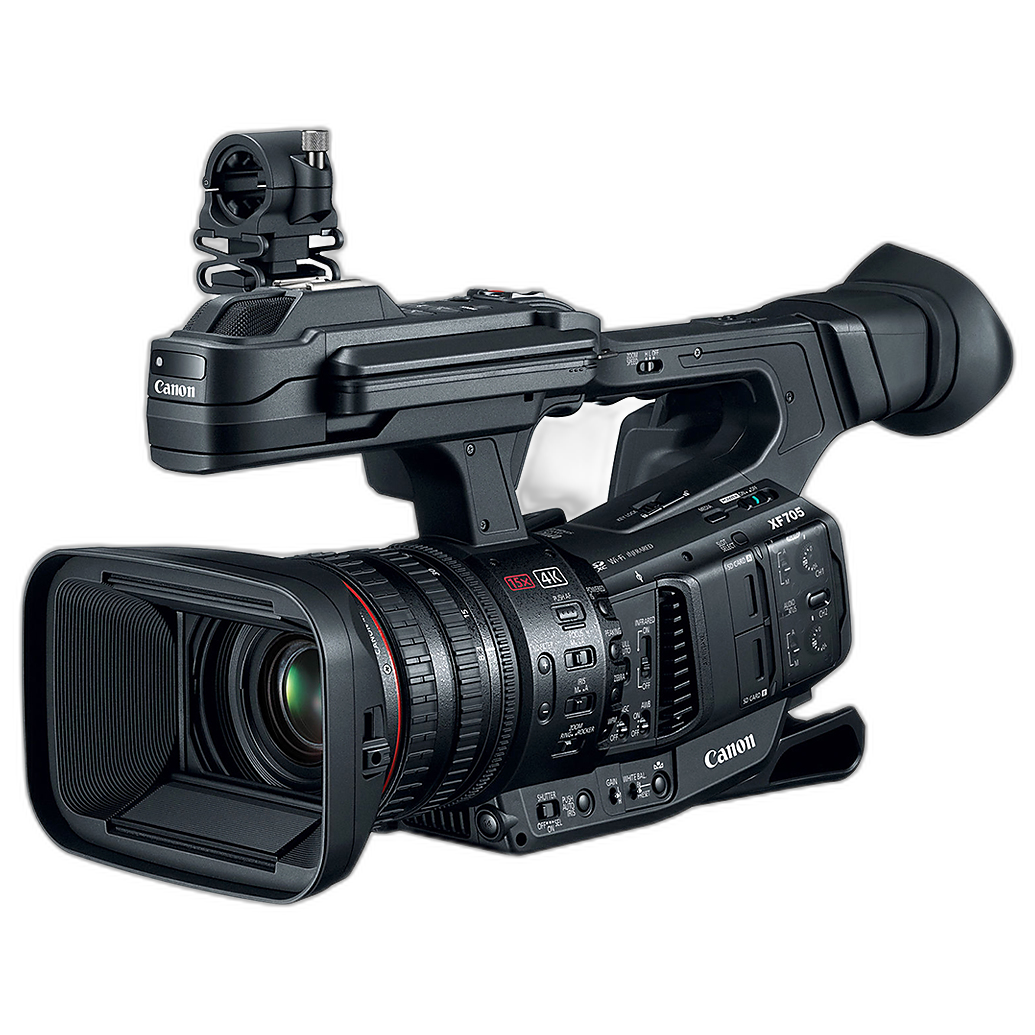

Canon XF705 4K 1in Sensor XF-HEVC H.265 Pro Camcorder
Key Features
- 13.4MP with a 1" CMOS Sensor
- H.265/XF-HEVC Premiere Pro/FCP X Support
- UHD 4K up to 60fps and 1080p to 120fps
- 15x Optical Zoom with 30x Digital Zoom
- Dual-Pixel CMOS Autofocus Feature
- 4:2:2 10-Bit Color
- 12G-SDI and HDMI Outputs
- HDR Recording, Canon Log3, and Wide DR
- Optical and Digital Stabilization
- Dual XLR Inputs with 4-Channel LPCM Audio
OVERVIEW
Canon's XF705 4K 1" Sensor XF-HEVC H.265 Pro Camcorder captures up to UHD 4K60 4:2:2 10-bit video in a compact, ergonomic package. With the addition of H.265/XF-HEVC compatibility in Adobe Premiere Pro 14.0 and Apple Final Cut Pro 10.4.7, XF705 users can now benefit from greater compression and lower bit rates, especially when filming and finishing in 4K. The XF705 is designed for portability and is ideal for documentary, ENG, events, and sports capture. Its 1" CMOS sensor and twin DIGIC DV 6 processors produce images with exceptional sensitivity and low noise. 1080p speeds up to 120 fps, 12G-SDI and HDMI 2.0 outputs, integrated ND filters, and dual XLR audio inputs are among the camera's capabilities.
Brand
lens specification
| Lens Min. Focus Distance | Entire Zoom Range: 2.0' (60.0cm); Wide: 0.4" (1.0cm) |
| Lens Filter Size | 58 mm |
| Elements / Groups | 18 / 14 |
| Maximum Aperture | f/2.8 to 4.5 |
| Optical Zoom | 15x |
| Digital Zoom | 15x |
detailed specifications
| Image Sensor | 1-Chip 1" CMOS Sensor |
| Connectors | Video 1 x HDMI (HDMI 2.0) Output, 1 x BNC (12G-SDI) Output; Audio Connectors: 2 x 3-Pin XLR Input, 1 x 1/8" / 3.5 mm Stereo Input, 1 x 1/8" / 3.5 mm Stereo Headphone Output |
| Max. Power Consumption | 21.5 W |
| Minimum Illumination | 3 lux at 1/30 Shutter Speed; 2.5 lux at 1/25 Shutter Speed |
| Image Stabilization | Optical; Digital |
| Mounting Threads | 1/4"-20 Female, 3/8"-16 Female |
lens
| Focal Length | 8.3 to 124.5mm |
physical specifications
| Weight | 6 lb (2710g) |
| Dimensions | 17.05 x 10.16 x 7.52" (433 x 258 x 191mm) With Protrusions; 14.88 x 8.27 x 6.38" (378 x 210 x 162mm) Without Protrusions |
| Color | Black |
power system
| Battery Type | Canon BP-A Series |
a/v mode
| Audio Recording | 4-Channel 24-Bit 48 kHz LPCM Audio |
focus control
| Focus Control Type | Autofocus; Manual Focus |
display & viewfinder
| Screen Size | 4.0" |
| Display Type | LCD |
| Monitor Resolution | Display: 1,230,000; EVF: 1,770,000 |
imaging & exposure control
| White Balance | 2000 to 15,000K |
detailed specs
| Sensor Resolution | 4268 x 3148 (13.4 MP) |
a/v details
| Recording Media | 2 x SDXC Card Slots |
- Canon XF705 4K 1 Sensor XF-HEVC H.265 Pro Camcorder
- Lens Hood with Barrier
- Lens Cap
- Microphone Holder with Screw
- AC Cable
- BP-A30 Battery Pack For EOS C300 Mark II, C200, and C200B
- CG-A20 Battery Charger
- WL-D6000 Wireless Controller with Battery
- Eyecup
- Handle
- Shoulder Pad
- SS-1200 Shoulder Strap
- CA-CP200L Compact AC Power Adapter
No creators have tagged this product yet.
Articles featuring this product
Canon EOS R5 C vs Sony a7S III: High-End Hybrid Cameras for Professional Video Work
Apr 26, 2026
·
Unique Photo
You may also like
Atomos Ninja V 5in 4K HDMI Recording Monitor
- Atomos Ninja V 4K HDMI Recording Monitor
- With Master Caddy II

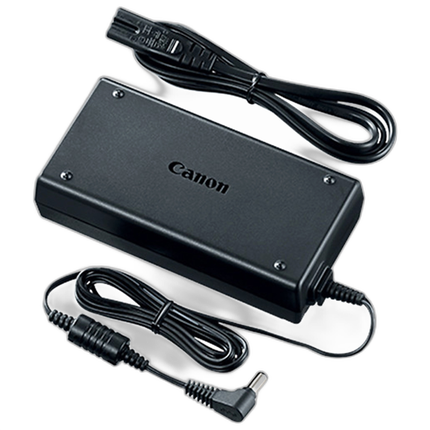

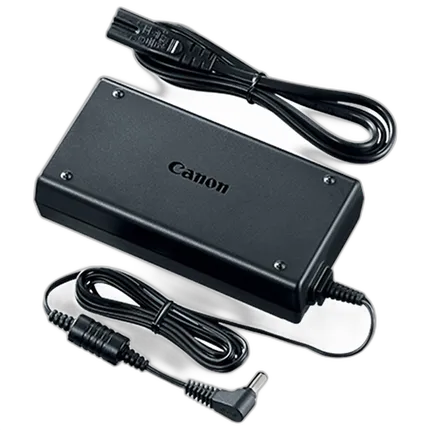

Canon CA-CP200L Compact AC Power Adapter
