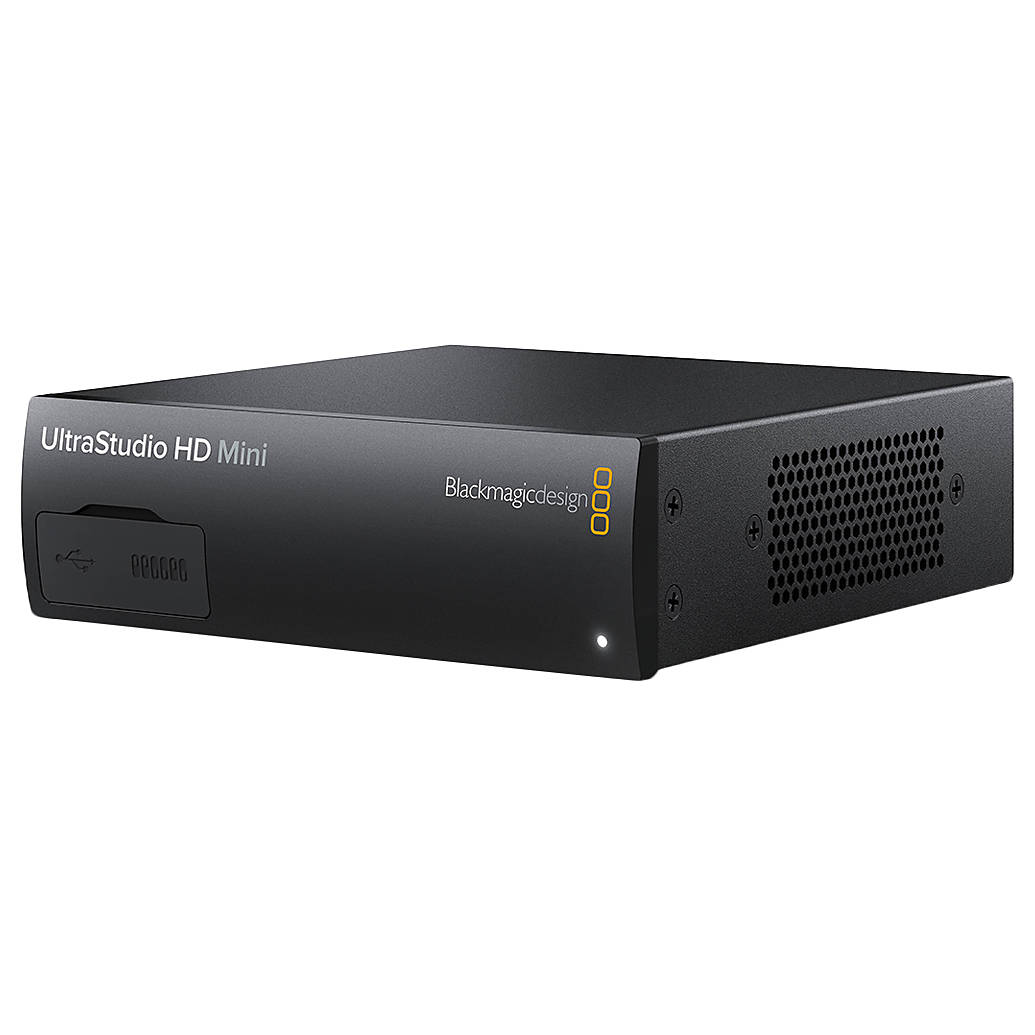

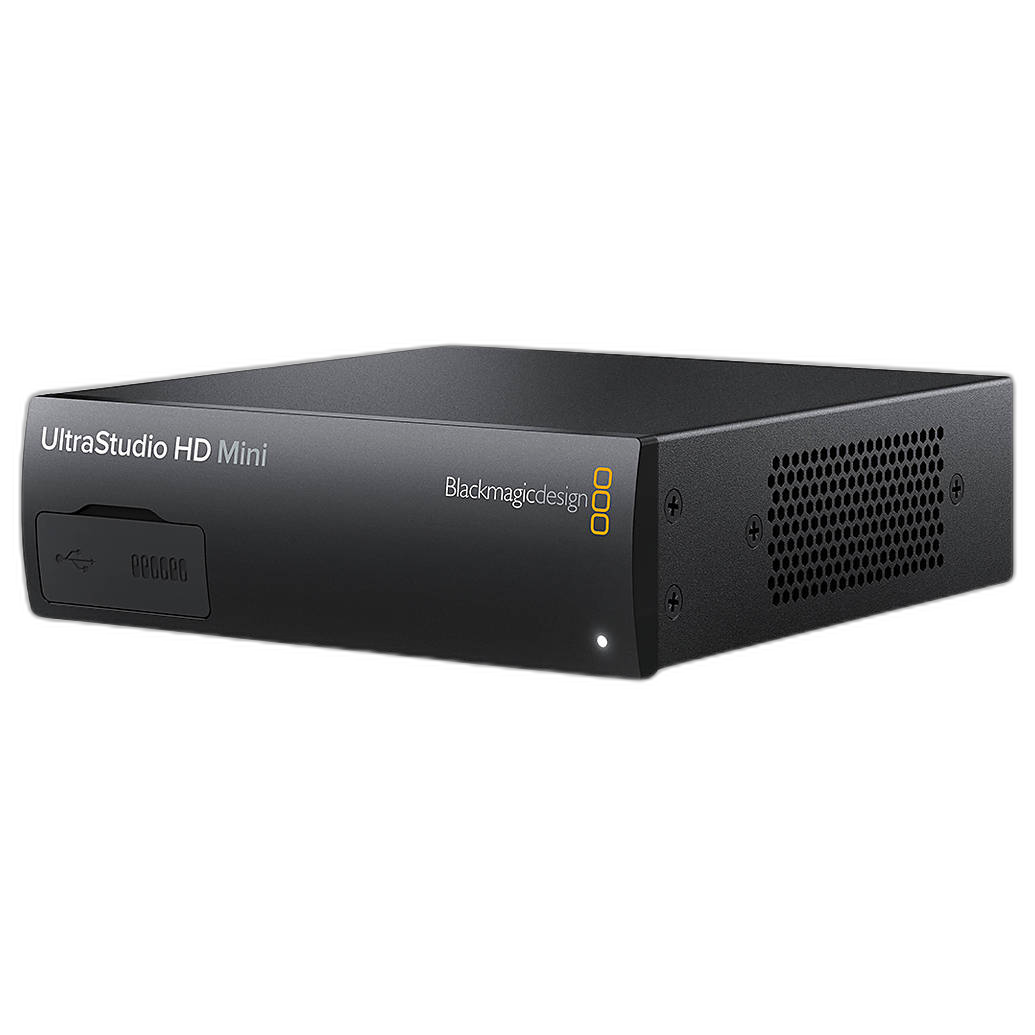

Blackmagic Design UltraStudio HD MinI
Key Features
- Blackmagic Design UltraStudio HD Mini
- For digital and analog video sources
- Thunderbolt 3 interface
- HDMI and Dual SDI outputs
- SD and HD support
- 4:2:2 and 4:4:4 color sampling
- HD to SD down conversion
- Color space conversion
- RS-422 deck control
- DaVinci Resolve, Fusion software support
Overview
The Blackmagic Design UltraStudio HD Mini is designed to handle the heavy load of high-resolution videos during post-production. You can connect current-generation or legacy video equipment to the UltraStudio HD Mini. It has a Thunderbolt 3 interface that makes the UltraStudio HD Mini transfer and receive SD or HD videos of up to 1080p at 60 fps. The UltraStudio HD Mini also supports embedded audio up to 16 channels. You can use the SDI outputs to perform fill and key. With the HDMI output, the video signal can be sent to consumer displays. Thanks to the built-in RS-422 connection, the UltraStudio HD Mini can be used with professional broadcast decks. You can use your editing software to add effects in real-time.
Brand
detailed specifications
| Type of Outputs | 2 x BNC, SD/HD/3G-SDI; 1 x HDMI Type A |
| Type of Input Connector | 1 x BNC, SD/HD/3G-SDI; 1 x 3BNC, component/composite analog video; 1 x BNC, Reference Input for Tri-Sync or Black Burst; 2 x 1/4" TS, analog audio |
physical specifications
| Dimensions | 5.5 x 6.7 x 1.75" (14 x 17 x 4.4 cm) |
| Weight | 1.3 lb (544 g) |
| Color | Black |
a/v mode
| Video Resolution | 2048 x 1080 23.98/24/25; 2048 x 1080PsF 23.98/24/25; 1080p 23.98/24/25/29.97/30/50/59.94/60; 1080PsF 23.98/24/25/29.97/30; 1080i 50/59.94/60; 720p 50/59.94/60; NTSC; PAL |
system requirements
| Operating system | Apple Mac OS X 10.11 El Capitan or later Microsoft Windows 7/8.1/10 (64-bit only) Linux |
hardware & software data
| Environmental Conditions | Operating Temperature: 32 to 104°F (5 to 40°C); Storage Temperature: -4 to 113°F (-20 to 45°C); Humidity: 0-90%, non-condensing |
recording data
| Color Space | REC 601, REC 709 |
interface
| Audio Output | 16 channels via SDI, 2 channels via HDMI |
- Blackmagic Design UltraStudio HD MinI BDLKULSDMINHD
- DaVinci Resolve SD Card
- SD Card with Software and Manual
