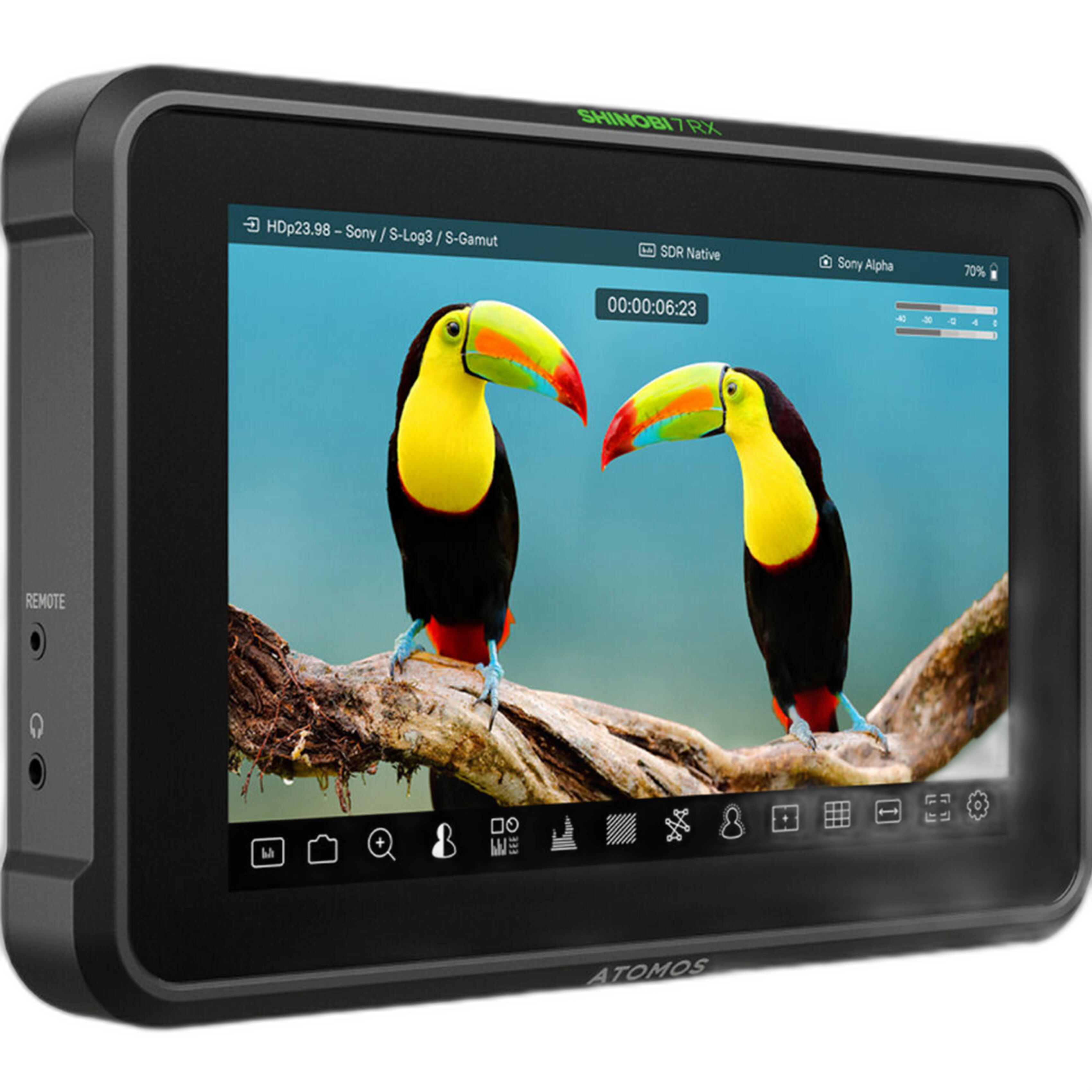

Atomos Shinobi 7 RX Monitor
Key Features
- 7-inch HDR screen with a peak brightness of 2200nits
- Professional monitoring tools include EL Zone/ARRI false color, histogram, waveform, zebra, focus peaking
- HDMI / 3G-SDI input and output
- Camera control over USB-C
- Touch to focus
- Integrated 5G Wi-Fi for low latency (<60ms) receive from Atomos TX
- Stunning 10+ stops of dynamic range in real-time from Log/PQ/HLG signals
- Dual NPF battery slots
OVERVIEW
Shinobi 7 RX camera monitor & receiver combines a larger 7-inch HDR screen with a calibrated peak brightness of 2200nits and the lightweight monitor functions of Shinobi. Can be used in the brightest of environments to monitor signals up to 4Kp60 via HDMI or HDp60 via 3G-SDI.
Camera Control
Take control of Canon, Fujifilm, Nikon, Panasonic, and Sony cameras via USB-C, plus Z CAM cameras via optional USB-C to serial cable.
Connectivity
The addition of Wi-Fi connectivity provides a stable link between the Shinobi 7 RX and the TX component of Atomos’ TX-RX wireless video system, or a RTSP H.264 stream. An ideal director’s monitor, focus puller’s monitor, program or preview display for video switchers.
Brand
detailed specifications
| Type of Outputs | 1x HDMI 2.0 Loop Output | 1x BNC (3G-SDI) Output |1x 1/8" / 3.5 mm Headphone Output |
| HDMI Terminal | 1x HDMI 2.0 Input | 1x HDMI 2.0 Loop Output |
| Power Requirements | 6.2 to 16.8 VDC |
| Material | Plastic |
| Compatible Media | Single Slot: SD/SDHC/SDXC [LUT/Firmware Update Only] |
| Mounting Threads | Top 1x 1/4"-20 Female | Bottom 1x 1/4"-20 Female |
physical specifications
| Weight | 1.3 lb / 580.00 g |
| Dimensions | 7.8 x 5.2 x 1.5" / 198 x 133 x 39 mm |
| Color | Black |
power system
| Battery Type | 2x L-Series Mount on Fixed Plate |
interface
| Audio Output | 1x 1/8" / 3.5 mm Headphone Output |
display & viewfinder
| Screen Size | 7" |
| Display Type | IPS-Type LCD |
| Monitor Resolution | 1920 x 1200 |
a/v mode
| Audio Input | 1x 1/8" / 3.5 mm Line Input |
monitor specifications
| Touchscreen | Yes |
| Maximum Brightness | 2200 nits / cd/m2 |
| Bit-Depth / Color Support | 1.07 Billion Colors (10-Bit) |
| Color Gamut | 100% Rec. 709 |
camera attributes
| Aspect Ratio | 16:10 |
battery/charger attributes
| Compatible Battery | L-Series |
- Atomos Shinobi 7 RX HDMI/SDI HDR Monitor
- 2 x Antenna
- Antenna Tip Set (Back, White, Yellow, Green, Red)
- 2 x Antenna Cap
- USB-C 2.0 Cable (3.3')
- Limited 1-Year Manufacturer Warranty
- Registration Extension: 1-Year
