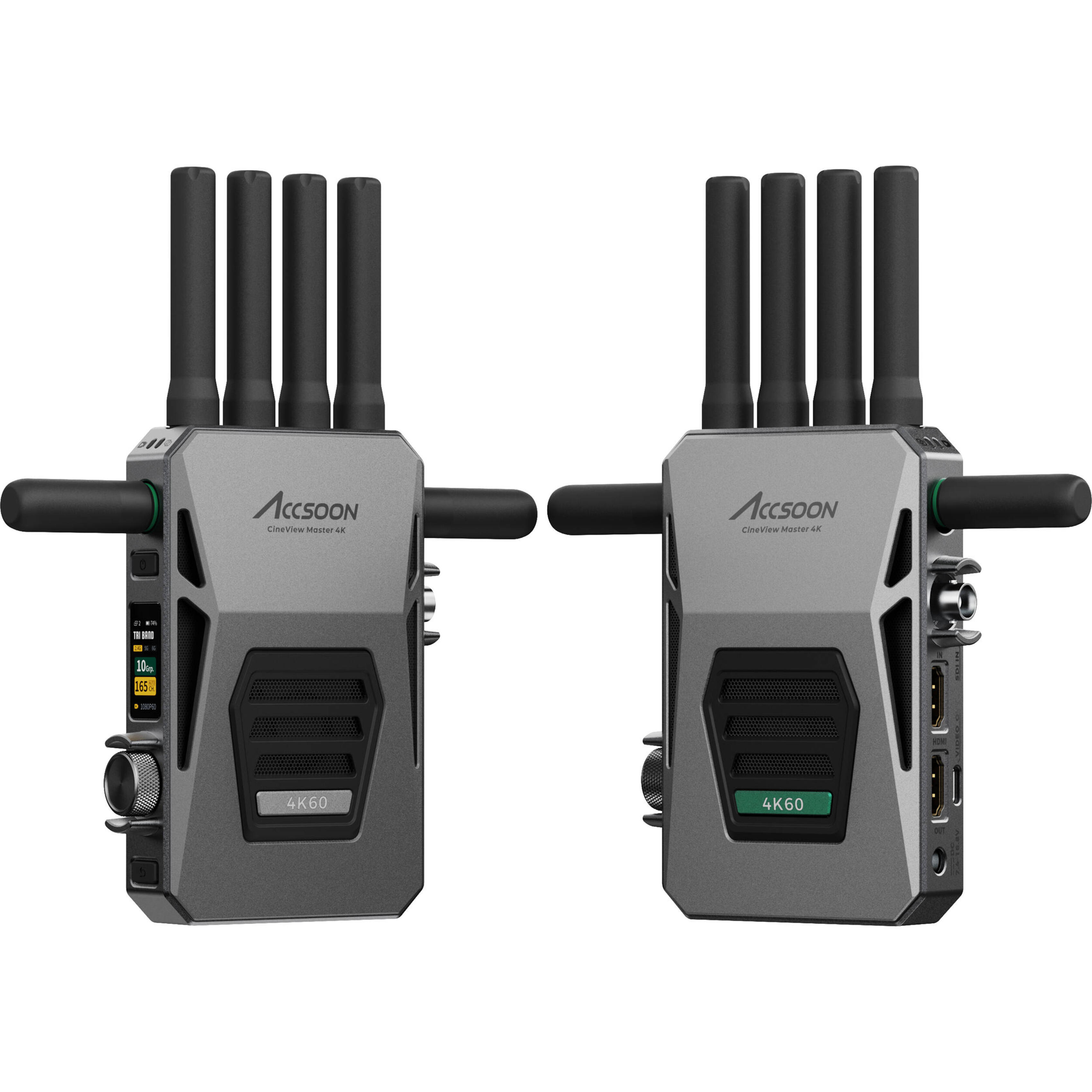

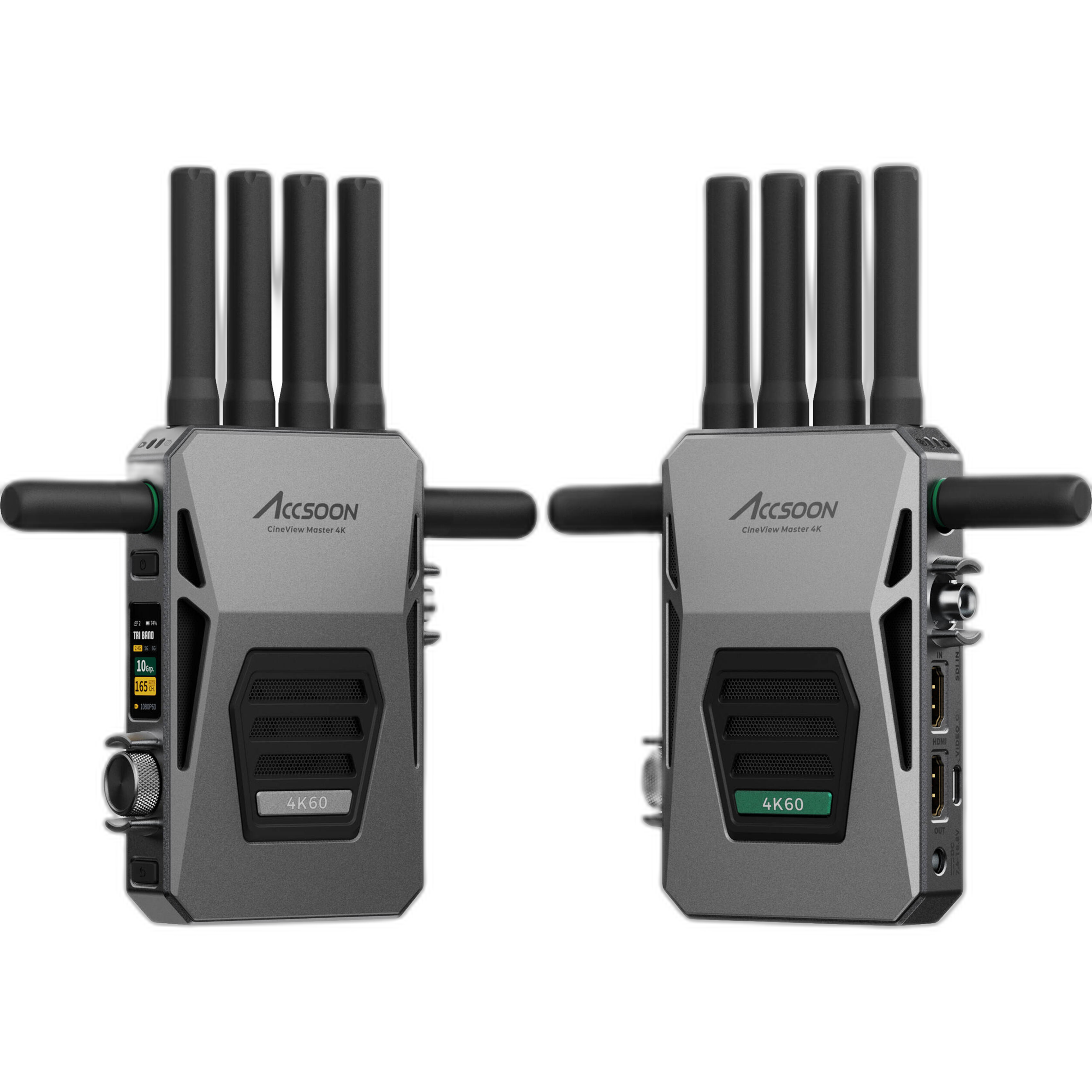

Accsoon CineView Master 4K

OVERVIEW

This CineView Master 4K SDI/HDMI Wireless Video Transmission System from Accsoon helps facilitate wireless UHD 4K video transmission with improved user interface and greater range than previous models. Send UHD 4K60 video up to 1.6 miles from the transmitter to the receiver unit with only a 35 ms delay. Wired connections on the receiver include 3G-SDI and HDMI output ports. Wired connections on the transmitter include 3G-SDI and HDMI input ports, HDMI loop output, and USB-C video output for your iOS devices.

Tri-Band Frequency Transmission

The CineView Master 4K boasts the RTMS 4.0 protocol, which integrates 2.4, 5, and 6 GHz frequencies. Intelligent dynamic adjustment of audio and video data goes across all three bands for faster connection times, lower latency, and easy management of multiple connections. With the new 6 GHz frequency, the CineView Master 4K unlocks 14 new channels and gigabit network speed.

Extended Long-Distance Transmission

Both receiver and transmitter units can communicate up to 1.6 miles away, thanks to their tri-band technology and hardware design.

Versatile Wired & Wireless Connections

The 3G-SDI and HDMI connections on the receiver can output video to a production monitor on set with stable, high-quality transmission for smooth on-site monitoring. Use the Accsoon SEE app to wirelessly monitor your system. The transmitter has a 3G-SDI input, HDMI input, and HDMI loop output port. A direct USB-C video output on the transmitter communicates directly with your iOS device. It can charge the connected device simultaneously and share your creations to Frame.io through Camera to Cloud integration.

New User Interface

An improved user interface makes for easy creative control over your stream, video settings, LUTs, WiFi, and other advanced settings using the SEE app.

8K Processor

A new high-performance A/V processor with 8K capabilities works in tandem with the RTMS 4.0 protocol for a 400% increase in processing capabilities over previous models. The system can easily create synchronized multi-video streams via tri-band technology.

Intelligent Heat Dissipation

Toggle between three different fan modes depending on the needs of your production. Standard mode allows for peak fan speeds for outdoor applications, quiet mode reduces the fan speed for studio setups, and off mode turns the fan off when you cannot risk the noise interfering with your production.

Multiple Power Options

Both units support power from both DC input and L-series batteries. There is also the option to add a separately available V-mount battery adapter.
