Zoom Podtrak P8 Podcast Recorder

4.3" Color LCD touchscreen display. Select from English, French, German, Italian, Spanish and Japanese
Record up to 13 tracks simultaneously
Six mic inputs with XLR connectors and optional phantom power
Individual volume sliders, mute buttons and “on air” indicators for each channel
Dedicated channel for recording remote interviews
Mix-Minus function automatically prevents echo and feedback from callers phone
Nine assignable Sound Pads with four banks
13 pre-loaded sounds including applause, laugh track and more
Six headphone outputs with individual volume controls let everyone hear clearly
Onboard editing
2-input, 2-output USB audio interface
Class-compliant mode for iOS compatibility
Battery power provides up to two hours of use with four AA batteries
Up to two hours of use with four AA batteries or use the included AD-14 AC power adapter
Records directly to SD, SDHC and SDXC cards up to 512GB
16-bit /44.1kHz audio in WAV format
Optional BTA-2 Bluetooth Adapter enables wireless call recording

Compatible Media:: 4 GB – 32 GB cards compatible with the SDHC specification (class 10 or higher)
64 GB – 512 GB cards compatible with the SDXC specification (class 10 or higher)

Compatible Media:: A storage medium that is compatible with your portable device, in a form that can easily be removed or accessed by a PC such as a type of memory card that is compatible with your camera.

overview

PODCASTING SIMPLIFIED

The Zoom PodTrak P8 is easy to use and can handle the most ambitious podcasts. With all the functions you need to record, edit and mix, the PodTrak P8 is your complete podcast studio.

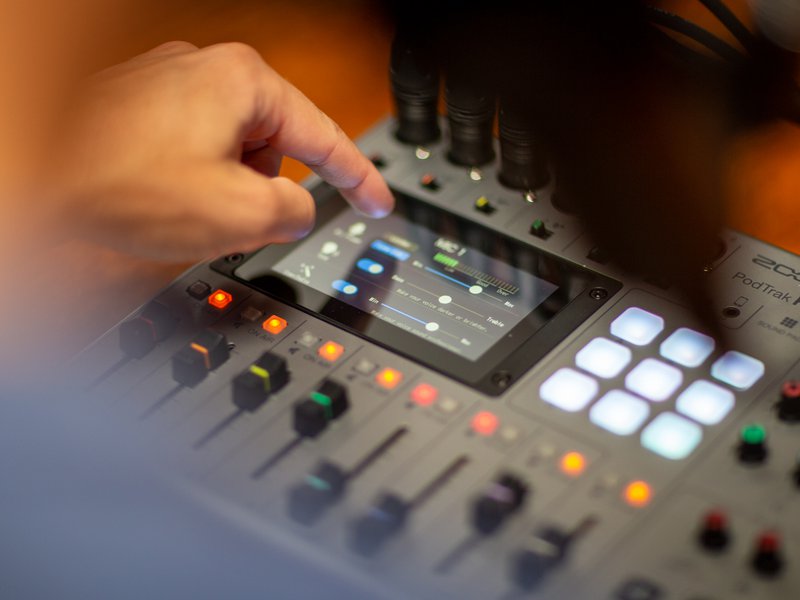

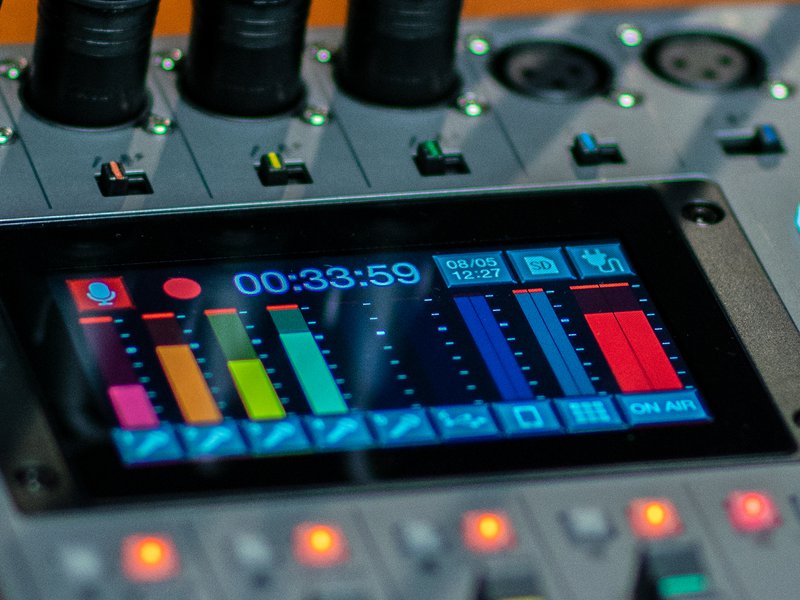

TOUCHSCREEN CONTROLS

The color touchscreen interface makes monitoring, adjusting and onboard editing seamless. Everything you need is a touch away.

P8 Touchscreen Controls

Mic Preamp Slider

The Mic Preamp Slider allows you to dial in the level or gain of each mic. Make adjustments until the signal is peaking in the “Good Range”. Peaking in the “Over Range” section can cause distortion in your sound.

Limiter

The Limiter is used to prevent distortion if the volume suddenly gets too loud.

Low Cut

The Low Cut reduces low frequency noise that is present in almost any recording environment, whether it’s air conditioning, street sounds, vibrations, and other sources.

Tone Adjustment

The Tone Adjustment can make your voice darker or brighter, for that perfect podcast voice.

Compressor/DeEsser

Compressor/DeEsser enables your voice to have more presence for that perfect studio podcast sound.

Noise Reduction

In the On Air screen select Noise Reduction to decrease background noise by automatically turning down the mic levels for tracks not in use.

IT SPEAKS YOUR LANGUAGE

The P8’s touchscreen display can be set to any one of six languages. Choose from English, French, German, Spanish, Italian or Japanese.

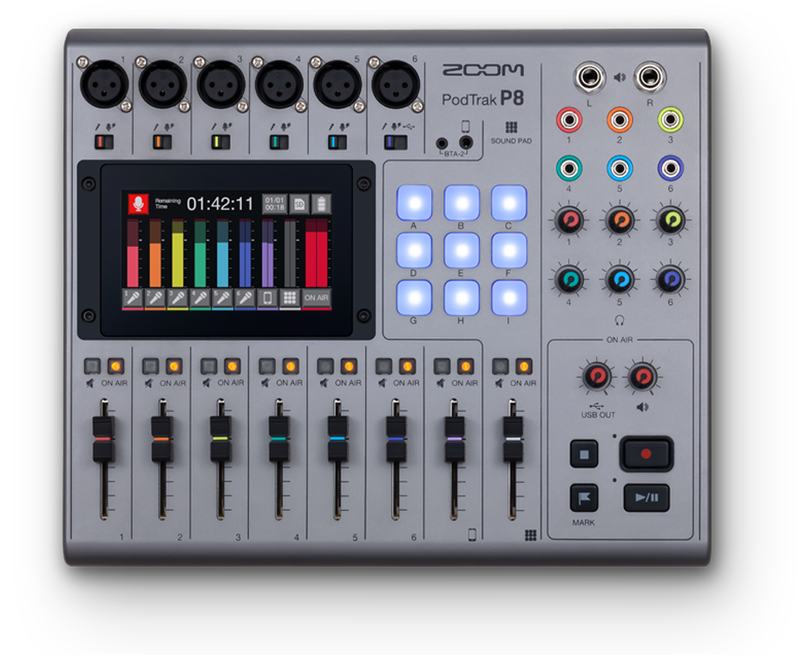

COLOR-CODED

The P8’s color-coded inputs, outputs, and controls make on-the-fly adjustments a breeze, keeping you focused on the discussion.

TAKE YOUR STUDIO WITH YOU

When recording outside the studio, the P8 provides up to two hours of recording with four AA batteries, or connect a USB power supply for extended use.

Product Reviews

There are no reviews for this product.

Write a review

Specifications

Brand
Zoom

Detailed Specifications
LCD Screen:	4.3" (480×272) full-color touchscreen LCD
LCD Screen: The brand or type of LCD (Liquid Crystal Display) screen. These are usually found on the back of a camera. View All Attribute Definitions
Weight:	1.43 kg
Overall Frequency Response:	-1.0 dB: 20 Hz ~ 20 kHz @44.1 kHz
Overall Frequency Response: This is used to indicate the accuracy of electronic components or systems, primarily in audio equipment. View All Attribute Definitions
Compatible Media:	4 GB – 32 GB cards compatible with the SDHC specification (class 10 or higher) 64 GB – 512 GB cards compatible with the SDXC specification (class 10 or higher)
Compatible Media: A storage medium that is compatible with your portable device, in a form that can easily be removed or accessed by a PC such as a type of memory card that is compatible with your camera. View All Attribute Definitions
Power:	4 AA batteries (alkaline, lithium, or rechargeable NiMH) AC adapter (ZOOM AD-14): DC 5 V/1 A (supports USB bus power)
Power: This is the type of power a device uses. View All Attribute Definitions

Connectors
Mic Input Gain:	0 + 70 dB
Mic Maximum Input Level:	+5 dBu (@0dBFS)
Smartphone Connection Jack:	TRRS mini jack (4 contacts, TIP: L, RING 1: R, RING 2: GND, SLEEVE: MIC)
Mic Input Impedance:	XLR:3 kO
Headphones:	3.5mm stereo mini
Mic Type:	XLR jacks (2: HOT)
Speaker Output:	TRS jacks (balanced)
Mic Phantom Power:	+48 V

Physical Specifications
Dimensions:	295 mm (W) × 248 mm (D) × 61 mm (H)
Dimensions: The measurements of an object. View All Attribute Definitions

Interface
Input channels:	Mic inputs: 6 (mono) Smartphone input: 1 (stereo)
USB:	Usb Type-c (Audio Interface And Mass Storage Functions).
Output channels:	2 (6 headphones and L/R speaker outputs)
