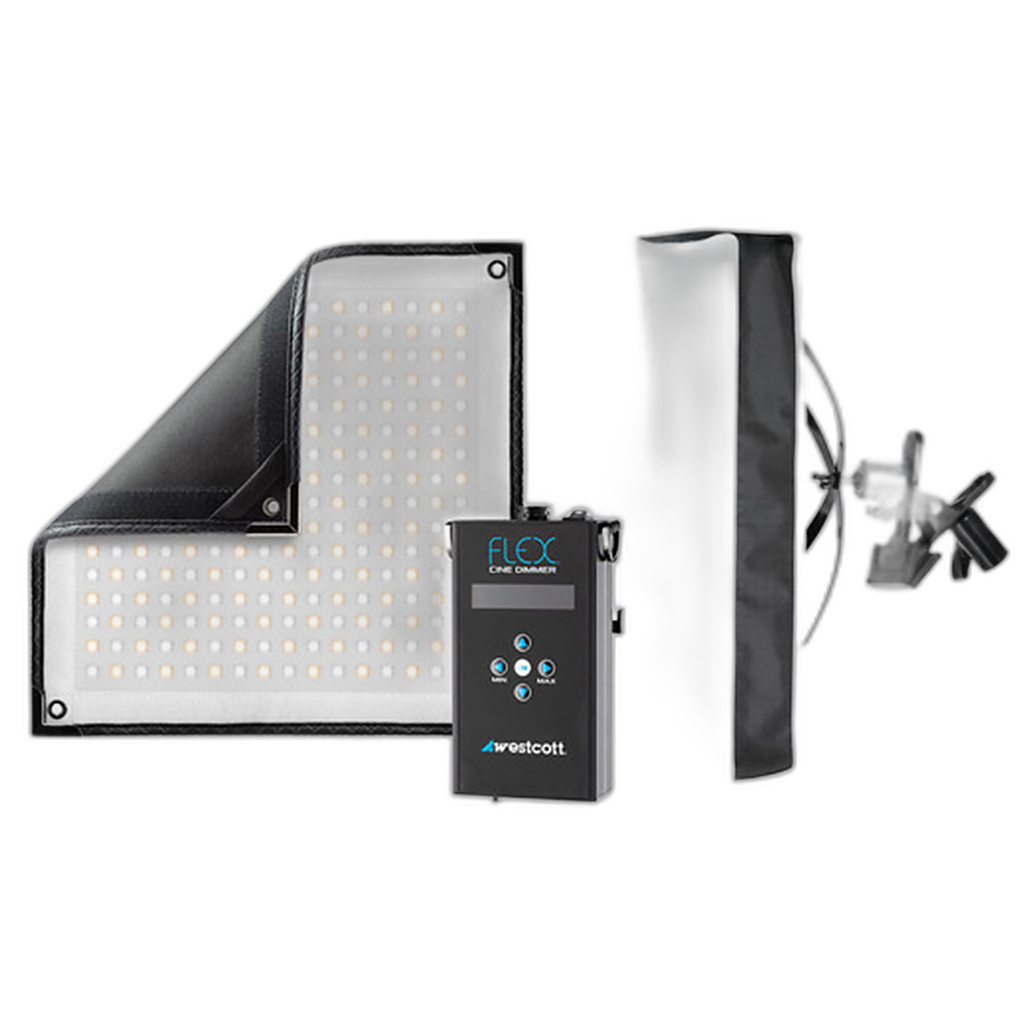

Westcott Flex Cine Bi-Color LED X-Bracket Kit 1 x 1 ft


Key Features
- Westcott Flex Cine Bi-Color LED X-Bracket Kit
- 1-Light, Flexible LED Kit
- 5600K Daylight Output
- 1 x 2 ft. LED Mat
- Mat Designed to Fit Into Tight Spaces
- Adjustable Color Temperature
- Impressive CRI of Up to 97 (TLCI up to 98)
- Powerful Output Up to 2200 Lux at 1 Meter
- Metal Dimmer Dimmer Features Intuitive Local/WiFi Controls Via Mobile app
- Battery Type: Compatible With 14.4V to 26V V-Mount Batteries
- Mat Corners Equipped With Magnets/Grommets for Quick Hanging
- Includes X-Bracket Mount & 1/4-Stop Diffuser
- Water-Resistant IP64
- Compact Design
Available for Rent
OVERVIEW
The Westcott Flex Cine Bi-Color LED X-Bracket Kit is designed to meet the needs of filmmakers, by producing an outstanding quality of light, perfectly balanced at 5600K Datlight. The included Flex Cine LED mat features a compact design, with a thickness of only 1/3", and a weight of less than 3 lbs. Its compact, physical design makes it ideal for use in tight spaces, concealing during a shoot, & good for storage and travel.
The Flex Cine LED mat features an adjustable light spread, up to 360 degrees, & is designed with built-in mounting options. The mat is designed with "hook-&-loop" edging, as well as strong/magnetic corners, & metal grommets for hanging the mat.
The Flex Cine Bi-Color LED mat is able to produce a brighter output than some of the other LED mats on the market, by offering a great quality of light with accurate output up to 97 CRI (98 TLCI). It also offers a flicker-free performance, up to 960 fps (frames per second).
The Flex Cine LED mat connects to a Flex Cine Dimmer, using heavy-duty cables that feature TE-9 pin connectors. The cables feature "Mat Sensing Technology", which allows the Flex Cine Dimmer to auto-detect which Flex LED mat is connected, enabling the ability to customize the available controls & specify the neccessary voltage to operate the light.
The Flex Cine Dimmer is specially designed to control both the Flex Cine Bi-Color mat, and Daylight mat, up to 1x2 ft. It can also be used with original Flex 1x1 ft. and 1x2 ft. LED mats via a legacy adapter cable (sold separately). This LED Dimmer also features a compact design, which features a heavy-duty/lightweight aluminum enclosure, making it secure for travel as well. The Dimmer can be mounted to a stand through its built-in 1/4"-20 thread, or hung with the removable d-ring shoulder strap. The Flex Cine Dimmer features on-board controls, which provides you with the ability to adjust the light intensity from 0-100% output. When it is paired with flexible bi-color LED mats, the dimmer is able to adjust the color temperature from 2800-6000K, and offers 4 customizable presets. The dimmer can be powered by an in-line AC Adapter (Included), Flex Cine Wireless DMX Dimmer AC Adapter (Sold Separately), 14.4-26V V-mount battery (Sold Separately), or D-Tap battery via D-Tap to D-Tap cable (Sold Separately).
Brand

detailed specifications
| Mounting Options | Mount Type: 1/4"-20 Female Thread |
| Other Features | Beam Angle: 140-360° |
| Other Features | Color Render Index (CRI): Up to 97 CRI |
| Other Features | TLCI: Up to 98 TLCI |
| Other Features | Diffusion Density: 1-Stop |
| Other Features | Operating Temperature: 14°-113°F / -10°-45? |
| Other Features | Lamp Life: 50,000+ hrs. |
| Other Features | Flicker Free: Yes |
| Other Features | Color Temperature (K): 2800-6000K |
| Connectors | USB Port: USB Type-C |
| Cable Length | Power Cord Length: 16 ft. |
| Power | Power Adaptor: 24V 120W |
| Power | Dimmer Max. Watts: 100W |
| Power | Watts: 55W |
power system
| Power Input | Dimmer Input Voltage: 14.4~26V |
| AC Adapter | Power Type: AC/DC |
| Power Distribution | Dimmer Output Voltage: DC 12~24V |
physical specifications
| Length | Length: 18.7" / 47.4 cm |
| Weight | Weight: 7.1 lbs. / 3.2 kg |
| Height | Height: 4.6" / 11.7 cm |
| Color | Color: Bi-Color |
| Width | Width: 12.5" / 31.8 cm |
power requirements & consumption
| Rated Voltage | Volts: 13-29V DC |
- Westcott Flex Cine Bi-Color LED X-Bracket Kit (1 x 1')
- Flex Cine Bi-Color Mat (1 x 1')
- AC Adapter
- Power Cord
- Dimmer
- Shoulder Strap
- Flex X-Bracket Mount for Flex 1x1' Mat
- 1/4-Stop Front Diffusion Cloth for Flex 1x1' X-Bracket Mount
- Cable Tie
