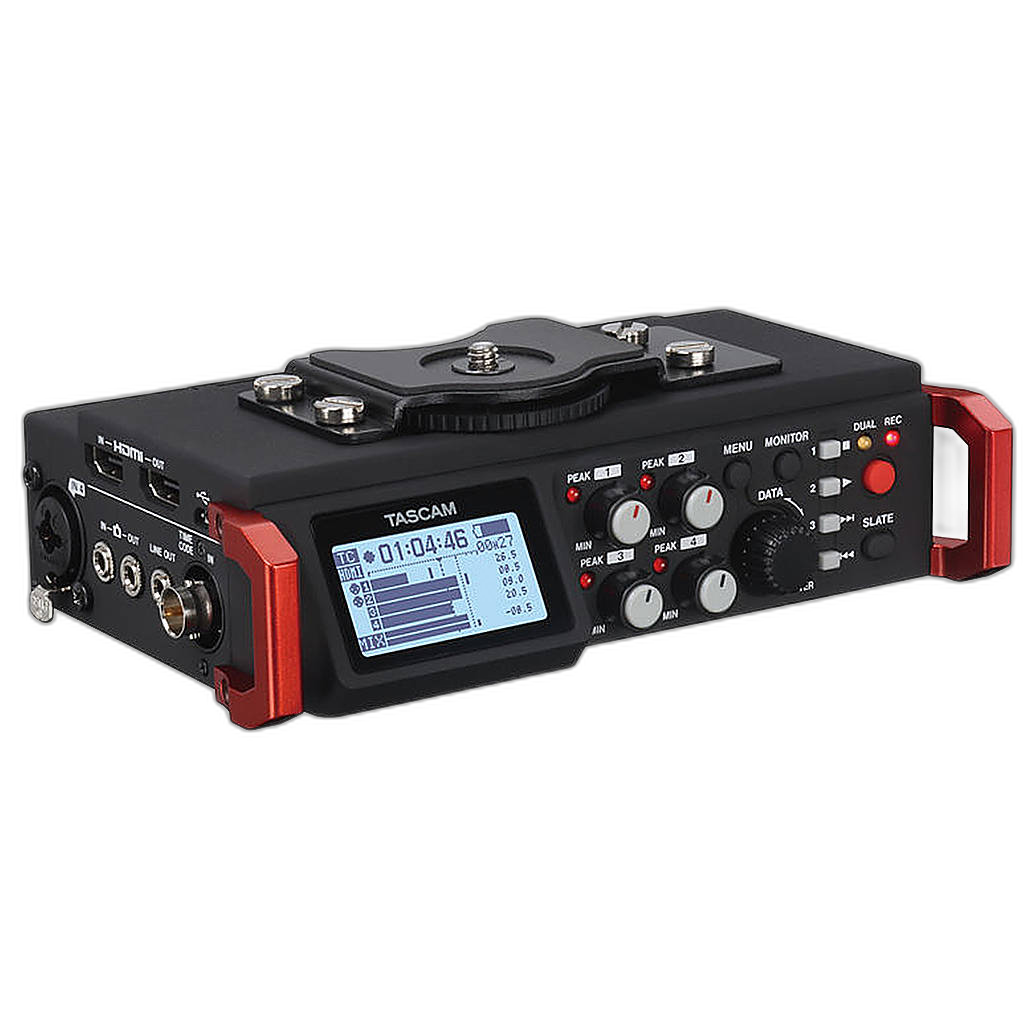

Used Tascam DR-701D 6-Track Field Recorder - Excellent

Key Features
- Tascam DR-701D 6-Track Field Recorder
- For DSLR cameras with SMPTE Timecode
- Dual inbuilt omnidirectional microphones
- Four XLR/TRS inputs with stereo mixer
- Cascade function
- BNC & SMPTE timecodes
- LCD screen with backlight
- 5-position low-cut filter
- SDHC/SD/SDXC memory card slot
- HDMI input & output ports
- Magnesium alloy chassis
- Runs on 4 AA batteries or USB bus power
Available for Rent
Overview
Lightweight, yet rugged, the Tascam DR-701D 6-Track Field Recorder for DSLR with SMPTE Timecode is an essential portable gadget for professional video productions. It is equipped with dual inbuilt omnidirectional microphones and four XLR/TRS inputs with a stereo mixer for recording up to six tracks at a time. Use the HDMI input and output ports for allowing your camera and the internal clock to be digitally synchronized. The Cascade function makes it possible to connect multiple units via the HDMI port for simultaneously starting and stopping a recording. The BNC timecode input either follows a source signal or is jam-synced at least a few times a day to perform an independent freewheel operation. You can store time data in your recorded audio files by using the SMPTE timecode. The magnesium-alloy chassis makes the Tascam DR-701D durable.
Brand
a/v details
| Recording Media | SD card (64 MB to 2 GB); SDHC card (4 to 32 GB); SDXC card (48 to 128 GB) |
| Recording Formats | WAV: 44.1/48/96/192 kHz, 16/24-bit; BWF: 44.1/48/96/192 kHz, 16/24-bit |
detailed specifications
| Signal-to-Noise Ratio | 100 dB or more (LINE IN or MIC IN to LINE OUT, 44.1/48/96/192kHz sampling frequency, JEITA) |
| Power | 4 AA batteries (Alkaline, NI-MH or lithium); AC adapter (TASCAM PS-P515U, sold separately); External battery pack (TASCAM BP-6AA, sold separately) |
| USB Terminal | Connector type: Micro-B; Format: USB 2.0 HIGH SPEED mass storage class |
| Max. Power Consumption | 5 W (maximum) |
| # Of Channels | 4 maximum (stereo × 2, mono × 4) |
| Overall Frequency Response | 20-20kHz +0.5/-1dB (LINE IN to LINE OUT, Fs48kHz, JEITA); 20-40kHz +0.5/-1dB (LINE IN to LINE OUT, Fs96kHz, JEITA); 20-80kHz +0.5/-5dB (LINE IN to LINE OUT, Fs192kHz, JEITA) |
| Maximum Recording Time | WAV/BWF 16-bit (Stereo) 44.1 kHz: 6:17; WAV/BWF 24-bit (Stereo) 96 kHz: 1:55; WAV/BWF 24-bit (Stereo) 192 kHz: 0:57; (SDHC card capacity 4 GB) |
physical specifications
| Weight | With Batteries: 654 g; Without Batteries: 567 g |
| Dimensions | With top adapter attached: 6.7 x 2.3 x 4.5" (169.0 x 57.3 x 113.5 mm) |
| Color | Black |
