Tilta Nucleus-M Wireless Lens Control System
Usually Ships in 7-14 days.
Free shipping
$1,099.00
Key Features
- Tilta Nucleus-M Wireless Lens Control System
- Wireless Range: 1000 ft.
- Two Lens Drive Motors
- Motors Feature Integrated Receivers
- 0.8 MOD Drive Gears
- Right Handgrip: Focus Control
- Left Handgrip: Iris and Zoom Control
- Focus, Iris, Zoom Hand Unit
- Motors Daisy-Chain for Power
- Hard-Shell Waterproof Case (Included)
Usually Ships in 7-14 days.
Free shipping
$1,099.00
Have any questions?1-800-631-0300
OVERVIEW

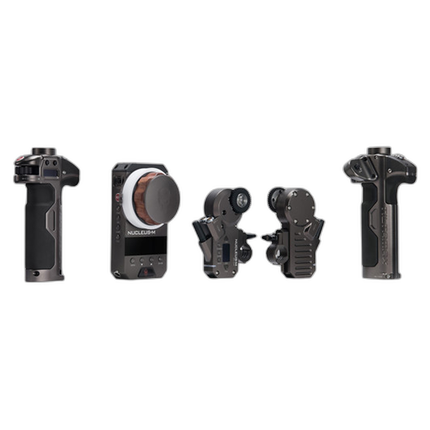

The Tilta Nucleus-M Wireless Lens Control System is designed with a maximum operating range of 1000 ft., and includes two lens drive motors with built-in receivers, as well as a FIZ hand controller, and two handgrips. The left handgrip is designed to control iris and zoom, while the left handgrip controls focusing control. Each lens drive motor features a cine-standard 0.8 MOD drive gear, as well as two 7-pin connectors, which allows you to swap or interchange each motor. The motors are powered by daisy-chaining via the 7-pin cables, & each motor includes a 19mm rod clamp (with 19-15mm adapter bushing).
*BATTERIES ARE NOT INCLUDED & ARE REQUIRED FOR OPERATION - Click Here for compatible batteries*
Brand
detailed specifications
| Maximum Operating Range | Wireless Range: 1000' / 304m |
| Material | Material of Construction: Aluminum Alloy, Stainless Steel, ABS Plastic, Rubber, Brazilian Rosewood |
| Power | Batteries 3.7 VDC, 3000 mAh |
physical specifications
| Weight | Left Handgrip Weight: 0.53 lb / 0.24 kg (no batteries or adapters) |
| Weight | Motor Weight: 0.42 lb / 0.19 kg |
| Weight | FIZ Hand Unit Weight: 1.16 lb / 0.53 kg (with focus disk and batteries) |
| Weight | Right Handgrip Weight: 0.58 lb / 0.26 kg (no batteries or adapters) |
| Dimensions | Motor Dimensions: 4.50 x 3.25 x 1.38" / 11.43 x 8.26 x 3.49 cm |
power system
| Charger Type | Battery Charger: 100 to 240 VAC, 50/60 Hz, 0.15 A 5 VDC, 2 A |
| Battery Type | Required Batteries for Handgrip: 2 x 18650 (One 18650 In Each) |
| Battery Type | Required Batteries for Hand Controller: 2 x 18650 |
With a Purchase
- Tilta Nucleus-M Wireless Lens Control System
- Wireless FIZ Hand Unit
- 2 x Wireless Motors
- 2 x 19mm Motor Rod Clamps
- 2 x 19 to 15mm Bushings
- Wireless Left Handle (Focus)
- Wireless Right Handle (Iris, Zoom)
- 4 x Follow Focus Disks
- 7-Pin to D-Tap Motor Power Cable (29")
- 7-Pin to 7-Pin Straight Motor Cable (11.7")
- 7-Pin to 7-Pin Straight Motor Cable (7")
- 2 x Handle to ARRI Rosette Adapter
- 2 x Handle to Gimbal Bar Adapter (25 to 30mm Compatibility)
- Four-Slot 18650 Battery Charger
- AC Power Cord for Charger
- Wireless FIZ Hand Unit Strap
- Hard-Shell Waterproof Safety Case
With a Rental
- Wireless FIZ Hand Unit
- Right Wireless Handle
- Left Wireless Handle
- 74cm 7-Pin to P-Tap Motor Power Cable
- 55cm 7-Pin to 7-Pin Motor Connection Cable
- 18cm 7-Pin to 7-Pin Motor Connection Cable
- Hex Wrench
- Lanyard for the Wireless FIZ Hand Unit
- 2x Wireless Motors
- 2x Focus Gear Adapters
- 2x ARRI Rosette Handle Adapters (WLC-T03RS)
- 6x 18650 Batteries
- Tiltamax Battery Charger (w/ Power Cable)
- 4x Focus Marking disks
- 2x Rod Attachment (WLC-T03-GR)
- User Guide
- Carrying Case
