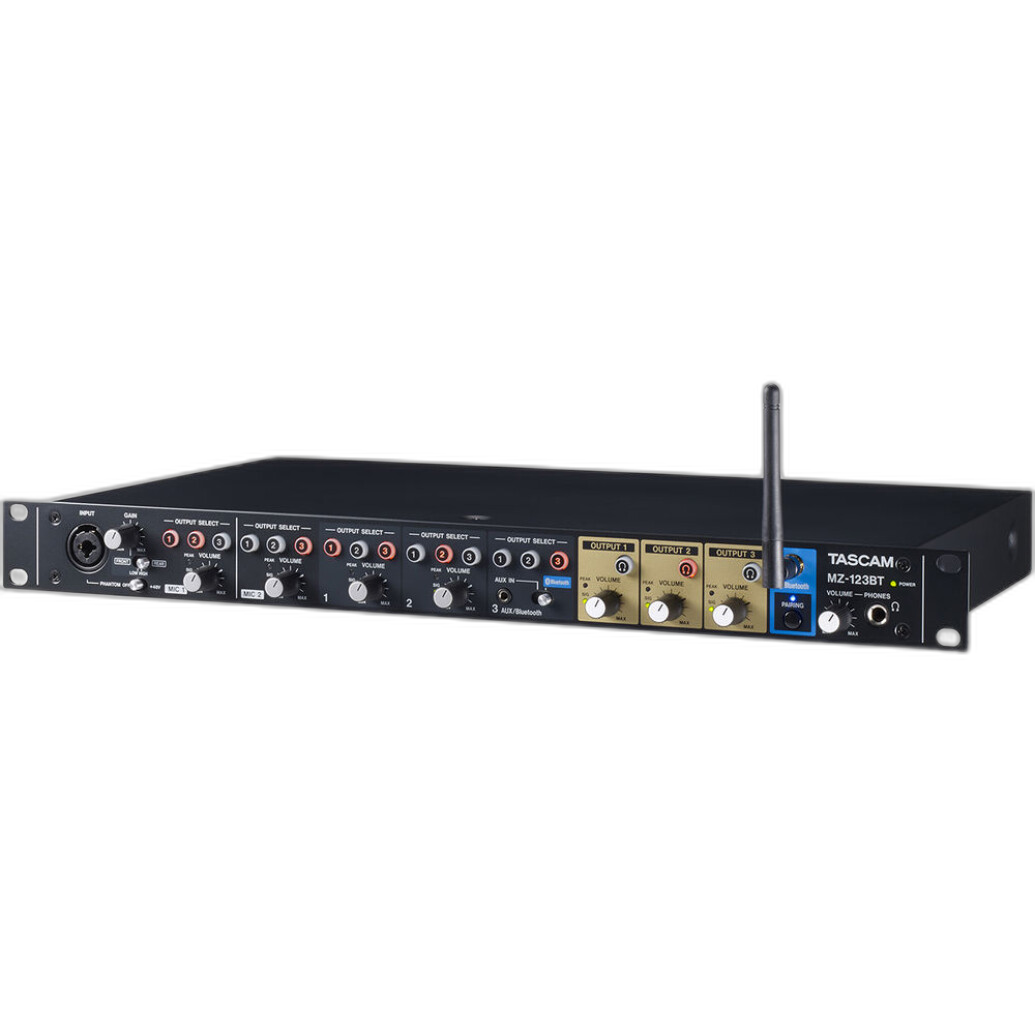

Tascam MZ-123BT Multi-Zone Audio Mixer with Bluetooth

OVERVIEW

The Tascam MZ-123BT is a compact 1U multi-channel, multi-zone professional installation mixer that provides versatile routing, mixing and distribution of up to three channels of music and announcements for a wide range of commercial applications, including retail, restaurants, bars, cafes, hotels, or any environment that requires independent audio routing and announcement capabilities. Featuring a simple, intuitive layout for ease of operation, the Bluetooth-enabled MZ-123BT comes equipped with 2 versatile mic inputs and automatic attenuation of background music for superior intelligibility during announcements or paging.

Discrete Zone Audio Control and Routing

Three discrete Zone Outputs with Volume control allow routing of background music to desired areas or rooms in a restaurant, hotel, retail store or other commercial environments.

Three Outputs with Euroblock Connectors

Three pairs of stereo outputs featuring Euroblock connectors for fixed installations are accessible from the back panel. A Mono/Stereo switch is provided per output to fit your needs.

Three Input Channels

Stereo Line Inputs 1 and 2 (RCA, Unbalanced) allow connection of AV equipment such as Tascam CD/Solid State Players or similar playback devices. The Channel 3 Aux/Bluetooth Input allows an additional audio source to be connected via Bluetooth or 3.5mm mini plug. Each input features a Volume Control knob as well as a Zone Routing button (1,2, or 3) for audio distribution to desired areas.

Bluetooth Antenna for Stable Wireless Connectivity

A dedicated front-panel Bluetooth antenna helps ensure consistent wireless signal stability and reliability when streaming source material from a Bluetooth enabled device, even in the most signal-challenged environments.

Dual Mic Inputs with Euroblock Connectors

Two Mic Inputs, each with +48V phantom power switches, enable discrete Zone talkover or announcer functionality via push-button front panel Zone Output switches. Two rear panel Euroblock connectors are provided for Mic 1 and Mic 2 connection, with XLR/TRS connectivity for Mic 1 easily accessible from the front panel and selectable via the front panel switch.

3 Band EQ, Gain Control and High Pass Filter Switch

On the back panel, separate 3 band EQ (Low, Mid, High) and Gain control knobs, along with a High Pass Filter switch are provided for setting optimal room level, tonal quality and voicing character for each mic channel.

Talkover Function for Voiceover Clarity During Announcements

The Talkover function automatically detects mic signal input during audio playback and attenuates background music levels in the desired Zone for optimal intelligibility during announcements. Back panel adjustments of Mic Threshold Level and Timing (release time) allows smooth restoration of background music to pre-set levels.

Simple Layout for Ease of Operation

Intuitive front-panel control of Volume, Output, Zone Select and Bluetooth pairing makes basic operation simple for non-technical staff and workers. More advanced system configurations and operational settings for EQ, Gain and Threshold can be dial in and set via dedicated back panel knobs.

Compact 1U Rack Mount Size

The 1U rack mount size MZ-123BT is designed to fit seamlessly in an installed AV rack, with an optimized depth that allows for greater connection space for integrated AV equipment such as Tascam CD/Solid State Players.
