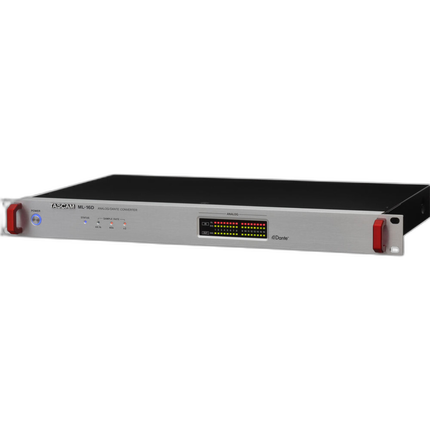

Tascam ML-16D Dante / Analog Converter

---

OVERVIEW

TheML-16D has 2 D-Sub inputs and 2 D-Sub outputs, which can easily be connected to any of the many devices that utilize D-Sub connectors such as microphone preamplifiers, large and small format console mixer, audio interfaces, amplifiers, and euro block connector devices. This simple, yet elegant, solution enables audio to be quickly and easily inserted into - or extracted from - the Dante Audio Stream.

SMPTPE ST-2110

SMPTE ST-2110 is a video and audio IP network standard defined by SMPTE (Society of Motion Picture and Television Engineers). SMPTE ST-2110 is designed to separately embed and transmit, video, audio, and ancillary signals, reducing the de-embedding processing load and network load of each device, while also enabling users to de-embed only the packet data they desire for further edit. ST-2110-30 realizes IP transmission of PCM digital audio, enabling high-precision synchronization using PTP (IEEE1588-2008) and low-latency transmission. It is expected to become a network standard protocol in next-generation broadcasting systems.

Primary and Secondary Network Connections

Primary and secondary connectors enable building a redundant system with a duplex network. Should the primary network route fails the ML-16D automatically switches to the secondary network route. This highly secure system prevents interruption and introduces no noise during the switch.

Flexible Routing

The ML-16D uses Dante Controller to configure the main unit and to connect to other Dante-compatible devices. Dante Controller enables flexible routing configuration to other Dante-compatible devices.

Possible to Interconnect with AES67 and Ravenna Systems

Dante supports AES67, which enables audio connection with systems using AES67 and AES67-compatible protocols including Ravenna.

Integrated Signal/Overload Indicator

The front panel is equipped with a signal/overload indicator that enables monitoring of analog input/output signals. The signal indicator turns on when a signal level becomes lower than -60dBFs.

5 Selectable Reference Levels

The Tascam ML-16D features selectable reference level setting from 5 maximum level options: +24dBu, +22dBu, +20dBu, and +18dBu (the standard level is +4dBu) and +15dBu (the standard level is +6dBu), which can accommodate to a variety or purposes including professional use in broadcasting studios, public address systems and recording environments.

Flexible Choice of Connectors

ML-16D is equipped with D-Sub 25-pin connectors as analog line input/output connecors, and combining with optional breakout boxes enables conversion to Euro Block and XLR.
