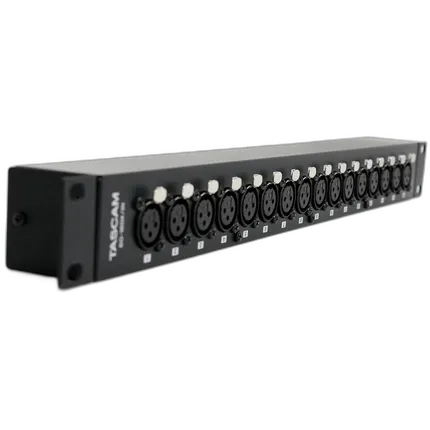

Tascam BO-16DX/IN Rackmount 16-Channel XLR Female to DB25 Adapter

OVERVIEW

The Tascam BO-16DX/IN is a rugged, rackmounted audio adapter designed for professional installation and live sound applications. 16 front-panel XLR inputs are internally bridged to dual D-Sub output connectors on the rear panel, providing a fast and easy way to interface between stage boxes, FOH and monitor mixing consoles, audio over IP convertors and more.

The Ideal I/O Solution

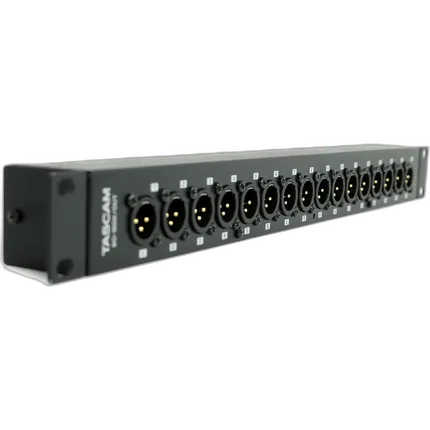

Designed as companion pieces for the Tascam ML-16D and ML-32D Analog to Dante convertors, a combination of BO-16DX/IN and BO-16DX/OUT provide an elegant communication link between your Analog and Digital subsystems.

The 25-pin D-Sub connectors on the BO-16DX/IN employ Tascam pin assignments that are compliant with AES59-2012.

Flexible Mounting Options

The BO-16DX/IN is designed to mount in either of two 180-degree rotations to simplify cabling runs and avoid unnecessary twisting of D-Sub connector cables within the rack.

Regardless of the direction of the unit, approximately half inch (13mm) of space is available above each connectors, allowing easy access to a release lever of the XLR socket when stacked.

The unit can be mounted in a rack facing forward or backward by changing the direction that the rack-mount ears are attached to it. The rackmount ears can also be removed when using the unit placed on a tabletop.

Thanks to the compact size, including a depth of only 1.8" (45mm) behind the rackmount ears, this breakout box can even be mounted in the back of a rack case. Mounting in the front of a rack case for use as a patch bay is also possible.
