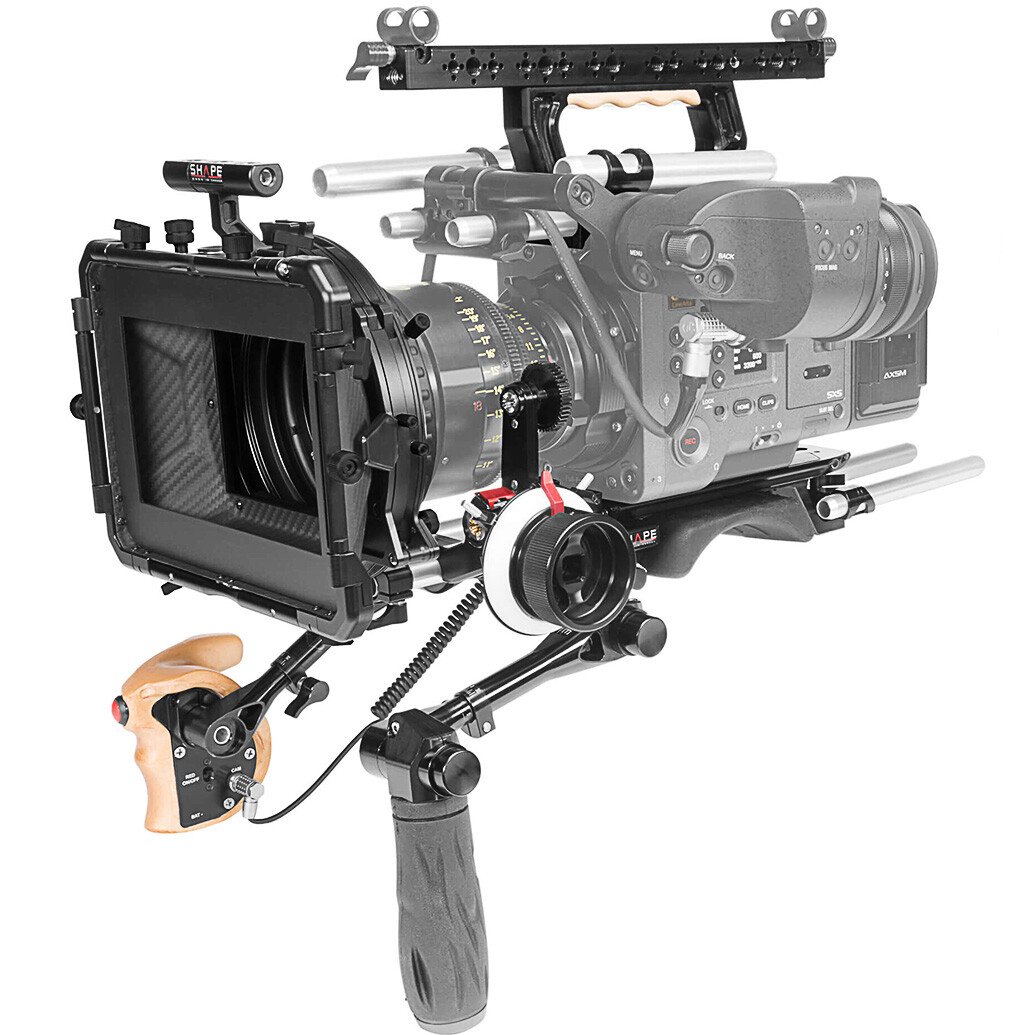

Shape VNKIT Shoulder Baseplate Kit for Sony Venice

overview

Revolt BP10 - VCT universal baseplate

The REVOLT VCT Universal Baseplate (BP10) offers a unique design, created for both amateur and professional filmmakers seeking camera supports & stabilizers of high-quality. It features a front to back sliding plate allowing quick positioning of your camera accessories for an optimal adjustment of your camera’s center of gravity and weight distribution. It is designed with 2 standard Arri rosettes for handles mount and there is a standard quick release adapter plate compatible with most VCT tripod plate. There is also a protective rubber pads on top of the plate to protect your camera.

Two 15 mm lightweight rod blocs can be fixed to the front and rear of the baseplate, allowing you to install more camera accessories. It comes with 2 pairs of 15 mm rods (8”and 4”) made of reliable aluminum coated with a clear finish. The safety ratchet knobs are built in a way to apply an optimal pressure to the rods. The thick shoulder pad produces maximum comfort and is made of gel padding and slip-free material. The baseplate is also designed with a sophisticated tool box to store your extra screws and Allen key. Quick access to your extra screws and Allen key can be a time saver, even more so, when you are in the middle of a shoot. The shoulder plate is equipped with 1/4-20 & 3/8-16 threaded holes allowing extra screws to be stored and there is a magnet at the back to attach your Allen key.

• Front to back sliding plate for quick positioning of your camera accessories and an optimal adjustment of your camera’s weight distribution.

• Match your camera’s optical center. Being able to adjust the height of your rod bloc to match your camera’s optical center is exactly what you can do.
• Comfortable and moveable shoulder pad made of slip-free material and gel padding (BP-0100).
• Front and rear 15 mm lightweight rod blocs with 2 pairs of 15 mm rods (8”, 4”) to mount more camera accessories.
• Safety pins prevents the upper plate from sliding.
• Ratchet knob applies an optimal pressure to the rods.
• Sophisticated tool box to store your extra screws and Allen key

Compatible with the following cameras:

• RED (DSMC2)

• Arri (Amira and Alexa Mini)
• Sony (Venice, FS7, FS7M2, F5, F55, EX1, EX3)
• Canon (C200, C300, C300M2, C700)
• Panasonic (EVA1, Cinema Varicam LT 4k S35, Panasonic Ag-af100, Panasonic Ag-af101 Varicam LT, Panasonic P2)
• Blackmagic (Ursa Mini)
• and many other camera models with interchangeable lenses

15 mm in rods

One pair of SHAPE 15-mm aluminum rods for your compatible camera rig. Mount any 15-mm compatible accessories and form the support structure of your rig.

• 15-mm diameter
• 4-in length
• Hollow, non-threaded
• Tapered ends for easy connection to a rod block
• Aluminum coated with a clear finish

15 mm 8 in rods

One pair of SHAPE 15-mm aluminum rods for your compatible camera rig. Mount any 15-mm compatible accessories and form the support structure of your rig.

• 15-mm diameter

• 8-in length
• Hollow, non-threaded
• Tapered ends for easy connection to a rod block
• Aluminum coated with a clear finish

Shoulder baseplate 15 mm LW with remote trigger handle for Sony Venice

SHAPE left telescopic black Push-button handle with Arri rosette

Left telescopic handgrips with ARRI rosettes that can be attached to cameras or camera support hardware that has standard ARRI rosettes, which allow you to lock your arms in place. The arm features four points of articulation (2 Push-button and 2 ratchet knob) to adjust the arms position. The ratchet knob along the arms allows you to extend the arms up to 2 inches and rotate the handgrips throughout 360°. The one near the rosette gives you more option to position the arm for your comfort.

SHAPE is well known for its patented Push-button handle, now used by so many professionals in the industry. The technology was developed to give filmmakers quick and easy adjustment. By simply pressing the button, you are allowed a 360-degree rotation to place the handle in the best position for your use. Push, adjust, release, and then its lock. The Push-button system on the Handle articulating joint provides additional articulation near the rosette, while the second push-button articulation joint allows you to rotate and precisely position the rubber handgrips.

• Black Push-button

• Left telescopic handgrips with ARRI rosettes
• Let you move quickly between known setups
• Arm features 4 points of articulation
• Arm extend up to 2 inches and rotates throughout 360°
• Markings on extendable arm help you remember preferred settings
• Patented Push-button system for fast adjustment
• Push, adjust, release, and then its lock
• Rubber handgrips for stability and precision
• Made of CNC machined aluminum for resistance

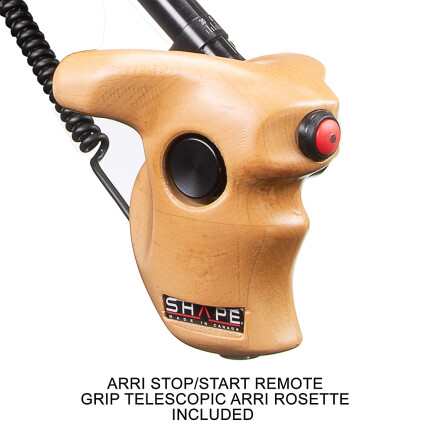

Arri camera stop & start grip telescopic Arri rosette

The handle grip is made of robust and comfortable Canadian maple wood. The ergonomic design helps eliminate fatigue and assures a better control when handling your camera rig. The Stop & Start shutter button is easy to access and let you activate or deactivate the recording option of your ARRI camera. The handle is also designed with a Push-button system allowing you to rotate and position the handle to your need. SHAPE is well known for its patented Push-button handle, now used by so many professionals in the industry. The technology was developed to give filmmakers quick and easy adjustment. By simply pressing the button, you are allowed a 360-degree rotation to place the handle in the best position for your use. Push, adjust, release, and then its lock.

• Made of Canadian maple wood
• ON/OFF Switch
• Battery slot at the bottom of the handle (AAA Battery – Not included - required to activate remote functions)

Telescopic handle Arri rosette right side

The Telescopic Handle for Arri Rosette from SHAPE is a versatile and adjustable handgrip that attaches to an ARRI standard rosette on the right side of your camera rig. It offers 1.5" of extension and uses push-button mechanisms on the extension arm and handle for adjusting the height and rotation of the handles to meet your needs and preference. The push-button on the handle is a huge benefit when you want to adjust the angle on-the-fly, without having to remove your hand or set down the rig.

• Each connection point independently rotates 360° at the push of a button
• Ratchet knob unlocks extendable arm; arm provides 1.5" of extension
• Markings on extendable arm help you remember preferred settings
• CNC-machined aluminum parts with stainless steel locking mechanism

Revolt BP10 - VCT universal baseplate

The REVOLT VCT Universal Baseplate (BP10) offers a unique design, created for both amateur and professional filmmakers seeking camera supports & stabilizers of high-quality. It features a front to back sliding plate allowing quick positioning of your camera accessories for an optimal adjustment of your camera’s center of gravity and weight distribution. It is designed with 2 standard Arri rosettes for handles mount and there is a standard quick release adapter plate compatible with most VCT tripod plate. There is also a protective rubber pads on top of the plate to protect your camera. Two 15 mm lightweight rod blocs can be fixed to the front and rear of the baseplate, allowing you to install more camera accessories. It comes with 2 pairs of 15 mm rods (8''and 4'') made of reliable aluminum coated with a clear finish. The safety ratchet knobs are built in a way to apply an optimal pressure to the rods. The thick shoulder pad produces maximum comfort and is made of gel padding and slip-free material. The baseplate is also designed with a sophisticated tool box to store your extra screws and Allen key. Quick access to your extra screws and Allen key can be a time saver, even more so, when you are in the middle of a shoot. The shoulder plate is equipped with 1/4-20 & 3/8-16 threaded holes allowing extra screws to be stored and there is a magnet at the back to attach your Allen key.

• Front to back sliding plate for quick positioning of your camera accessories and an optimal adjustment of your camera’s weight distribution.
• Match your camera’s optical center. Being able to adjust the height of your rod bloc to match your camera’s optical center is exactly what you can do.
• Comfortable and moveable shoulder pad made of slip-free material and gel padding (BP-0100).
• Front and rear 15 mm lightweight rod blocs with 2 pairs of 15 mm rods (8'', 4'') to mount more camera accessories.
• Safety pins prevents the upper plate from sliding.
• Ratchet knob applies an optimal pressure to the rods.
• Sophisticated tool box to store your extra screws and Allen key

Compatible with the following cameras:

• RED (DSMC2)
• Arri (Amira and Alexa Mini)
• Sony (Venice, FS7, FS7M2, F5, F55, EX1, EX3)
• Canon (C200, C300, C300M2, C700)
• Panasonic (EVA1, Cinema Varicam LT 4k S35, Panasonic Ag-af100, Panasonic Ag-af101 Varicam LT, Panasonic P2)
• Blackmagic (Ursa Mini)
• and many other camera models with interchangeable lenses

15 mm in rods

One pair of SHAPE 15-mm aluminum rods for your compatible camera rig. Mount any 15-mm compatible accessories and form the support structure of your rig.

• 15-mm diameter
• 4-in length
• Hollow, non-threaded
• Tapered ends for easy connection to a rod block
• Aluminum coated with a clear finish

Stop and start cable for Arri camera

This 16-inches coil extensible cable allows users to access ARRI'S Start / Stop command.

• (ARRI) Right Angle 7 Pin Push-Pull Connector Plug
• (ARRI) Straight 3 Pin Plug: (Fischer Inter-mateable)

SHAPE top handgrip and top plate for Sony Venice with 15 mm LW front rod clamp

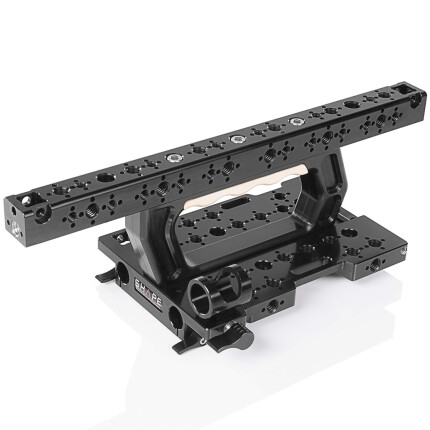

Sony Venice top plate

The robust CNC machined aluminum Top Plate is designed to support and facilitate the handling of your Sony Venice Camera. It is secured on top of the camera using four 1/4"-20 UNC socket head cap screws. The Top Plate offers an array of 3/8"-16 UNC threaded mounting holes on the top and on of both sides, including the ARRI anti-rotating system which can be used to better secure your accessories directly mounted onto the Top Plate. It also features two Velcro strap attachment slots for cable management to keep cables away from the camera menu screens and buttons. The SHAPE Top Plate also fits the Sony Venice original handle perfectly well and can be placed further forward for better balance.

The top plate is designed with 15 mm LW front rod clamp allowing you to mount the original Sony viewfinder bracket. A removable 15 mm or 19 mm Studio Rod Clamp for Top Plate (15CTH or 19CTH) can be mounted at the front of the Top Plate, allowing easy positioning of 15 mm and 19 mm rods to set the accessories at the proper height with respect to the Sony Venice camera optical center. In addition, the original Sony Venice Camera Top Handle can be used with the SHAPE Sony Venice Top Plate for a lightweight shoulder rig solution. The SHAPE Top Plate also features a dovetail and safety pin system that reproduce the one on top of the camera body; the Allen key must be temporarily removed to insert it into the Top Handle. The SHAPE Top Plate comes with a tool box and magnetic Allen key which are useful for adjusting and installing the Top Plate onto the camera.

Sony Venice Top Handle

The SHAPE Top Wooden Handgrip is designed with a closed handle which gives you a rock-solid grip, allowing you to hang the camera for different setups using the SHAPE Sony Venice Top Plate. It is specifically designed for rig and tripod configurations; it features an ergonomic wooden grip and the new SHAPE Cheese Top Rail that is equipped with many ARRI Standard anti-rotating 1/4"-20 and 3/8"-16 UNC threaded holes located on the top, on each side and both ends of the rail. 15 mm and 19 mm Studio Rod Clamps for Top Plate (15CTH, 19CTH) can be mounted in a parallel or perpendicular orientation at both ends of the Cheese Rail which can be attached in three different positions on top of the handle. Also, the handgrip is screwed on the Top Plate using 1/4"-20 UNC socket head cap screws and can be removed from the Top Plate using the Allen key included.

• Ergonomic Top Wooden Handgrip
• Closed Handle for Rock-Solid Grip
• Specifically designed for Rig and Tripod Configurations
• Cheese Top Rail providing several ARRI Standard Anti-Rotating 1/4"-20 and 3/8"-16 UNC Threaded Holes

Follow Focus Pro

Manufactured in sleek black anodized aluminum, this special edition professional follow focus unit combines a refined look with trusted engineering and a classic design. The SHAPE Follow Focus Pro is an industry workhorse and has already proven itself on countless tough shoots all over the world, so you needn’t worry about it letting you down. The SHAPE engineering team is internationally renowned for creating one of the most robust motion picture accessories ever built. It mounts on 15 mm rods and features an adjustable arm which puts the gear at the optimal position for the lens, no matter what the diameter is. Two 0.8 pitch gears come included and give you a choice of either 28 teeth or 43 teeth, depending on the throw distance of the lens. Additional features include two adjustable hard stops, removable marking disc, and an industry standard accessory port for using optional whips and cranks.

SHAPE 4 x 5.6 carbon fiber swing-away matte box 15 mm LW and 19 mm Studio rod mount

Add filters and light control to your camera rig with the 4 x 5.6 Carbon Fiber Swing-Away Matte Box Set from SHAPE. The lightweight matte box features a 2-stage, 4 x 5.65" 360° rotating filter system and can be mounted on any standard 15mm LWS or 19mm studio rod systems.

The two rotating filter stages allow you to insert 4 x 5.65" filters, such as polarizing or graduated ND, and independently rotate them 360° to find just the right look. An 82mm filter ring is also included to utilize round filters. The large 143mm opening provides easy access and the 114mm ARRI-style rubber bellows opening is compatible with standard cine lens sizes. Four lens adapters are included to attach 80, 95, 104, and 114mm telephoto lenses to the matte box. The 15mm LWS and 19mm studio rod adapters are height-adjustable to match the size of your lens.

A top flag and two side flags are included to prevent unwanted flare, and a top handle with five threaded holes allows you to mount additional accessories such as lights, extension arms, and adapter shoes. The entire system is built on a hinge so you can easily swing the matte box away for lens and filter changes.

All the components are packed in a formfitting foam that can be transferred to a carry case of your choice.

• Two 4 x 5.65" filter stages independently rotate 360°; an 82mm filter ring is also included
• Durable, lightweight carbon fiber construction
• A top flag and side wings reduce unwanted flare
• Swing-away design allows for quick and easy lens changes
• Large 143mm opening with 114mm ARRI-style rubber bellows to attach standard cine lenses
• 80, 95, 104, and 114mm lens adapters are included
• 15mm LWS and 19mm studio rod adapters attach matte box to standard LWS rod systems
• Top handle with five threaded screws to add attachments
