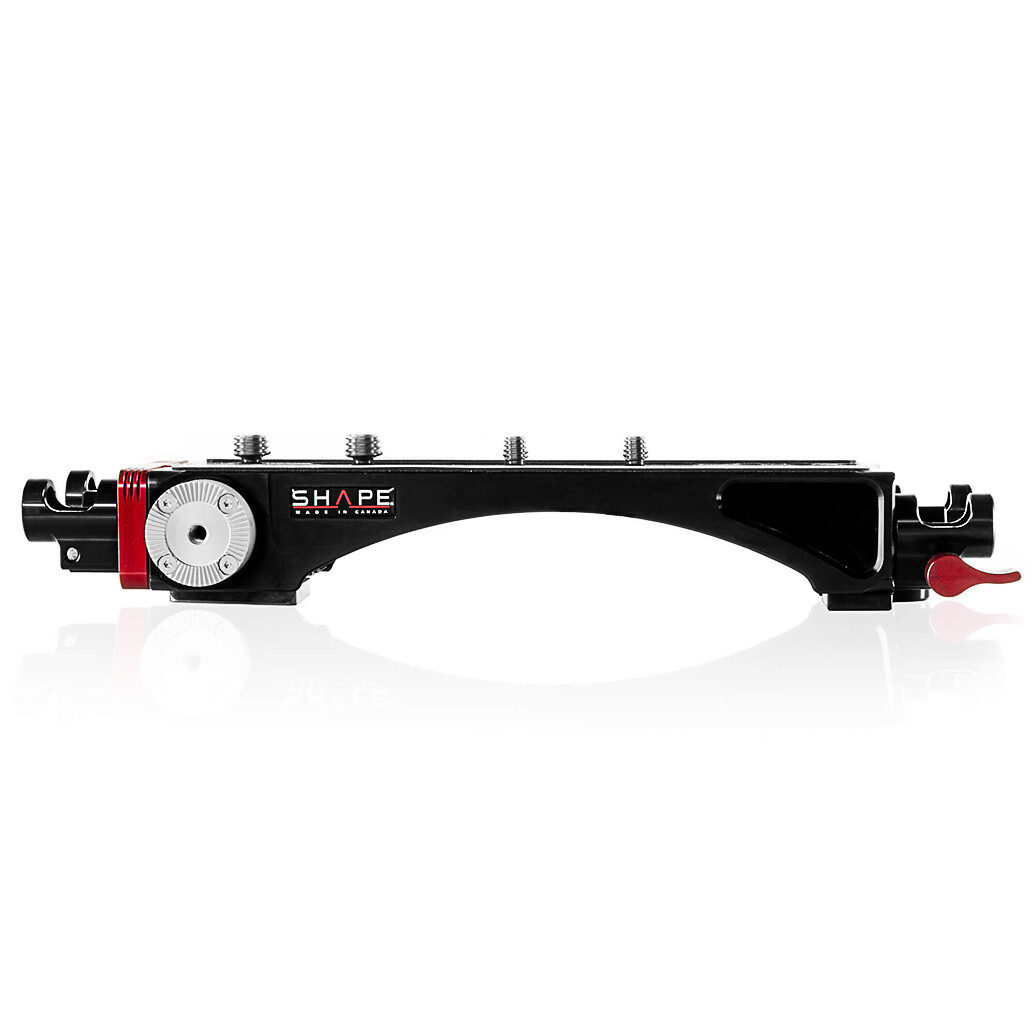

Shape V-Lock Quick-Release Baseplate for Sony FS7M2

overview

The SHAPE  V-Lock Quick Release Baseplate is a long format baseplate and it can be used shoulder mounted, tripod mounted, and attached to V-lock tripod adapters. The baseplate includes a removable shoulder pad and features rosette adapters for ARRI standard handles. It has 1/4"-20 and 3/8"-16 tripod mount threads and a V-lock delta adapter for attaching SHAPE VCT Tripod Plate (VCTSH) or any VCT-14 tripod plate.

The shoulder pad secures on by touch fasteners. The tripod mount threads are located underneath the shoulder pad. A pair of 8" 15 mm rods are included for the front. For attaching a matte box and other accessories, the rod adapter can be adjusted vertically if you remove the screw holding it in position. This baseplate also supports optional SHAPE 15 mm Studio and 19 mm Studio adapters in place of the included one. The baseplate features three camera mount slots, all supporting 1/4"-20 and 3/8"-16 screws. The off-center slots allow you to mount your camera offset if you use a 15 mm Studio Adapter. 1/4"-20 and 3/8"-16 mounting threads are peppered behind the three slots for attaching articulating arms and other accessories. Two 1/4"-20 and two 3/8"-16 camera mount screws are included.

Spare pad for BP series

The V-Lock Replacement Pad from SHAPE is a replacement shoulder pad for the BP SERIES v-lock quick release baseplate (BP0008, BP8000, BP7000). The pad utilizes a hook-and-loop system which allows for easy attachment and removal. The additional padding provided by the strap increases user comfort and reduces strain on the shoulder.

Sony FS7 & Sony PXW-FS7 mark II rear insert plate

The Sony FS7 Rear Insert Plate from SHAPE is an aluminum rear support plate designed for use with the Sony FS7M2 or FS7 cameras. The plate mounts to the camera body via three included screws and provides necessary support when the camera is used with the SHAPE V-lock quick release baseplate.

15 mm 8" rods

One pair of SHAPE 15-mm aluminum rods for your compatible camera rig. Mount any 15-mm compatible accessories and form the support structure of your rig.

• 15-mm diameter
• 8-in length
• Hollow, non-threaded
• Tapered ends for easy connection to a rod block
• Aluminum coated with a clear finish
