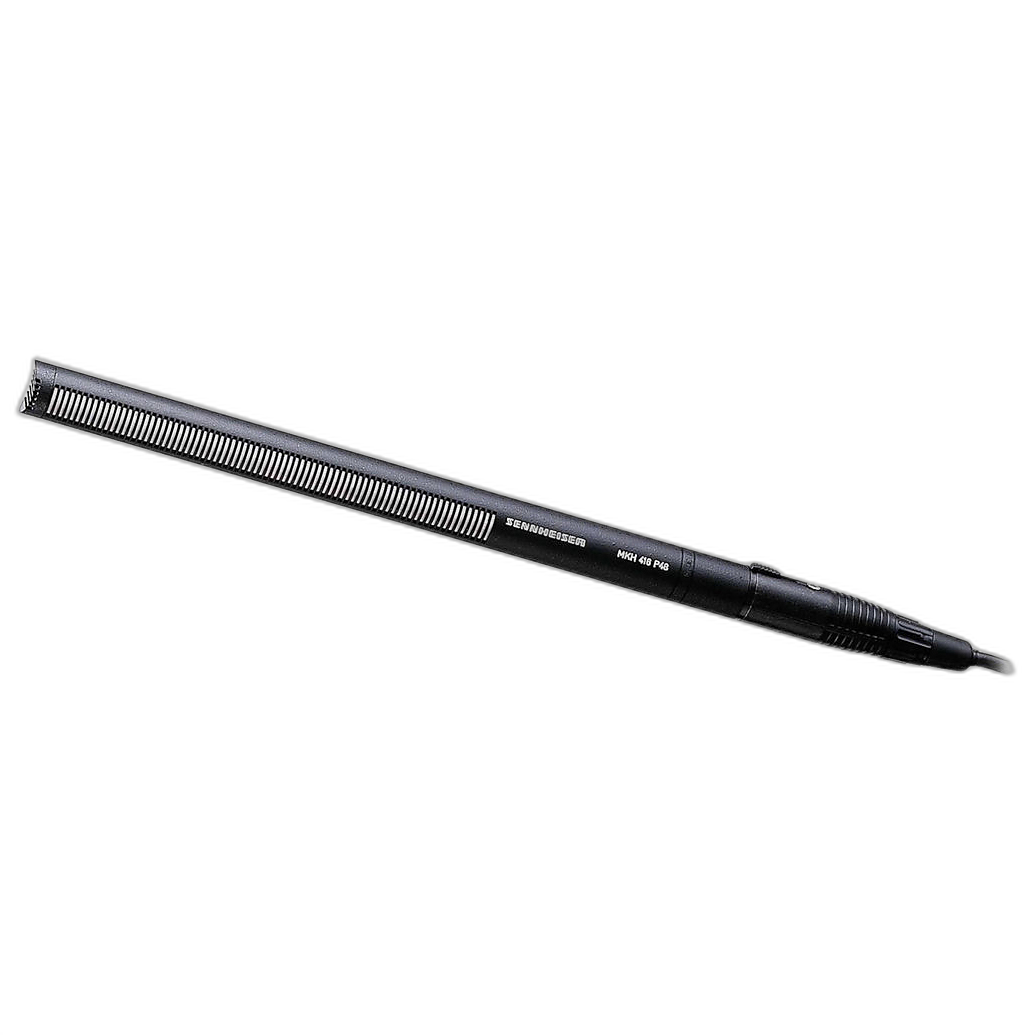

Sennheiser MKH 416-P48U3 Moisture-Resistant Shotgun Microphone
Key Features
- Pro-Video, Location, & TV Recording
- Moisture-Resistant For Humid Conditions
- Frequency Response: 40 Hz to 20 kHz
- Professional Sound-Quality
- Ideal For Boompole Mounting
- Phantom Powering Capabilities
- Foam Windscreen To Minimize Wind-Noise
- No Switches, Buttons, Or Dials
OVERVIEW
The venerable MKH 416 is a compact pressure-gradient microphone with short interference tube, highly immune to humidity due to its RF condenser design. Featuring high directivity, low self noise, high consonant articulation and feedback rejection, the MKH 416 can handle difficult exterior filming and reporting conditions without any difficulty. Supercardioid/lobe pattern, matte black finish, supplied with the MZW415 windscreen
- Pressure gradient receiver with short interference tube
- Hypercardioid at low and medium frequency
- Above 2kHz approaches lobar pattern
Brand
microphone specifications
| Connector Type | 1 x XLR 3-Pin (Output) |
| Equivalent Noise Level | 13 dB A-Weighted, 24 dB CCIR |
| Sound Field | Mono |
| Capsule | Condenser |
| Material of Construction | Metal |
| Operating Principle | Line Gradient |
| Weight | 6.17 oz |
| Polar Pattern | Lobar, Supercardioid |
| Operating Current Consumption | 2 mA |
| Form Factor | Stand/Boom Mount |
| Circuitry | Solid-State |
| Operating Voltage | 48 V ± 4 V |
| Maximum SPL | 130 dB SPL |
| Off-Axis Rejection | 3 dB at 60°, 20 dB at 120°, 15 dB at 180° |
| Impedance | 25 Ohms |
| Mounting | Microphone Clip |
| Frequency Range | 40 Hz to 20 kHz |
| Sensitivity | -32 dBV/Pa at 1 kHz |
physical specifications
| Dimensions | Width: 0.75" x Length: 9.84" |
detailed specifications
| Type of Microphone | Shotgun Microphone |
With a Purchase
- Sennheiser MKH 416-P48U3 Moisture-Resistant Shotgun Microphone
- Sennheiser MZW-415 - Foam Windscreen (Gray)
- Sennheiser MZQ100 Quick Release Stand Adapter for K3U, MD409 and MKH-416 Microphones
- Case
With a Rental
- Sennheiser MKH 416 Shotgun Microphone
- Mount Clip
- Windscreen
- Case
No creators have tagged this product yet.
Articles featuring this product
Shotgun Mics vs Lavalier Microphones for Documentary Interviews: Which Audio Setup Is Best?
Jul 30, 2026
·
Unique Photo
Shotgun Microphones on a Budget: Real-World Tests, Community Takeaways, and Pro Tips for Cleaner A
Apr 24, 2026
·
Unique Photo
Shotgun vs Wireless vs Wired Lavalier: Choosing a Microphone Setup for Outdoor Interviews
May 11, 2026
·
Unique Photo
Shotgun vs Lavalier vs Studio Mics: Best Budget and Pro Audio Picks for Photographers and Videograph
Jul 7, 2026
·
Unique Photo
Rode NTG5 Location Recording Kit Review: The On-Location Audio Backbone for Feature Stories
May 5, 2026
·
Unique Photo
Community questions about this gear
Ask a question
0
votes
2
answers
124
0
votes
2
answers
108
Are DSLR accessory bundles worth it, or should I buy the camera and key items separately?
Photography Stack Exchange contributor
9y ago
You may also like

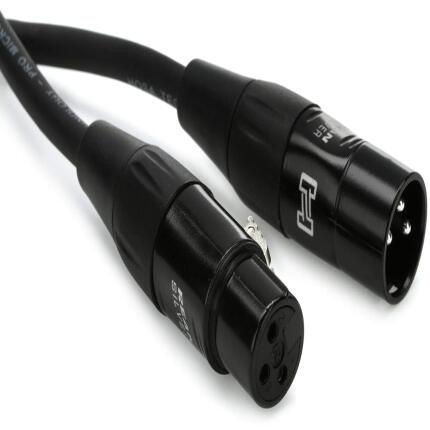

Hosa Technology HMIC-020 Pro Microphone Cable 3-Pin XLR Female to 3-Pin XLR
Hosa Technology Pro REAN XLR Male to XLR Female Microphone Cable - 25FT
- Silver-Plated REAN Connectors
- 20 AWG Oxygen-Free Copper Conductors
Hosa Technology Pro REAN XLR Male to XLR Female Microphone Cable - 5FT
- Silver-Plated REAN Connectors
- 20 AWG Oxygen-Free Copper Conductors
Hosa Technology Pro REAN XLR Male to XLR Female Microphone Cable - 10FT
- Silver-Plated REAN Connectors
- 20 AWG Oxygen-Free Copper Conductors

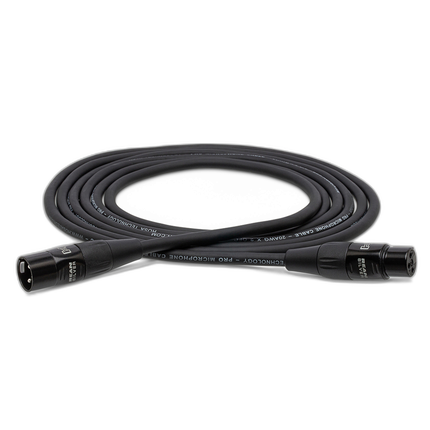

Hosa Technology Pro REAN XLR Male to XLR Female Microphone Cable - 3ft
