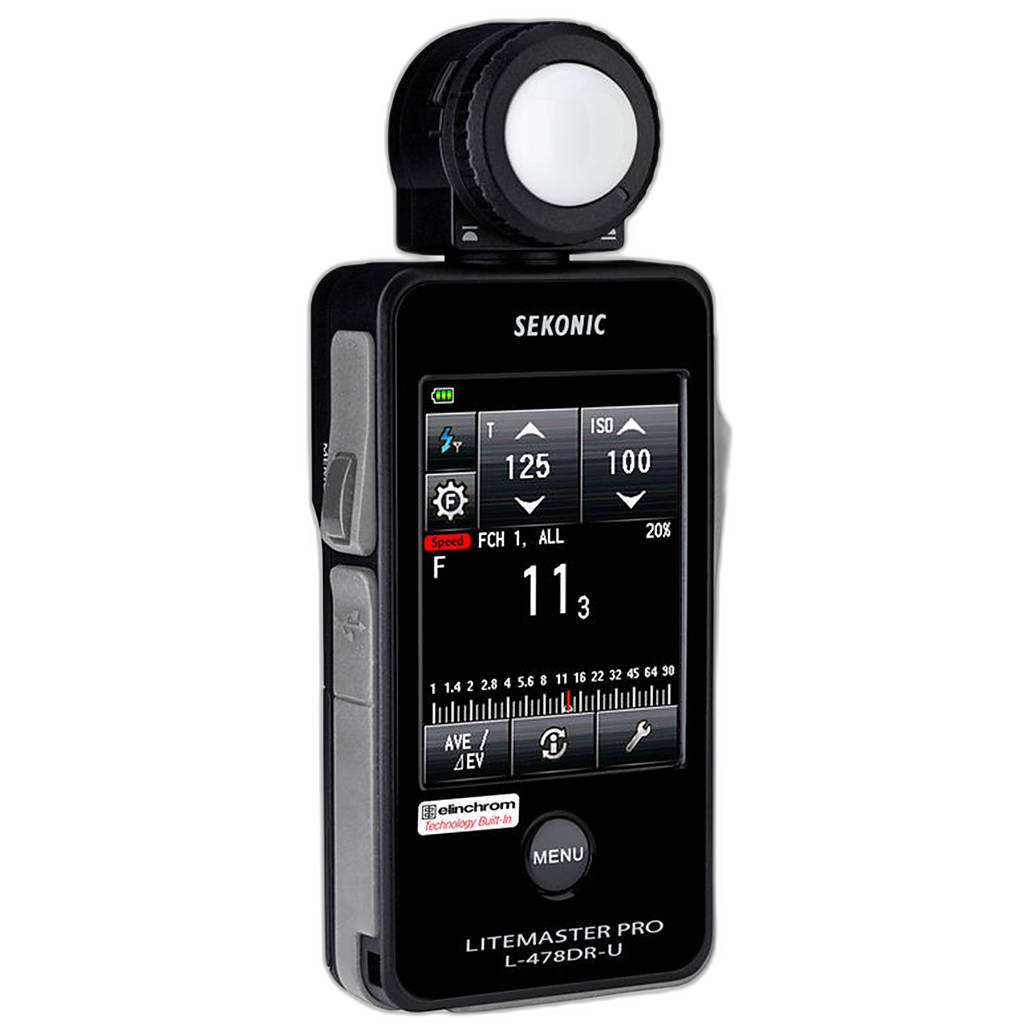

Sekonic - Litemaster Pro L-478-U-EL Series meter for Elinchrom
- Sekonic - Litemaster Pro L-478-U-EL Series meter
- For Elinchrom EL Skyport wireless system
- -2 EV to 22.9 EV at ISO 100
- 2.7-inch color touchscreen LCD
- Filtration-compensation mode
- Contrast function and memory mode
- Flash-analyzing function
- Custom exposure profiles and calibration
- USB and PC terminals
- 20-channel system
- 2 AAA batteries
Control your studio flash setup remotely with the Sekonic - Litemaster Pro L-478-U-EL Series meter. This meter is designed for operating the Elinchrom EL Skyport wireless system. It allows you to adjust the flash power in 0.1-step increments. The meter has a 20-channel system that includes 4 groups with determined values. Moreover, it has a Lumisphere head that can be converted into a flat diffuser. The head rotates 90° to the right and 180° to the left. This meter allows you to control modeling lamp power along with all other power groups. The meter measures light based on aperture, shutter, or TF priority as well as CINE, HD Cine, illuminance, and luminance. The ISO range up to 409600 in 1/3 steps makes it easy to work with Canon cinema cameras. This meter can also be operated using its PC sync terminal. A USB port is also provided to update the firmware of the meter. This Sekonic meter works on two AAA batteries.
In the Box
- Sekonic LiteMaster Pro L-478DR-U-EL Series Light Meter for Elinchrom EL Skyport System
- Anti-Glare Film
- Hand Strap
- Soft Case
Brand
detailed specifications
| Type of Transmitter | Digital light meter for flash and ambient light |
| ISO Range | 3 to 409,600 in 1/3 steps, plus 850 |
| Frame Rate | 1-1,000 fps |
| Power | 2 x AAA batteries (alkaline, manganese, lithium, nickel hydride, or nickel) |
| Frequency | Radio 2.4 GHz (Elinchrom) |
physical specifications
| Weight | 4.9 oz (140 g) without batteries |
| Dimensions | 2.2 x 5.5 x 1.0" (57 x 140 x 26 mm) |
| Color | Black |
shutter
| Shutter Speeds | Ambient Light: 1/64,000 sec to 30 min, plus 1/200 & 1/400 sec, in 1, 1/2, and 1/3 steps; Flash Light: 1/1,000 sec to 30 min, plus 1/75, 1/80, 1/90, 1/100, 1/200, & 1/400 sec, in 1, 1/2, and 1/3 steps |
focusing control
| Metering Range | -27.9 EV to 55.8 EV (only ambient light) |
display & viewfinder
| Screen Size | 2.7" (6.9 cm) |
| Display Type | Color touchscreen LCD |
brand
| Brand | Sekonic |
