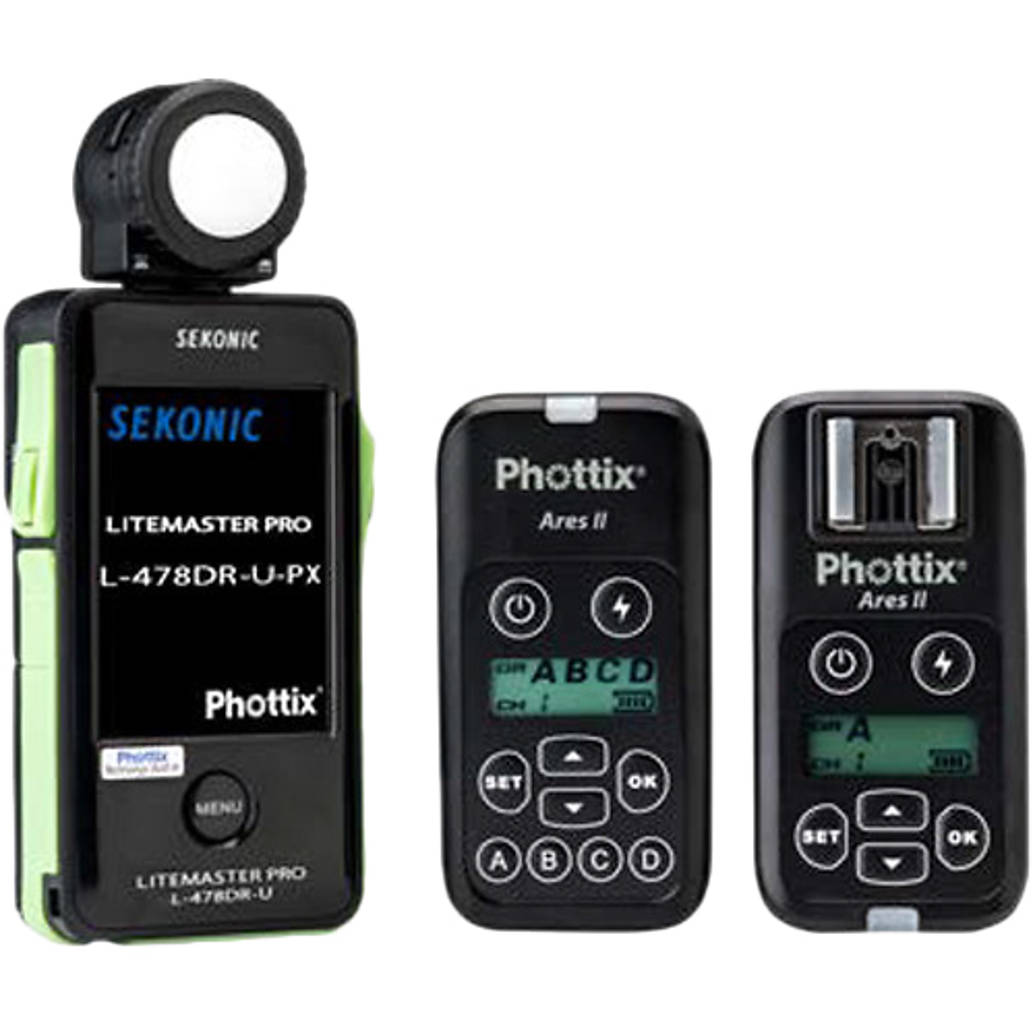

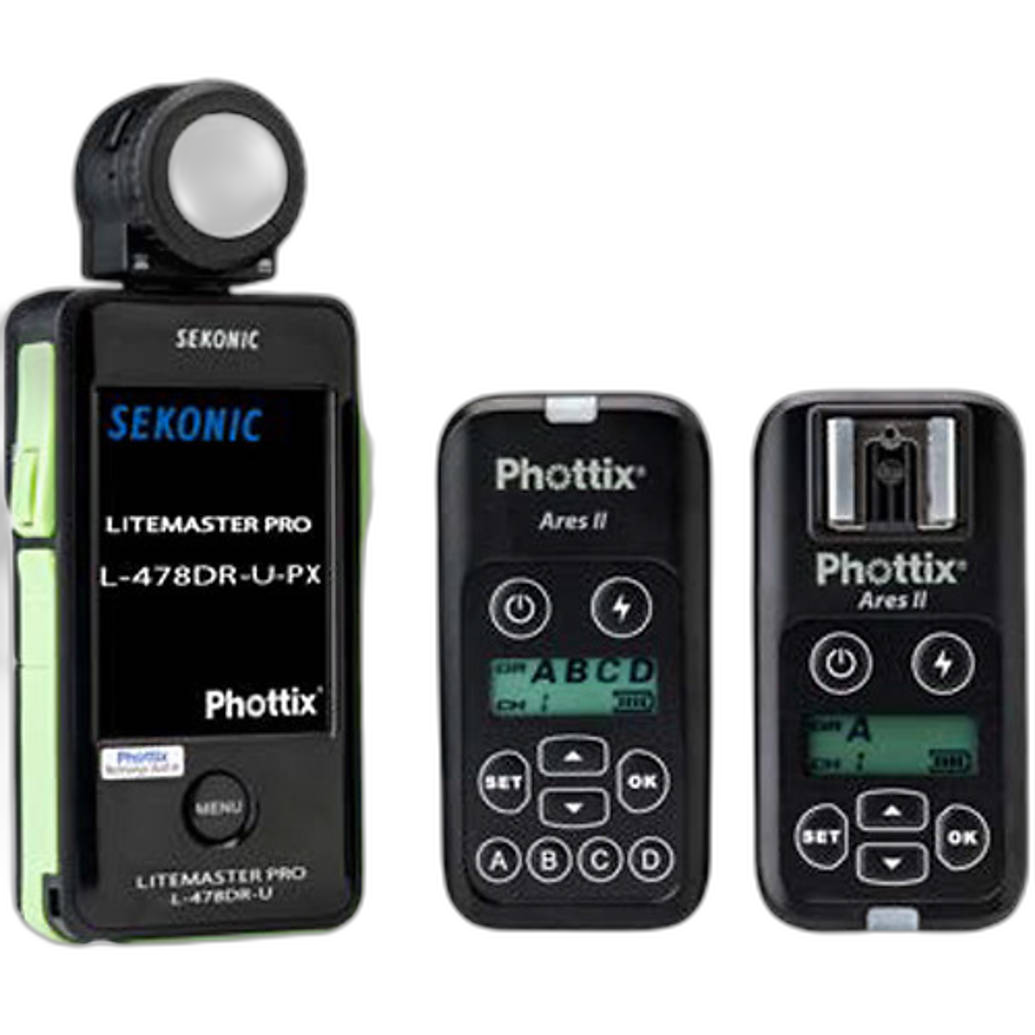

Sekonic L-478DR-U-PX Meter with Phottix ARES II Trigger and Receiver

Product #:
Manufacturer #:
  • Sekonic L-478DR-U-PX Meter
  • With Phottix ARES II trigger and receiver
  • Built-in 2.4 GHz radio system
  • 9 memory settings
  • Ambient and flash light settings
  • PC terminal and mini-USB port
  • Two AAA batteries
  • Phottix ARES II trigger
  • Hot foot mount
  • Phottix ARES II receiver
  • Hot shoe mount
  • Backlit LCD
Screen Size:
2.7" / 6.9 cm
Screen Size:
The size of the screen listed by height and width.
View All Attribute Definitions
The color of the item.
View All Attribute Definitions
Our Price: $399.00

Earn 798 U-REWARDS Loyalty Points

Usually Ships in 7-14 days.

Pickup unavailable at Fairfield, NJ

No sales tax outside of New Jersey

Free Shipping (Continental US Only)

Free Shipping

We offer Free Shipping (7-10 Day delivery) for this item when ordered through our Web Site.

Free shipping is for the 48 Contiguous States only (PO Boxes, FPO/APO, Hawaii, Puerto Rico, Alaska, and Guam excluded).


Meter light wirelessly from the camera with the Sekonic L-478DR-U-PX Meter, which comes with a Phottix ARES II trigger and receiver. The wireless transmitter has an integrated radio to command the 2.4 GHz Phottix Strato II system for simplifying the metering of ambient light and a flash strobe. It allows you to communicate with the included trigger and receiver for up to 492 feet. The meter can work in a light range of -2 to 22.9 EV at ISO 100. You can also use the meter with Canon cinema cameras by using the Cine and HD Cine video modes that let you select the frame rate, shutter angle, and ISO. The meter also works with a PC sync cord. Different operating functions such as memory recall and filter compensation are included to fulfill on-location light adjustment needs. The 2.7-inch touchscreen LCD ensures quick and convenient access to various settings. You can upgrade the firmware of the meter by connecting it to your system via the mini-USB port. As for the Phottix ARES II transmitter and receiver, they offer functionality to 16 channels and 4 groups. You can assign a digital ID code to the transmitter or receiver to avoid interference from other devices. The transmitter and receiver can be synchronized with the shutter at 1/250th of a second. The monochrome backlit LCD makes it easy to review and modify the settings.

Product Reviews

There are no reviews for this product.

Write a review


Display & Viewfinder
Screen Size: 2.7" / 6.9 cm
Screen Size:
The size of the screen listed by height and width.

View All Attribute Definitions

Display Type: Color touchscreen LCD
Display Type:
The type or brand of the screen.

View All Attribute Definitions

Detailed Specifications
ISO Range: 3 to 409,600 in 1/3 steps, plus 850
ISO Range:
Refers to the lowest and highest ISO sensitivity options the user has with a particular camera. (e.g. The Canon 5D Mark III has an ISO Range of 100-25,600)

View All Attribute Definitions

Frame Rate: 1-1,000 fps
Frame Rate:
Not to be confused with burst rate for still images, "Frame Rate" refers to the amount of frames per second (fps) that are recorded during video capture.

View All Attribute Definitions

Type of Receiver: Digital light meter for flash and ambient light
Type of Receiver:
This is the type of receiver.

View All Attribute Definitions

Power: 2 x AAA batteries (alkaline, manganese, lithium, nickel hydride, or nickel)
This is the type of power a device uses.

View All Attribute Definitions

Frequency: 2.4 GHz (Phottix Strato II)
The frequency a radio controlled device can operate on.

View All Attribute Definitions

Shutter Speeds: Ambient Light: 1/64,000 sec to 30 min, plus 1/200 & 1/400 sec, in 1, 1/2, and 1/3 steps; Flash Light: 1/1,000 sec to 30 min, plus 1/75, 1/80, 1/90, 1/100, 1/200, & 1/400 sec, in 1, 1/2, and 1/3 steps
Shutter Speeds:
The amount of time the shutter stay open for exposure. Measured in fractions of seconds.

View All Attribute Definitions

Physical Specifications
Dimensions: 2.2 x 5.5 x 1.0" (57 x 140 x 26mm)
The measurements of an object.

View All Attribute Definitions

Weight: 4.9 oz (140g) without batteries
The physical weight of the item without packaging.

View All Attribute Definitions

Color: Black
The color of the item.

View All Attribute Definitions

Brand: Sekonic
Hardware & Software Data
Interface & Connectivity: 1 x PC sync terminal; 1 x Mini-USB port
Interface & Connectivity:
The connectivity of an interface to a network.

View All Attribute Definitions

In The Box

  •  Sekonic L-478DR-U-PX Meter with Phottix ARES II Trigger and Receiver
  • Anti-Glare Film
  • Hand Strap
  • Soft Case
  • Operating Manual & Data Transfer Software CD-ROM
  • Ares II Flash Trigger Transmitter
  • Hand Lanyard
  • Ares II Flash Trigger Receiver
  • 3.5mm to 3.5mm Sync Cord (15.7")
  • 3.5mm to 6.3mm Adapter
  • Hand Lanyard
