  • Kino Flo 2 ft. 4Bank System
  • 2 ft. 4Bank Fixture With Built-In Barndoors
  • Features 4-Lamp Remote Fluorescent Light
  • Compatible With Separately Available Lamps
  • Tungsten Lamps/Daylight Lamps/Color Lamps (Separately Available)
  • Equivalent Output: 500W
  • 25 ft. Head Extension Cable (Extends Range of 4Bank)
  • Mountable to Stand
  • Lightweight for Hand-Held/Wall Mount Applications
  • Features Removable Optional Center Mount
  • Optional HO (High Output), Flicker-Free Ballasts
  • CRI 95 Color Rendering With True Match Lamps (Sold Separately)
  • UL Listed/CE Approved
  • Optional High CRI Tru Match Lamps
  • 3/8" Pin for 4Bank, Double, Single, & Barfly Fixtures
  • 3/8" Pin Made to Fit In 2.5" Grip Heads
Our Price: $1,202.00

Earn 2404 U-REWARDS Loyalty Points

Pickup unavailable at Fairfield, NJ

No sales tax outside of New Jersey

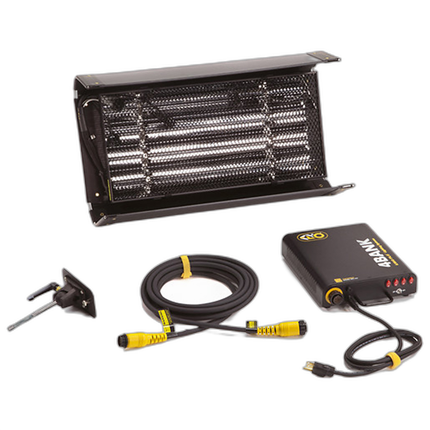

The Kino Flo 2' 4Bank System is made up of a single 2 ft., four-tube fluorescent fixture, a 4Bank ballast for power, a grid (louver) to assist with controlling the light, a 25 ft. head extension cable, & a mounting plate with a long 3/8" pin that matches up with a number of grip heads & gear. This system is extremely portable, making it suitable for location video shots (ex: news gathering), & is equally as suitable for studio applications. The 4Bank was made to provide a soft light source that can be plugged into the wall on location, & features a narrow profile/size. This system can approximate the quality of light from bounced sources, without losing set space during your shoot. Its design allows for the greatest possible flexibility, when working on film production where the gaffer & DP are constantly being challenged to light unique locations. This high-output, high frequency, electronic ballast features universal input voltage from 100-240 VAC, which can operate four lamps, up to 75 ft. between fixture & ballast. Its dedicated switches enable individual control of each lamp, & the ballast sends a high output current to the lamps, allowing them to drive the light as brightly as possible. Its featured high-frequency electronics are designed to prevent any type of flicker.

Kino Flo's engineering provides stable operation, without magnetic hum or cooling fans to interfere with audio recording on set. The Kino Flo lights are compatible with optional True Match lamps (separately available), which are designed to correspond to the spectral distribution curves of video & film cameras, as well as correct to the eye. They are also designed to match colors from daylight sources (HMIs) or quartz units. These features give the user an option of mixing quartz, hard light sources, with fluorescent, soft sources.

Kino Flo 4Bank Fixture (2'):
The Kino 2 ft. 4Bank Fixture is a four-lamp fluorescent light, that has an equivalent output of a 500W softlight, while consuming a fraction of the traditional fixture's electrical draw. The 4Bank Fixture can be paired with a separately available, standard DMX ballast, to provide 2 or 4 lamp switching, to vary the power output, as well as standard/high output settings. This helps to avoid color shifting that can be associated with dimming. Kino Flo's ballasts can be located up to 75 ft. from the head, with no loss of power, which solves the problem of overhead application adjustments. Separately available True Match lamps, which feature a high CRI of 95, come in 3200K or 5600K color balance.

Other Features:

  • Remote, 4-Lamp Fixture with Built-In Barndoors
  • Includes Removable Lamp Harness, Reflector, & Louver
  • Compatible with Daylight/Tungsten/Visual Effects Color Lamps
  • Mounts to Stand/Lightweight for Handheld Applications
  • Can Be Taped to Wall
  • Removable (Optional) Center Mount
  • Optional High Output (HO) Flicker-Free Ballasts
  • Compatible With Separately Available True Match Lamps (3200K/5500K)
  • UL Listed, CE Approved

Product Reviews

There are no reviews for this product.

Write a review


Physical Specifications
Dimensions: Ballast Dimensions: 13 x 9.5 x 3.0" (33 x 24 x 7.6 cm)
The measurements of an object.

View All Attribute Definitions

Dimensions: Fixture Dimensions: 27 x 13 x 3.5" (69 x 33 x 9 cm) with 6.5" Barndoors
The measurements of an object.

View All Attribute Definitions

Weight: Ballast Weight: 4.9 lb (2.2 kg)
The physical weight of the item without packaging.

View All Attribute Definitions

Weight: Fixture Weight: 7.5 lb (3.4 kg)
The physical weight of the item without packaging.

View All Attribute Definitions

Light Fixtures
Mounting: Mounting: Twist-Off Mount With 3/8" Pin
Approvals & Certifications: Approvals & Certifications: UL listed, CE approved
Photometrics: Photometrics: 17 fc @ 8.0' (2.4 m)
Photometrics: Photometrics: 170 lux @ 8.2' (2.5 m)
Photometrics: Photometrics: 456 lux @ 4.9' (1.5 m)
Photometrics: Photometrics: 5.5 fc @ 14' (4.2 m)
Photometrics: Photometrics: 65 fc @ 4.0' (1.2 m)
Photometrics: Photometrics: 69 lux @ 13.1' (4.0 m)
Lamps: Lamps: 4 x F40/T12 Lamp Sockets
Ballast Specifications
Operating Temperature: Operating Temperature: 14 to 122°F (-10 to +50°C)
Output Frequency: Output Frequency: 25 kHz
Plug: Plug: US/North American plug
Lamp Switching: Lamp Switching: 1 - 4
Output Switching: Output Switching: 2 / 4' lamps
Voltage: Voltage: 100 - 240 VAC 50/60 Hz
Amperage: Amperage: F30 / 1.6 A, F20 / 0.9 A
Amperage: Amperage: F75 / 2.6 A, F40 / 2.5 A
Brand: Kino

In The Box

  • Kino Flo 4Bank Fixture (2')
  • Kino Flo Louver for 2ft 4Bank (90°)
  • Kino Flo 4Bank Ballast
  • Kino Flo 41K Mount with 3/8" Pin
  • Kino Flo Extension Cable for 4-Bank Fixture - 25'
