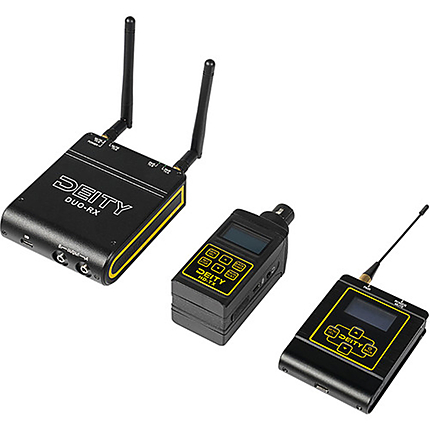

Deity Microphones Deity Connect Interview Kit Wireless Combo Microphone Syst

Key Features
Receiver
- Twin True Diversity antenna arrays for a quad antenna setup
- Internal 10hr Lithium battery
- USB-C rechargeable
- Dual Isolated Channels
- Sound Bag / DSLRs friendly ergonomics
- Weighs about the same as a smartphone
- Remote controls every audio adjustment on the each transmitter
- Three Output Modes (XLR, DSLR, and Mono)
- Separate 1/4″ and 3/8″ mounting points underneath
Transmitter
- Transmitter and recorder built in
- Multiple RF Outputs (10mW, 25mW, 50mW, 100mW, AUTO)
- Guard Rail Analog Limiter
- 75Hz and 150Hz Low Cut Filters
- Boost Audio Frequencies 7KHz – 20Khz
- Assign User ID’s to each transmitter
- 1.3″ OLED display
- Screen and button lock
- Record 24bit/48kHz WAV files to MicroSD card
- Both a XLR input and 3.5mm Mic/Line input
- +48V Phantom Power
- ~10hrs of battery life at 100mW
- ~8hrs record time on a 8Gb MicroSD card
- Headphone jack for live monitoring and listening to playback
- Screen and button auto-lock
- Firmware updatable
overview
Deity created a transmitter that would combine several critical tools that we all carry in our sound kits into the ultimate multi-tool. There have been transmitters with recorders built-in, but none have ever allowed you to monitor the recording and files using headphones plugged into the device.
DEITY’S DATA SAFETY CHECKS
Deity knows data loss is a huge deal. That is why they added three safeguards to help prevent you from losing your valuable recorded audio files. The first safeguard was built into the HD-TX a built in battery. This eliminates the fear of sudden power failure from a battery door being opened or the use of mislabeled batteries. Secondly the HD-TX can predict the internal lithium battery’s power depletion curve so it knows when the battery is about to die, automatically saving the current recording before powering down the unit. Lastly they made it so that even if the power button is pressed in the middle of a recording the unit will stop the recording, save the file to the micro SD card, and then power down. Using the HD-TX screen and button lock can prevent even this last type of user error.
ON-BOARD FILE MANAGEMENT
The HD-TX allows you to playback files, rename them, and delete takes.
File names are determined by the USER ID assigned to the HD-TX so if multiple units are being used file management in post production will be easier to keep organized.
Brand
microphone specifications
| Signal to Noise Ratio | 67 dB |
| Dynamic Range | 110 dB |
| Sound Field | Mono |
| Diaphragm | 0.41" / 10.4 mm |
| Output Connectors | 1 x 1/8" / 3.5 mm TRS Male Unbalanced (Lockable) |
| Operating Principle | Pressure Operated |
| Color | Black |
| Mic Cable Length | 5.25' |
| Frequency Range | 50 Hz to 20 kHz |
| Sensitivity | -40 dBV/Pa at 1 kHz |
| Impedance | 2.2 Kilohms |
| Maximum SPL | 110 dB SPL |
| Operating Voltage | 1.5 to 3 V |
| Capsule | Electret Condenser |
| Form Factor | Lavalier |
| Polar Pattern | Omnidirectional |
wireless receiver specifications
| Operating Temperature Range | 14 to 113°F / -10 to 45°C |
| Form Factor | Portable (Bag Suitable) |
| Weight | 8.7 oz / 248 g |
| Antenna Connector | 2 x 1/4 Wave External, SMA (Top-Mount) / 2 x Internal |
| Audio I/O | 2 x 1/8" / 3.5 mm TRS Female Balanced/Unbalanced Mic/Line Output (Lockable) |
| Dimensions | 3.4 x 4.4 x 1.3" (with Antennas) |
| RF Sensitivity | -86 dBm |
| Mounting Options | Belt Clip, Shoe-Mount (with Included Hardware) |
| Frequency Response | 50 Hz to 20 kHz |
wireless transmitter specifications
| Latency | 19 ms |
| Transmission Frequency | Digital 2.4 GHz |
| Wireless Range | 300' / 91.4 m |
- Deity Microphones Deity Connect Interview Kit 2-Person Wireless Combo Microphone System (2.4 GHz)
- DUO-RX Dual-Channel Receiver
- BP-TX Bodypack Transmitter
- Deity Microphones HD-TX Plug-On Transmitter with Built-In Recorder (2.4 GHz)
- 2 x Lavalier Microphones
- 2 x XLR to 3.5mm Cables
- DSLR Locking Audio Cable
- DUO-RX Sync Cable
- USB Type-C Charging Cable
- USB Type-C to USB Type-A Firmware Update Adapter
- Transmitter Antenna
- 2 x Receiver Elbow Antennas
- 2 x Foam Windscreens
- 2 x Lavalier Tie Clips
- Cold Shoe to 1/4"-20 Adapter
- Waterproof Hardshell Case with Custom Foam Insert
