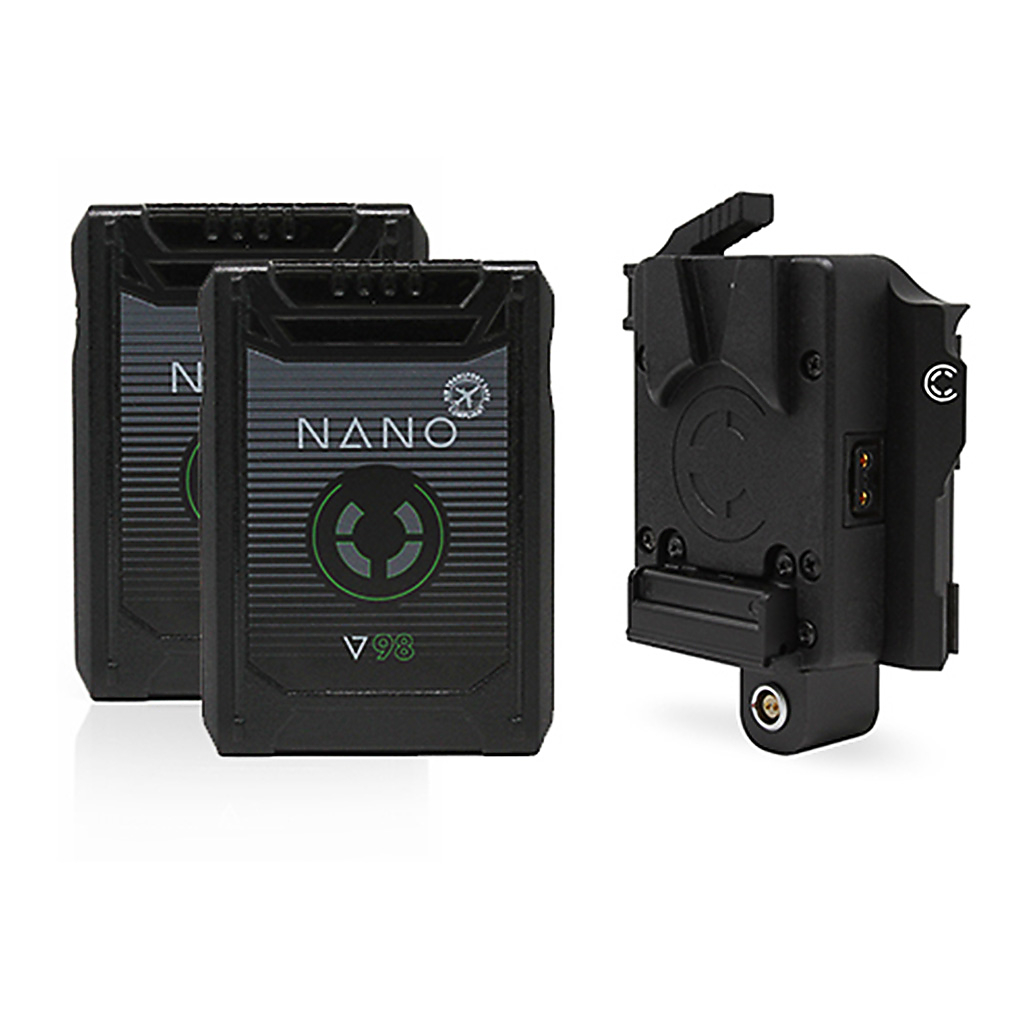

Core SWX NANO Micro 98Wh 2-Battery Kit with CXV-KOMU Plate (V-Mount)

overview

This bundle from Core SWX includes two NANO Micro V-Mount Battery Packs, and one V-Mount Plate that mounts directly to the back of the RED Komodo.

The Nano Micro and X2 Mini are quite possibly the smallest battery/charger combo on the market today. The NANO Micro measures in at less than 4″ in height and 2″ in depth, while weighing a feathery 1.2 lbs., making it the perfect “grab and go” pack for the majority of powering applications. Capable of handling up to a 10A load, consider these packs for lighter camera powering applications, on-board monitors, recorders, wirless tx/rx, etc.

The 14.8v, 98wh capacity allows for the packs to be transported carry-on without restrictions under IATA, ICAO, and UN regulations. The packs have been UN tested and certified, passing UN38.3 certification.

The Core NANO Micro packs feature an on-board unregulated p-tap which can be used to power most 12vdc devices, as well as doubling as a charge input port. The packs also include a 5V, 3A USB for powering/charging mobile devices, and a 4-stage LED gauge to view remaining power.

The CXV-KOMU is a BP to v-mount plate direct mount specifically designed for the RED Komodo camera, allowing use of 14.4V V-Mount batteries and leaving the camera’s DC input available for AC power and battery hot swap. When used with “smart” batteries that pass SMBUS data like Core SWX batteries, the camera will read battery percentage and runtime, providing accurate remaining battery capacity info. It’s equipped with 3 DC output ports: P-Tap, USB, and 2pin Lemo. The plate also has a reinforced V-Mount locking mechanism, making it the most robust V-Mount plate on the market.
