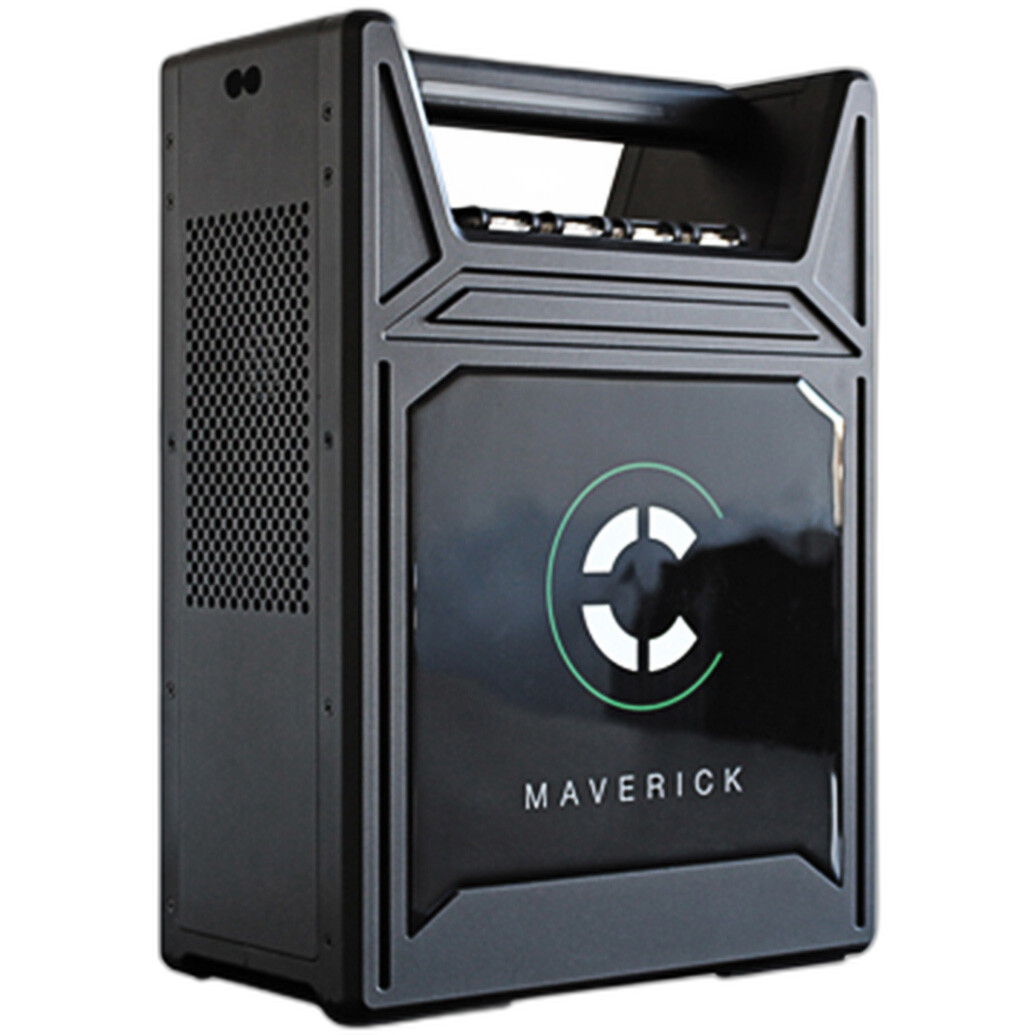

Core SWX Maverick Mobile Power Station

overview

The Core SWX Maverick battery pack is the next generation, all encompassing block battery system for cinema and lighting applications.

Mobile Power Station

Built for high demand situations, the MV6 can sustain up to 20A draw on both 14v and 28v outputs simultaneously, plus provide USB and D-tap outputs. Built with premium Nickel Metal Hydride cells from Japan, this pack will sustain several thousand cycles of usage with minimal degradation, and allow for easy air shipping and travel.

Aux Power

Being a complete mobile power station means you must be able to power all devices on location. The MV6 includes 2 D-tap (12-17vdc) to power auxiliary devices and a 5v USB output to charge mobile devices. The green Smarttap also can provide battery diagnostics on the internal cell packs within the unit, and the USB doubles as a firmware upgrade port allowing fast "drag and drop" updates by plugging in to a PC.

Modular Build

Core SWX designed the Maverick understanding the need for predictive service. The modular build allows for quick service and if necessary, replacement of the charger module and battery cells. Less downtime and labor time, equates to more uptime, usability and ROI.

Friendly Form Factor

Understanding many already have shipping cases from their older block battery packs, the MV6 was designed to fit in legacy shipping cases. With the new MV6, you can use the rear compartment, previously used for old charging stations, for additional cabling and accessories. The Nickel Metal Hydride cell composition allows for easy shipment and air travel.

Backlit Runtime LCD

The Maverick features a Runtime LCD similar to that of our on-board packs. The LCD provides 3 phase status reporting:

• Reports 100w dummy load runtime when not in discharge/charge (Dummy load can be adjusted to suit the need through FW updates via USB)
• Calculates remaining runtime when in use based on actual load
• Calculates remaining charge time when charging.

Internal Charging

The MV6 has a standard IEC AC input for charging from AC Mains. Plug the unit in to 110-240V AC and it will charge back up in 5hrs.

An LED array in the handle illuminates when charging to display charge status from afar. The LED array can also display capacity status when in use. A recessed switch in the handle allows for control of the LED brightness as well as disabling the LED array.

Water Resistant

The Maverick was designed to handle the rigors of productions, like inclement weather and puddles. It's all aluminum modular design provides a robust form while providing up to 7.5" of water resistance.
