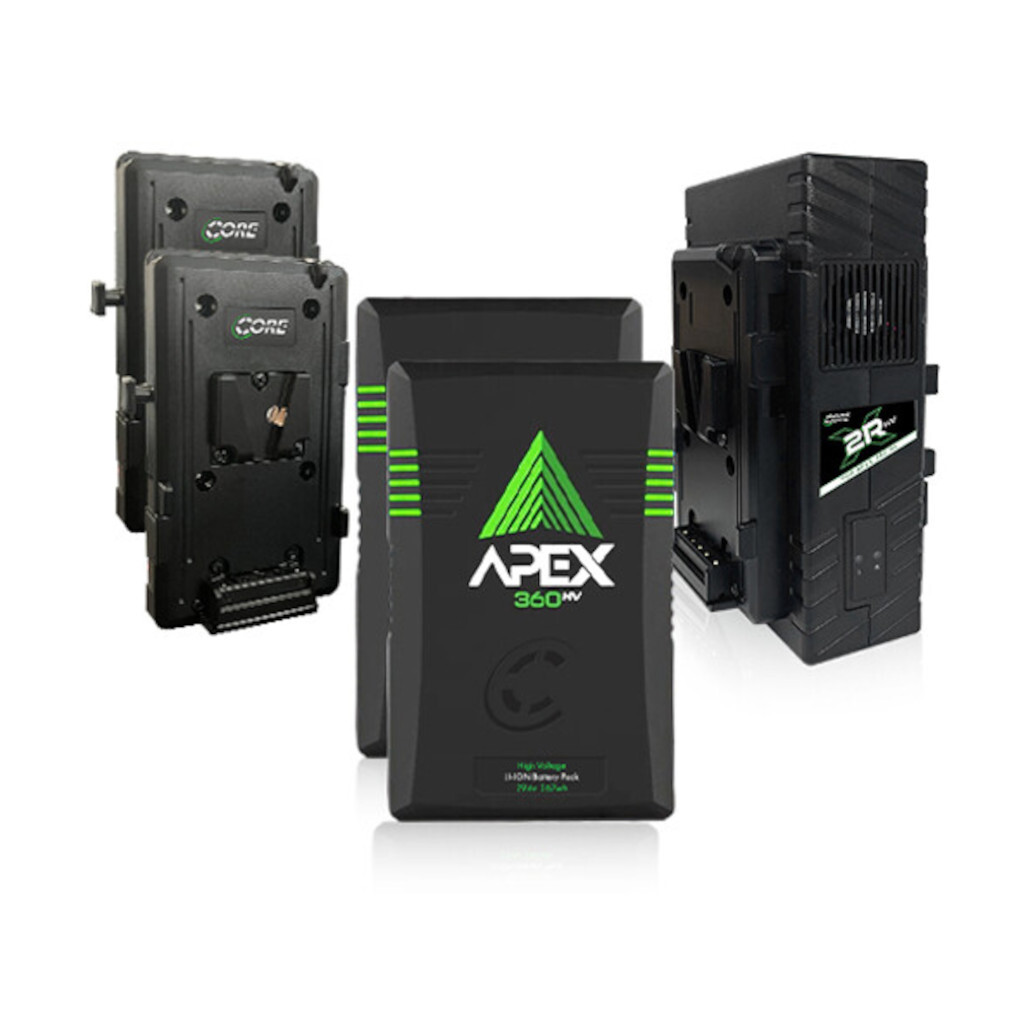

Core SWX Apex Two Battery Starter Kit with Charger - 29.6v Version
Key Features
Batteries
- Created and Designed for Lighting Equipment
- 367Wh Li-Ion V-Mount Battery
- High-Capacity, High-Voltage 29.6V Output
- Supports up to 12A Continuous Draw
- 5-Stage LED Status Gauge
- Approximately 2 Hours of Runtime
Adapter Plates
- Two High-Voltage V-Mount adapter plates
- Works with Helix & APEX High Voltage batteries
- Allows usage of 29.6V APEX HV batteries
- Simple setup with no soldering skills or tools required
- Designed to power aputure 600 series LED
Charger
- For 29.6V APEX High Capacity 360 V-Mount Batteries and Core SWX Helix Max Batteries
- Designed to charge two packs at 2.6A simultaneously
- Allows for single battery charging at 5.2A
- Single Battery Charging at approx 5 hours (Apex packs)
- Double Battery Charging at approx 10 hours (Apex packs)
OVERVIEW
The all-in-one solution to get your Aputure 600-series lighting operating in high voltage with two Apex HV batteries, two Helix direct connect plates, and a HV dual charger. Designed to finally answer the call for a tailored on-board battery solution, the Apex HV battery packs are the ideal power solution for high power LED lighting.
The APX-360HV offers a 367wh Lithium Ion v-mount solution capable of outputting up to 12A continuously as well as providing extended runtimes. With Apex the production team can focus on the video production rather than restricting light usage during the production because of limiting onboard powering options. And with Apex’s continuous 12A load output, the user will enjoy a more “true” runtime while operating the high power LED lighting systems.
The high voltage Apx360hv is capable of delivering even more power under lower current requirements allowing for a more efficient, cooler operation of LED lights which accepts higher voltages.*
With further high voltage LED lighting products continuing to be released the APX-360HV pack future proofs your battery investment. As well, the Apex HV option utilizes Core’s patented Helix system pin set so inadvertently placing the high voltage pack on 14v equipment is of no concern.
Large capacity packs require fast chargers to recharge the packs. Core has developed an economical series of chargers dubbed “X2R” to allow for the Apex system to deliver to even the most budget conscience user. To leverage the high voltage capabilities of the APX-360HV, the pack does require the high voltage variant of the Apex two position charger (#GPX2RHV). The GPX2RHV will also charge Helix MAX V-mount packs.
*Check with the lighting manufacturer to confirm high voltage acceptance(up to DC 34v).
Brand
battery/charger attributes
| Weight | Battery: 3.6lbs<br>Charger: 1.3lbs<br>Adapter Plates: 6.4oz</br> |
physical specifications
| Dimensions | Batteries: 3.6" x 6.3" x 3.8"<br>Charger: 4.5" x 5.5" x 3"<br>Adapter Plates: 3.25" x 5.5" x 0.5"</br> |
power system
| Battery Type | V-Mount |
- 2 x Core SWX Apex High Capacity 29.6v 367wh Lithium Ion V-mount Battery
- 2 x Core SWX Dual Helix/APEX High-Voltage V-Mount Plates
- 1 x Core SWX Rapid Two Position Charger
