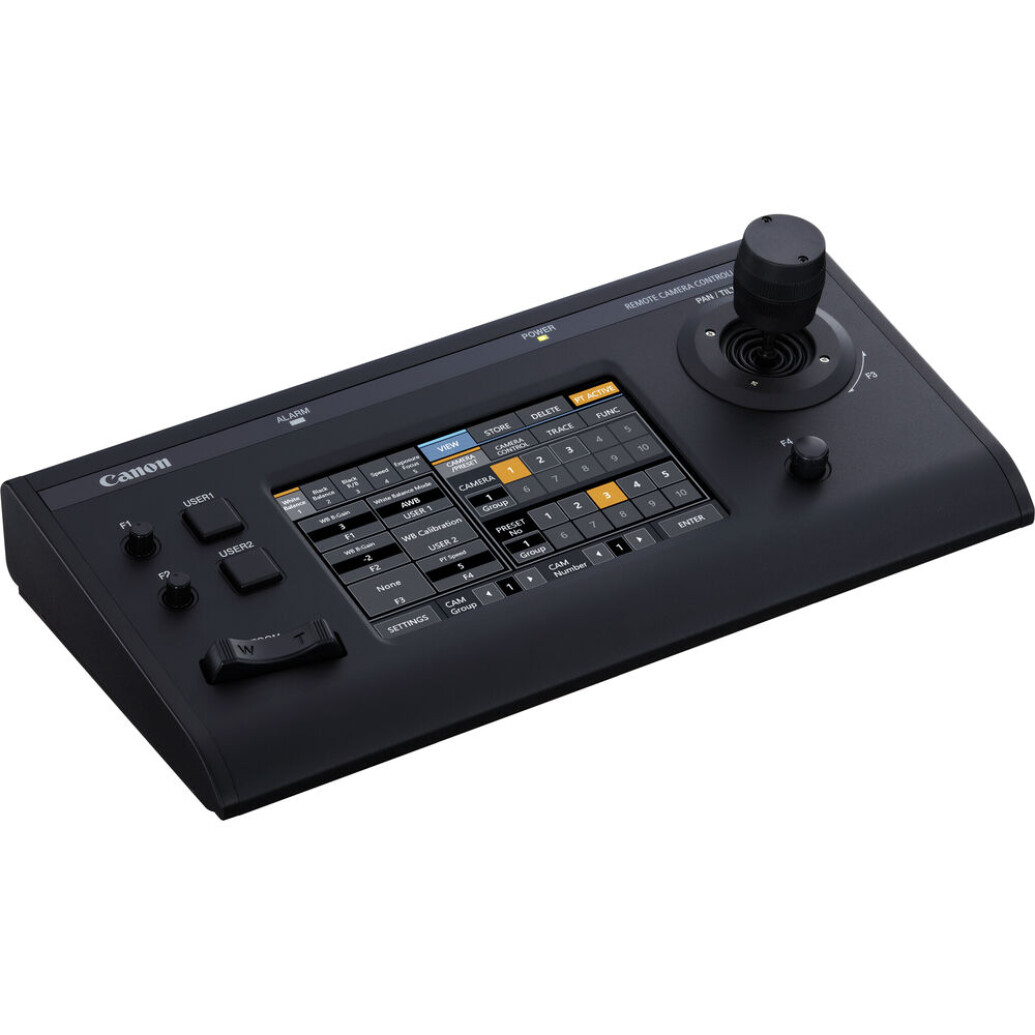

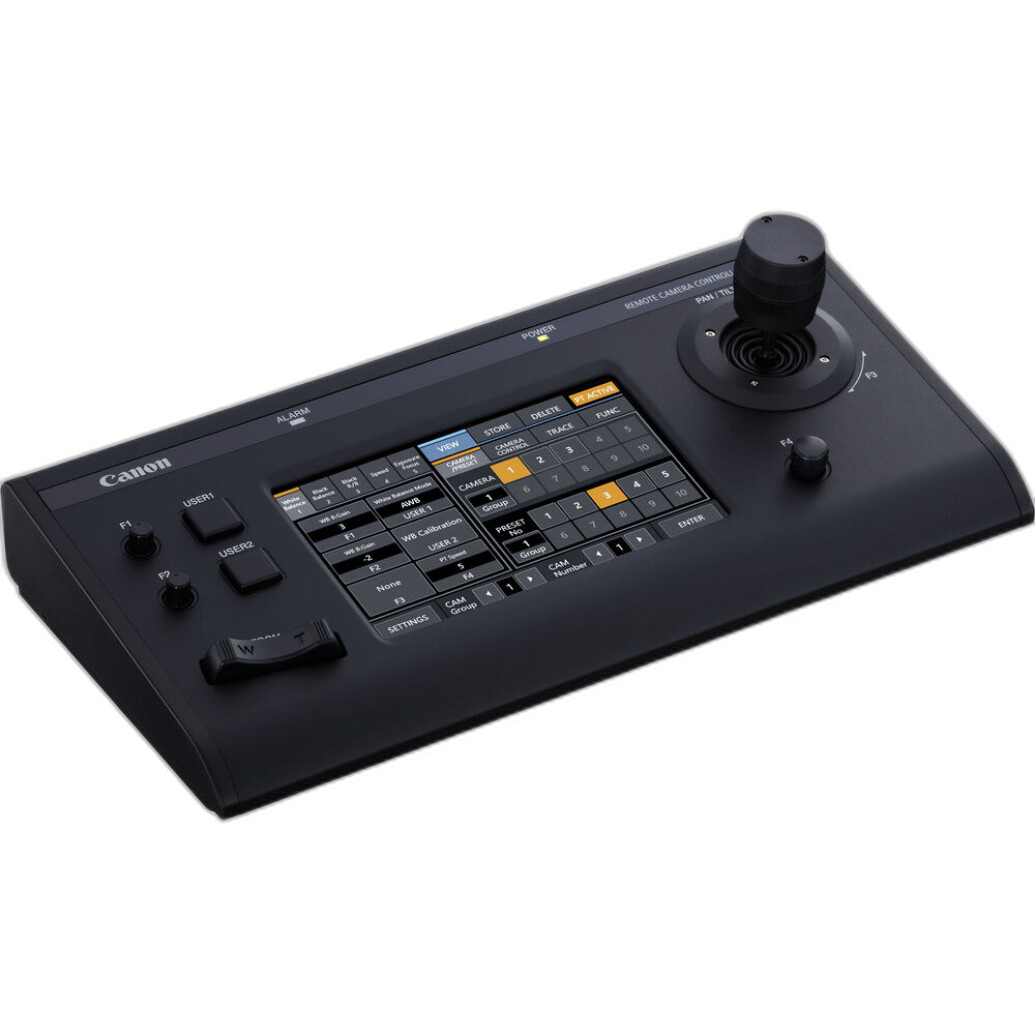

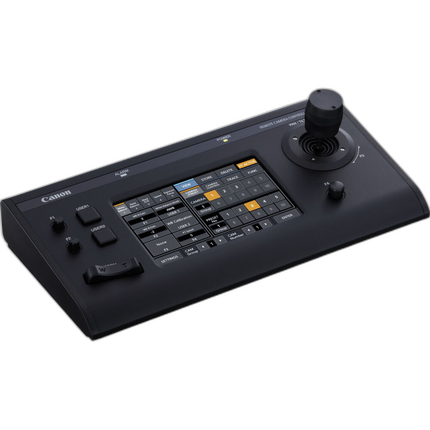

Canon RC-IP100 Touchscreen PTZ Joystick Controller
Key Features
- Control up to 100 Canon Compatible Cameras
- Smooth PTZ Movement and Precise Control for Professional Productions
- Change Camera Function Settings Remotely
- Adjust Pan, Tilt and Zoom
- Equipped with a 7" Touch Screen
- 4 Customizable Buttons and a Control and Zoom Lever
Available for Rent
OVERVIEW
Canon’s RC-IP100 controller provides control for up to 100** supported cameras*. Additionally, through the serial port, the RC-IP100 can control one compatible Canon camera via the NU protocol. The controller is equipped with a large 7” diagonal touch screen, zoom lever and joystick in order to pan, tilt, zoom and change camera picture settings with precise precision. The smooth responsiveness of the joystick allows operators to capture on-air movements with confidence. Pair this controller with a supported Canon PTZ camera to create the ideal camera/controller combination into your video production.
Supported Canon Cameras
- XF605 Video Camcorder (firmware v1.0.1.1 or later)
- C300 Mark II Cinema Camera (firmware v1.0.1.1 or later)
- C300 Mark III Cinema Camera (firmware v1.0.3.1 or later)
- CR-X300 Outdoor PTZ Camera
- CR-X500 Outdoor PTZ Camera
- CR-N300 PTZ Camera
- CR-N500 PTZ Camera
- CR-N700 PTZ Camera
Brand
physical specifications
| Dimensions | 13.8" x 7.2" x 4.3" |
a/v details
| Other I/O | Input/Output: 1x DE-9/DB-9 (Tally)<br>Input: 1x USB-A (3.0/3.1/3.2 Gen 1)</br> |
| Power Connectors | 1 x Barrel / Coaxial |
lens specification
| Weight | Approx. 4.6lbs |
interface
| Connectivity | <b>Control Outputs:</b><br>1x RJ45 (IP Control)<br>1x RJ45 (RS-422)</br> |
monitor specifications
| Display Size | 7" |
detailed specifications
| Compatibility | <b>Controller Supported Cameras:</b> CR-N700,CR-N500,CR-N300,CR-X500,CR-X300, C500 Mark II, C300 Mark III, XF605</br> |
display & viewfinder
| Display Type | 7" Touchscreen |
- RC-IP100 Remote Camera Controller
- AC Adapter
- AC Cable
- Printed Documents
