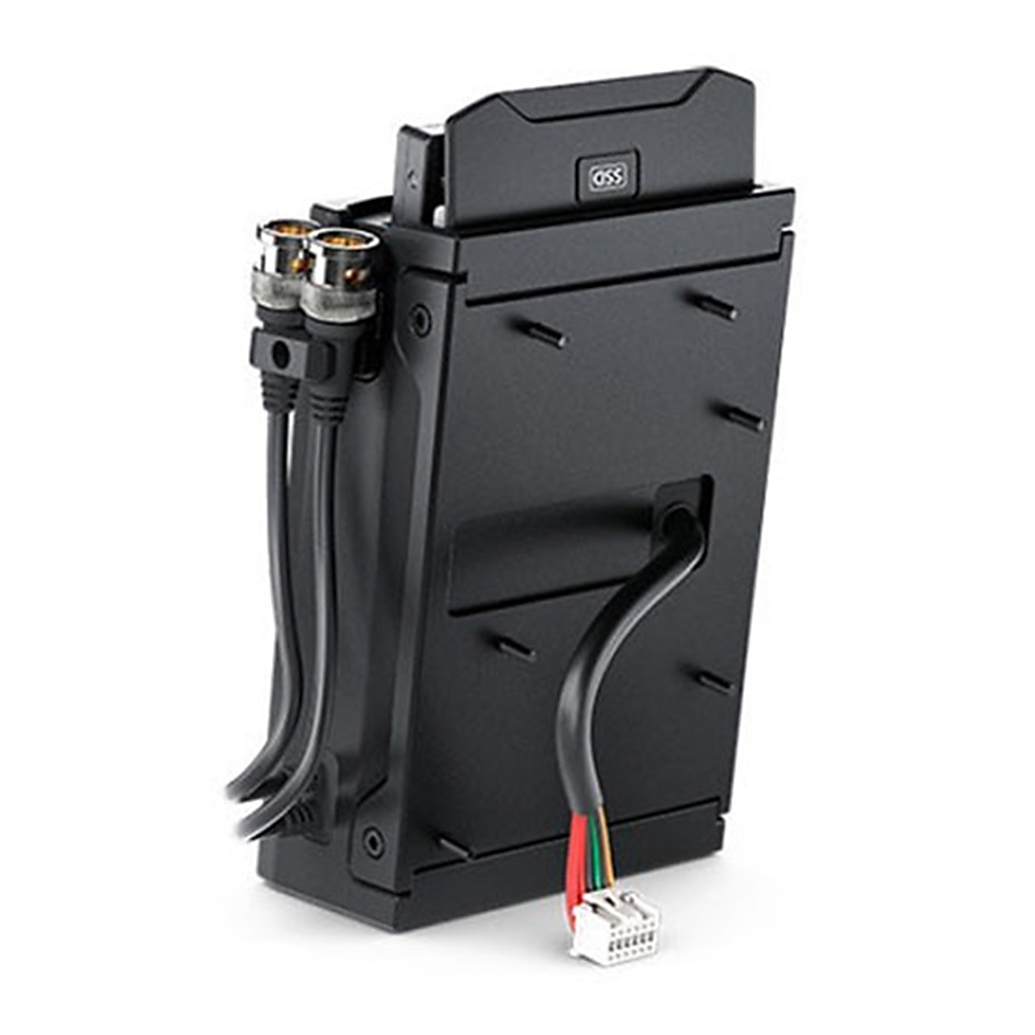

Blackmagic Design URSA Mini SSD Recorder
DISCONTINUED
This product has been discontinued and is no longer available for purchase.
Key Features
- Blackmagic Design URSA Mini SSD Recorder
- Single-Slot 2.5" SSD Card Recorder
- Records CinemaDNG or ProRes Files
- Supports 4K and 4.6K 12-Bit RAW Files
- 6G-SDI Input & Output
- Start/Stop Through Camera Controls
- Molex Connector to Battery Plate
- Attaches Between Camera & Battery
- Color: Black
DISCONTINUED
This product has been discontinued and is no longer available for purchase.
Overview
Use The Blackmagic Design URSA Mini SSD Recorder is designed to assist you in capturing footage, by using 2.5" SSD cards, which are cost-efficient & available to purchase separately. This mini ssd recorder allows you to record CinemaDNG or ProRes files, in resolutions up to 12-bit RAW 4.6K. The single-slot ssd recorder features 6G-SDI input & output, with start/stop functions, which are controlled by the camera. The Mini SSD Recorder fits securely between the URSA Mini & its battery, obtaining power through its battery plate through a 12-pin Molex connector.
Brand
hardware & software data
| Interface & Connectivity | Video Input: 1 x 6G-SDI (BNC), Video Output: 1 x 6G-SDI (BNC), Computer Interface: 1 x USB Type-C |
| Operating Systems & Requirements | Mac: Mac OS X 10.11 El Capitan Mac OS 10.12 Sierra or later Windows: Windows 8.1 or Windows 10 |
power system
| Power Input | 12-pin Molex connector |
physical specifications
| Dimensions | 4.02 x 5.63 x 1.85" (102 x 143 x 47 mm) |
| Weight | 1.3 lb (0.6 kg) |
| Color | Black |
video resolution
| 4K | Up to 4.6K HD video |
a/v details
| Recording Formats | CinemaDNG RAW, CinemaDNG RAW 3:1, CinemaDNG RAW 4:1 ProRes 444 XQ, ProRes 444, ProRes 422 HQ ProRes 422, ProRes 422 LT, ProRes 422 Proxy |
detailed specifications
| Compatible Media | 1 x 2.5" SSD |
- Blackmagic Design URSA Mini SSD Recorder
- Limited 1-Year Warranty
