Accsoon CineView Quad Multi-Spectrum Wireless Video Transmitter

OVERVIEW

The Accsoon CineView Quad is a wireless video transmission system that lets you send a 1080p video signal from the transmitter to dedicated receivers or iOS and Android devices.

Accsoon CineView Quad - The Next-Gen SDI/HDMI Dual Band Wireless Video System

The new Accsoon CineView Quad is the ultimate affordable HDMI and SDI wireless video transmitter and receiver set. Part of the newly launched third generation of Accsoon wireless video transmitters and receivers, the CineView Quad has both HDMI and SDI ports, compact size, amazing performance, and an unbeatable feature set.

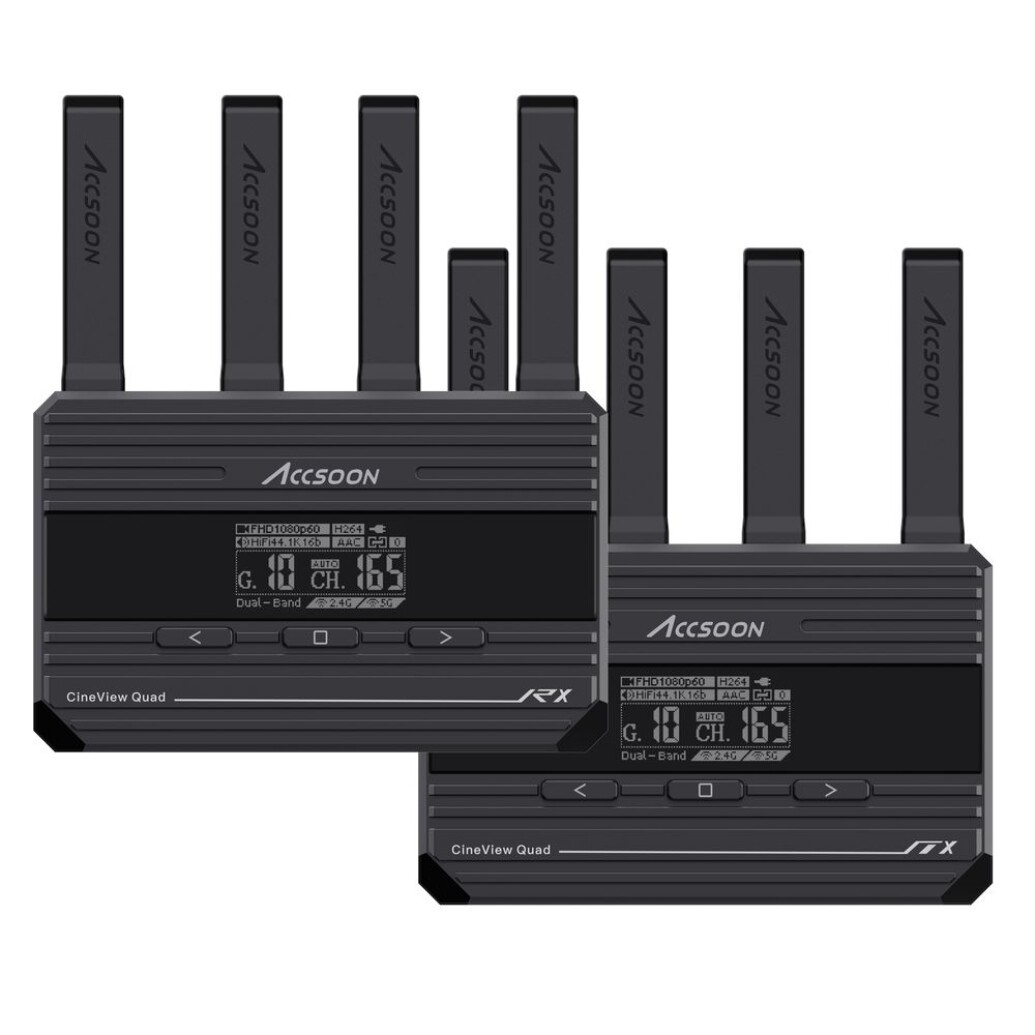

Both the CineView Quad TX and RX have four integrated antennas that neatly fold into the body when not in use. This clever design keeps the units so small they can fit into your pocket.

Twin Image Transmission

The new integrated quad antenna design allows the CineView Quad to use Accsoon’s patented Dual Band wireless technology for the first time in a system at this price point. Unlike other competing systems, Accsoon transmits two identical copies of your camera’s video output on both 2.4GHz and 5GHz frequencies at the same time. When these signals arrive at the RX unit they are instantly combined as needed to create the final high quality video feed. Utilizing both frequencies at the same time it is inherently more stable than its rivals and ensures a robust signal that excels in combatting interference and navigating around or through objects.

The new CineView platform - faster, smaller, cooler

The CineView Quad uses an all-new version of the computing platform from the acclaimed CineEye series. After years of painstaking development, the result is a system that is even faster, smaller and runs cooler than before. As a result, it has best-in-class transmission latency of less than 60ms for almost imperceptible lag.

Range up to 500ft

The CineView Quad has an operating range of up to 500ft/150m. This makes it suitable for a wide range of productions ranging from corporate productions and indie films, through to live events and houses of worship. Filmmakers and content creators at all levels can now enjoy the benefits of wireless monitoring without compromises.

Affordable for any Production

Unbelievably the cost of the CineView Quad TX/RX combined kit is just $529 - far less than one might imagine given the level of technology inside.

Simplicity and Flexibility

Operating the CineView Quad system couldn’t be simpler. Connect your camera and monitor, attach Sony NP-F type batteries or power via the DC ports, then turn on. The CineView quad’s auto-channel selection will even pick the best signal for you to use. All settings can be clearly viewed on the CineView Quad’s 1.3-inch OLED display.

Beautifully constructed

The CineView Quad is superbly built with an elegant design. Both TX and RX are constructed of rugged lightweight aerospace grade aluminum alloy. The design is fanless allowing for easy operation in quiet environments. The units can be mounted via 1/4 thread and a cold shoe mount is supplied in the box.

View on any 4 devices at once

Use up to four receiving devices at the same time in any combination with the same CineView Quad transmitter. Connect your choice of CineView receivers and iOS/Android devices using the Accsoon Go app all at once. Multiple people monitoring on-set has never been easier.

Monitor on iOS or Android using Accsoon Go app

The free Accsoon Go iOS and Android app offers a huge range of monitoring and recording features that enhance your shooting. Enjoy high-end features like Focus Peaking, Histogram, False Color, viewing with 3D LUTs and HD recording of the video for instant review and social media sharing. A new feature will even allow recording of the image with LUT applied - perfect for a quick creative look for shared video, or to transform footage recorded Log in-camera to Rec.709 for client review.
