Westcott Flex Cine Daylight LED X-Bracket Kit 1 x 1 ft

Westcott
Product #:
WCG7633
Manufacturer #:
7633
UPC:
810008710302
  • Westcott Flex Cine Daylight LED X-Bracket Kit
  • 1-Light, Flexible LED Kit
  • 5600K Daylight Output
  • 1 x 2 ft. LED Mat
  • Mat Designed to Fit Into Tight Spaces
  • Adjustable Color Temperature
  • Impressive CRI of Up to 97 (TLCI up to 98)
  • Powerful Output Up to 2200 Lux at 1 Meter
  • Metal Dimmer Dimmer Features Intuitive Local/WiFi Controls Via Mobile app
  • Battery Type: Compatible With 14.4V to 26V V-Mount Batteries
  • Mat Corners Equipped With Magnets/Grommets for Quick Hanging
  • Includes X-Bracket Mount & 1/4-Stop Diffuser
  • Water-Resistant IP64
  • Compact Design
Color:
Color: Daylight
Color:
The color of the item.
View All Attribute Definitions
Power Distribution:
Dimmer Output Voltage: DC 12~24V
Our Price: $599.90

Earn 1200 U-REWARDS Loyalty Points

In Stock

Pickup unavailable at Fairfield, NJ

No sales tax outside of New Jersey

Free Shipping (Continental US Only)

Free Shipping

We offer Free Shipping (7-10 Day delivery) for this item when ordered through our Web Site.

Free shipping is for the 48 Contiguous States only (PO Boxes, FPO/APO, Hawaii, Puerto Rico, Alaska, and Guam excluded).

Overview

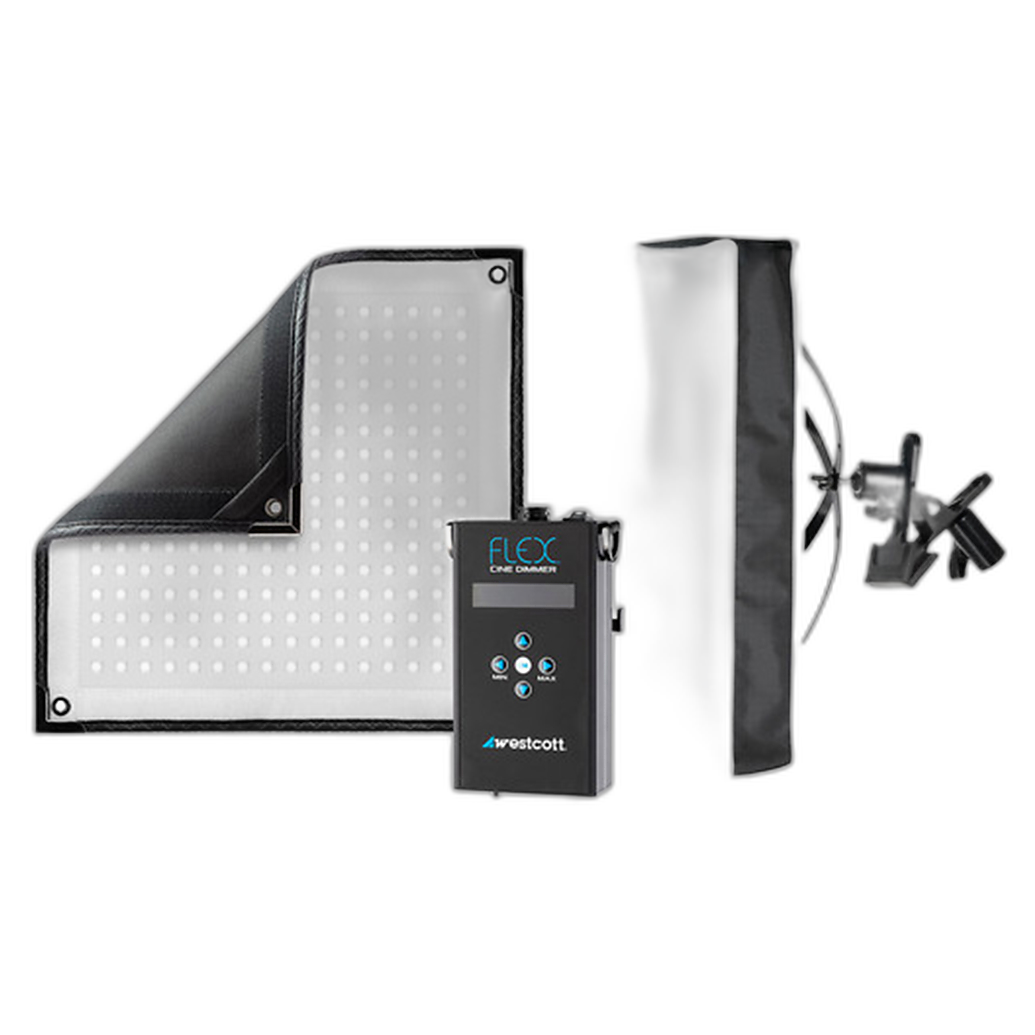

The Westcott Flex Cine Daylight LED X-Bracket Kit is designed to meet the needs of filmmakers, by producing an outstanding quality of light, perfectly balanced at 5600K Datlight. The included Flex Cine LED mat features a compact design, with a thickness of only 1/3", and a weight of less than 3 lbs. Its compact, physical design makes it ideal for use in tight spaces, concealing during a shoot, & good for storage and travel.

The Flex Cine LED mat features an adjustable light spread, up to 360 degrees, & is designed with built-in mounting options. The mat is designed with "hook-&-loop" edging, as well as strong/magnetic corners, & metal grommets for hanging the mat.

The Flex Cine Daylight LED mat is able to produce a brighter output than some of the other LED mats on the market, by offering a great quality of light with accurate output up to 96 CRI (96.5 TLCI). It also offers a flicker-free performance, up to 960 fps (frames per second).

The physical design of the LED mat is not only compact, but also extra durable. Its design features a water-resistant IP 64 rating throughout the mat, up to the connector.

The Flex Cine LED mat connects to a Flex Cine Dimmer, using heavy-duty cables that feature TE-9 pin connectors. The cables feature "Mat Sensing Technology", which allows the Flex Cine Dimmer to auto-detect which Flex LED mat is connected, enabling the ability to customize the available controls & specify the neccessary voltage to operate the light.

The Flex Cine Dimmer is specially designed to control both the Flex Cine Bi-Color mat, and Daylight mat, up to 1x2 ft. It can also be used with original Flex 1x1 ft. and 1x2 ft. LED mats via a legacy adapter cable (sold separately). This LED Dimmer also features a compact design, which features a heavy-duty/lightweight aluminum enclosure, making it secure for travel as well. The Dimmer can be mounted to a stand through its built-in 1/4"-20 thread, or hung with the removable d-ring shoulder strap. The Flex Cine Dimmer features on-board controls, which provides you with the ability to adjust the light intensity from 0-100% output. When it is paired with flexible bi-color LED mats, the dimmer is able to adjust the color temperature from 2800-6000K, and offers 4 customizable presets. The dimmer can be powered by an in-line AC Adapter (Included), Flex Cine Wireless DMX Dimmer AC Adapter (Sold Separately), 14.4-26V V-mount battery (Sold Separately), or D-Tap battery via D-Tap to D-Tap cable (Sold Separately).

Product Reviews

There are no reviews for this product.

Write a review

Specifications

Brand
Westcott
Power Requirements & Consumption
Rated Voltage: Volts: 13-29V DC
Rated Voltage:
An electromotive force or potential difference expressed in volts. Batteries are sources of voltage in many electric circuits

View All Attribute Definitions

Detailed Specifications
Mounting Options: Mount Type: 1/4"-20 Female Thread
Mounting Options:
The various types of mounts available to attach a lens to a camera body.

View All Attribute Definitions

Other Features: Color Temperature (K): 5600K
Other Features:
Any other special feature found on a camera or camcorder.

View All Attribute Definitions

Other Features: Diffusion Density: 1-Stop
Other Features:
Any other special feature found on a camera or camcorder.

View All Attribute Definitions

Other Features: Flicker Free: Yes
Other Features:
Any other special feature found on a camera or camcorder.

View All Attribute Definitions

Other Features: Lamp Life: 50,000+ hrs.
Other Features:
Any other special feature found on a camera or camcorder.

View All Attribute Definitions

Other Features: Operating Temperature: 14°-113°F / -10°-45?
Other Features:
Any other special feature found on a camera or camcorder.

View All Attribute Definitions

Connectors: USB Port: USB Type-C
Connectors:
These are audio or video cables used to connect a camera or videocamera to another source.

View All Attribute Definitions

Cable Length: Power Cord Length: 16 ft.
Cable Length:
The length of the cable.

View All Attribute Definitions

Power: Dimmer Max. Watts: 100W
Power:
This is the type of power a device uses.

View All Attribute Definitions

Power: Power Adaptor: 24V 120W
Power:
This is the type of power a device uses.

View All Attribute Definitions

Power: Watts: 55W
Power:
This is the type of power a device uses.

View All Attribute Definitions

Physical Specifications
Weight: Weight: 7.1 lbs. / 3.2 kg
Weight:
The physical weight of the item without packaging.

View All Attribute Definitions

Height: Height: 4.6" / 11.7 cm
Height:
The distance of an object from top to bottom.

View All Attribute Definitions

Color: Color: Daylight
Color:
The color of the item.

View All Attribute Definitions

Power System
Power Input: Dimmer Input Voltage: 14.4~26V
AC Adapter: Power Type: AC/DC
AC Adapter:
The type of AC adapter.

View All Attribute Definitions

Power Distribution: Dimmer Output Voltage: DC 12~24V
Brand
Brand: Brand: Westcott

In The Box

  • Westcott Flex Cine Daylight LED X-Bracket Kit (1 x 1')
  • Flex Cine Daylight Mat (1 x 1')
  • AC Adapter
  • Power Cord
  • Dimmer
  • Shoulder Strap
  • Flex X-Bracket Mount for Flex 1x1' Mat
  • 1/4-Stop Front Diffusion Cloth for Flex 1x1' X-Bracket Mount
  • Cable Tie
