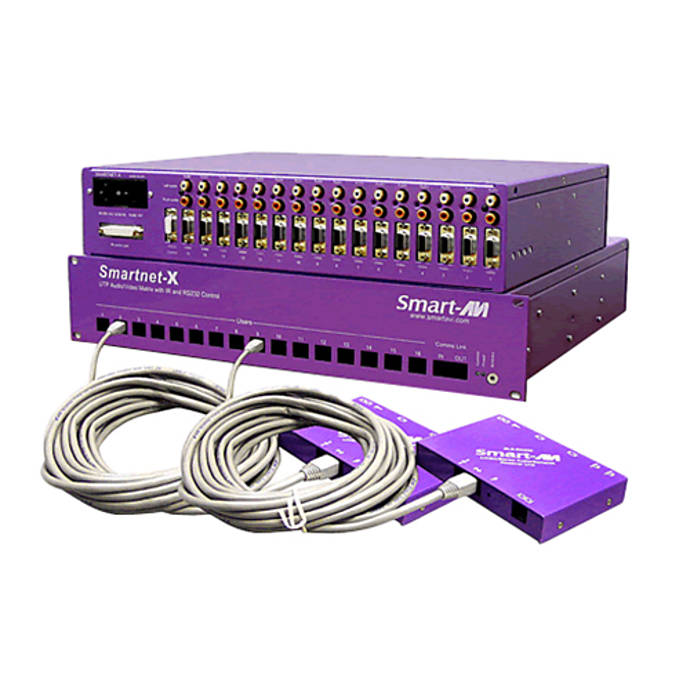

Smart-AVI Smartnet-X UXGA/AUDIO/IR over CAT5 (16x16) Matrix Switch

The Smart-AVI Smartnet-X SNX16X16S is a 16x16 matrix switch engineered to distribute UXGA video, audio, and IR control over CAT5 infrastructure. Built for professional A/V environments, it enables installers and system integrators to route any connected source to any connected display or destination, making it well suited for conference facilities, training rooms, control centers, digital signage networks, education spaces, and other installations that require centralized signal management.

Unlike simple splitters or fixed-routing extenders, a matrix switch provides far greater flexibility. With the Smartnet-X 16x16 platform, users can dynamically assign one source to one display, one source to multiple displays, or different sources to different outputs at the same time. This makes it especially useful in environments where presentation needs change frequently or where multiple operators need access to a shared pool of computers and A/V devices.

The Smartnet-X series is centered around efficient transmission of high-resolution analog computer video together with audio and IR control signals over CAT5 cabling. This approach helps reduce cable bulk, streamlines installation through structured wiring, and allows equipment to be placed more conveniently throughout a building or facility. The 16x16 architecture is intended for larger systems that require a high number of inputs and outputs without sacrificing routing flexibility.

• 16 inputs x 16 outputs matrix routing
• Transmits UXGA video over CAT5
• Supports accompanying audio transport
• Includes IR signal distribution/control capability
• Designed for centralized professional A/V switching
• Suitable for rack-based integration in commercial systems

A 16x16 matrix switch is ideal when a project needs scalable routing beyond basic point-to-point extension. In a boardroom complex, for example, multiple PCs, media players, or control devices can be connected as inputs while numerous displays, projectors, or remote receiver locations are connected as outputs. Operators can then change assignments as needed without physically reconnecting cables. This saves time, reduces wear on connectors, and supports more professional workflow management.

For education and training applications, the system can feed a single instructor computer to many rooms, or different inputs can be assigned to different classrooms simultaneously. In security or monitoring environments, multiple control stations and visual endpoints can be reconfigured quickly as operational requirements evolve.

One of the strongest advantages of the Smartnet-X platform is its ability to combine several signal types over category cable infrastructure. UXGA support makes it relevant for high-resolution RGBHV-style video distribution in legacy and specialized workstation environments, while audio transmission allows associated sound to follow the video signal path. IR support adds another layer of control by enabling remote operation of source devices or integrated system behavior in installed environments.

Using CAT5 cabling can simplify structured installations compared with running separate bulky analog video cables over long distances. It can also improve serviceability, particularly in commercial buildings already wired around category cable runs and patching systems.

• Conference and meeting facilities: Route multiple presentation sources to projectors and flat panels in different rooms.
• Educational campuses: Send instructor stations or lab systems to remote classrooms and training spaces.
• Digital signage: Manage multiple content sources and assign them across a network of displays.
• Control rooms: Centralize source routing for operators who need access to multiple systems.
• Industrial and institutional A/V: Support long-distance signal transport in facilities where equipment rooms are separated from endpoints.

Integrators often choose matrix systems like the Smartnet-X because they offer cleaner cable management and easier system expansion. Instead of directly wiring each source to each destination, all devices can terminate at a central switch. This enables simpler troubleshooting, cleaner rack layouts, and more efficient upgrades when sources or displays change over time.

The inclusion of audio and IR transport also helps minimize the number of separate subsystems required in an installation. By consolidating signal routing into one professional device, the system can reduce overall complexity in many permanent A/V deployments.

Products in this category are generally intended for professional integration rather than casual consumer use. Buyers should expect to deploy the Smartnet-X in conjunction with compatible transmit/receive infrastructure, category cable runs, displays, source devices, and control systems as required by the application. Because this is a specialized matrix switch for UXGA/audio/IR over CAT5 environments, it is best suited to installations that still rely on analog computer-video distribution or that are maintaining an existing Smart-AVI-style infrastructure.

Before deployment, it is advisable to verify connector types, endpoint hardware requirements, maximum supported transmission distance for the installed cabling quality, and any receiver/transmitter compatibility within the Smartnet-X ecosystem.

• CAT5e or CAT6 cabling for structured runs
• Rack shelves or rack hardware for equipment-room installation
• Compatible Smart-AVI receivers/transmitters or endpoint modules, if required by system design
• UXGA/VGA breakout or interface cables for source and display connections
• Audio patch cables for analog audio integration
• IR emitters/receivers or control accessories for remote command routing
• Power conditioning or UPS protection for mission-critical installations

• Label every input and output clearly during installation to simplify ongoing routing changes.
• Use high-quality category cabling and proper terminations to help maintain signal integrity.
• Keep source devices and displays documented in a routing chart for faster troubleshooting.
• Test video, audio, and IR paths independently during commissioning.
• If integrating into an older analog A/V environment, verify the exact resolution and sync requirements of connected displays.

This is a used item in Good condition (80-90% of original condition). Equipment in Good condition will show a small amount of cosmetic wear and blemishes from regular use, but remains in proper working order. Expect normal signs of handling such as light exterior marks or minor finish wear consistent with professional installed equipment. Used items are warrantied by us for 180 days under the terms of the manufacturer's original warranty.

The Smart-AVI Smartnet-X UXGA/AUDIO/IR over CAT5 (16x16) Matrix Switch is a highly specialized professional A/V routing component. It is best matched to users maintaining or expanding an installed analog UXGA distribution system, or those needing centralized matrix control for video, audio, and IR over category cable. If your project requires modern all-digital HDMI, HDBaseT, or IP video workflows, a different product category may be more appropriate; however, for legacy analog infrastructure and institutional A/V routing, the Smartnet-X remains a purpose-built and practical solution.
