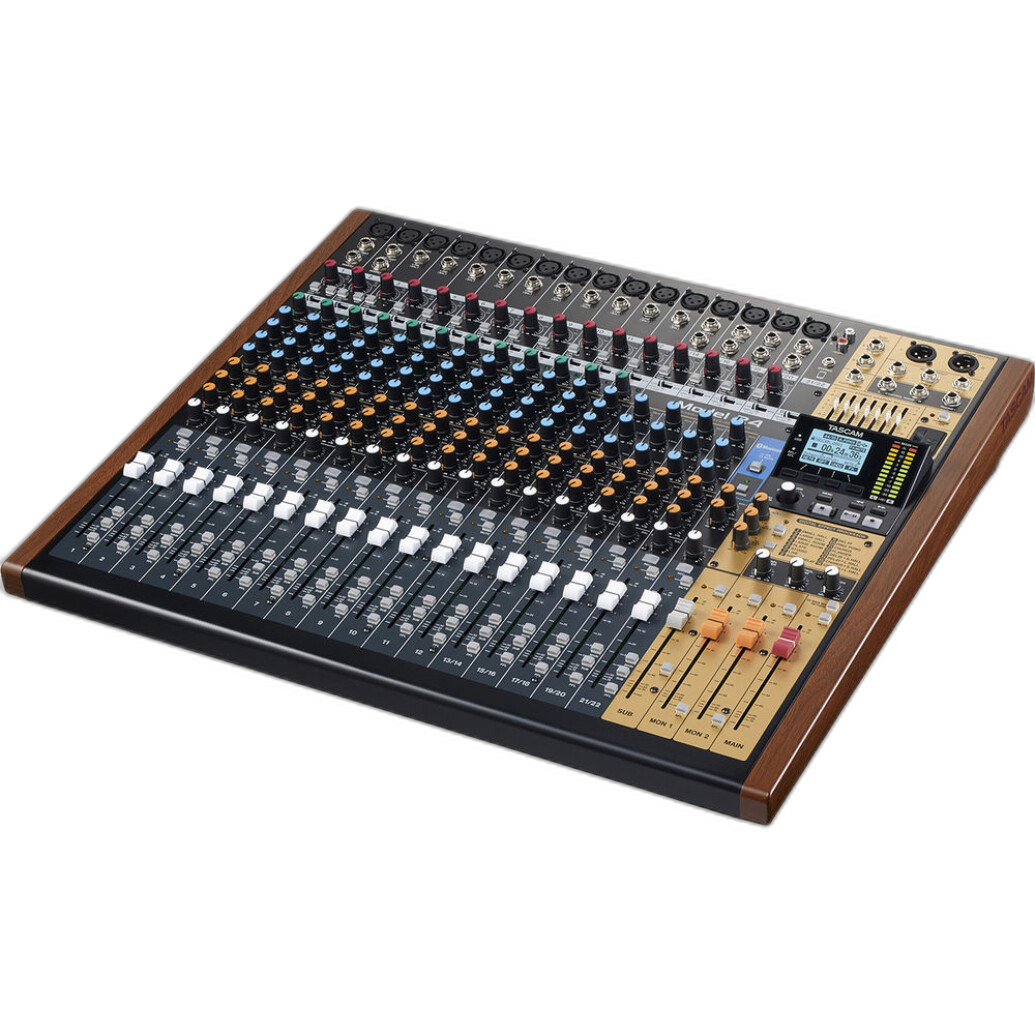

Tascam Model 24 - Digital Mixer, Recorder, and USB Audio Interface
Key Features
- Hybrid Mixer, Recorder, and Audio Interface
- 24-Track Recorder and Playback
- Ideal for Live Audio Recording and Recording Projects
- 22x Input Channels and 16x Microphone Preamps
- 20x Line Inputs (12 Mono and 4 Stereo)
- 7-Band GEQ for Main or Monitor Outputs
- Wireless Bluetooth Connectivity
OVERVIEW
Tascam has been continuously providing industry-leading recording solutions for decades, such as Tascam 38 Open Reel 8-track, the DA-88 Digital 8-track and the legendary Portastudio Cassette and Digital Multitrack recorders. Tascam now builds on this legacy to deliver a new classic: the Model 24 Multitrack Recorder/Mixer/Interface. Whether used for rehearsal, live shows or studio production, this triple-function recording console perfectly meets the needs of today's working and recording musician.
Simple Intuitive Design
Our glance is all you need. The Tascam Model 24 was developed for easy operation, with everything you need placed right at your fingertips. 100mm faders allow for precise control over volume. A full set of familiar EQ and Auxiliary knobs remove the need for menu diving, and all input/output connections are on the surface for quick and easy access.
Tascam's Revolutionary Recording Technology
Featuring 16 high-grade Tascam mic preamps in addition to multiple sets of stereo line inputs, the Model 24 delivers studio quality audio performance right from the start. When it's time to record the Tascam Model 24 allows musicians and engineers to capture up to 24 tracks simultaneously (at 24bit/48kHz resolution) directly to the SD card, with the ability to punch in/out eight tracks at the same time. And once the take is done, the Model 24 can easily playback any or all of the recorded tracks through the console for mixdown.
Flexible Connectivity
In addition to the studio quality mic preamps and powerful EQ and routing options, the Model 24 features a dedicated stereo channel 1/8", dual RCA and Bluetooth connectivity. This allows users to easily integrate mobiles devices into the mix for rehearsal playback, walk-in music and more. Finally, the Tascam Model 24 can also act as a powerful audio interface, and connects directly to your PC or Mac for easy integration with your DAW of choice.
Durability and Reliability
Designed to be both lightweight and rugged, the Model 24 can easily be carried from studio to stage with the confidence that Tascam's legendary reliability will keep the music going.
Brand
detailed specifications
| OS Supported | macOS 10.11<br>macOS 10.12<br>macOS 10.13<br>Windows 7<br>Windows 8.1<br>Windows 10<br><i>*As of November, 2021: Check with manufacturer for the most up-to-date compatibility</i></br> |
| Impedance | 1/8" (3.5mm) Inputs: 10 Kilohms<br>Insert Return: 10 Kilohms<br>Insert Send: 100 Ohms<br>Line Inputs: 22 Kilohms (Balanced)<br>Mic Inputs: 1.8 Kilohms<br>RCA Inputs: 10 Kilohms<br>XLR Main Outputs: 100 Ohms<br>Control Room/FX/Monitor/Subgroup Outputs: 100 Ohms</br> |
| USB Port | 1 x USB-B (Class-Compliant) |
| Power Requirements | AC Input |
| Connectors | Analog: 20x 1/4" TRS Balanced Line Input<br>1x 1/8" (3.5mm) TRS Unbalanced Stereo Input<br>1x Stereo RCA Coaxial Unbalanced Input<br>1x 1/4" TRS Headphone Output<br>2x 1/4" TRS Subgroup/Bus Output<br>2x 1/4" TRS Monitor Output<br>1x 1/4" TRS FX Output<br>2x 1/4" TRS Control Room Output<br>2x 1/4" TRS Unbalanced Insert In/Out</br> |
a/v details
| Operating Temperature | 41 to 95°F (5 to 35°C) |
| XLR Input | 16x XLR 3-Pin Balanced Mic Inputs |
physical specifications
| Dimensions | 22.7" x 20.2" x 4.4" |
| Weight | 22lbs |
microphone specifications
| Wireless Connectivity | Bluetooth |
- Tascam Model 24 - Digital Mixer, Recorder, and USB Audio Interface
- Power Cord
