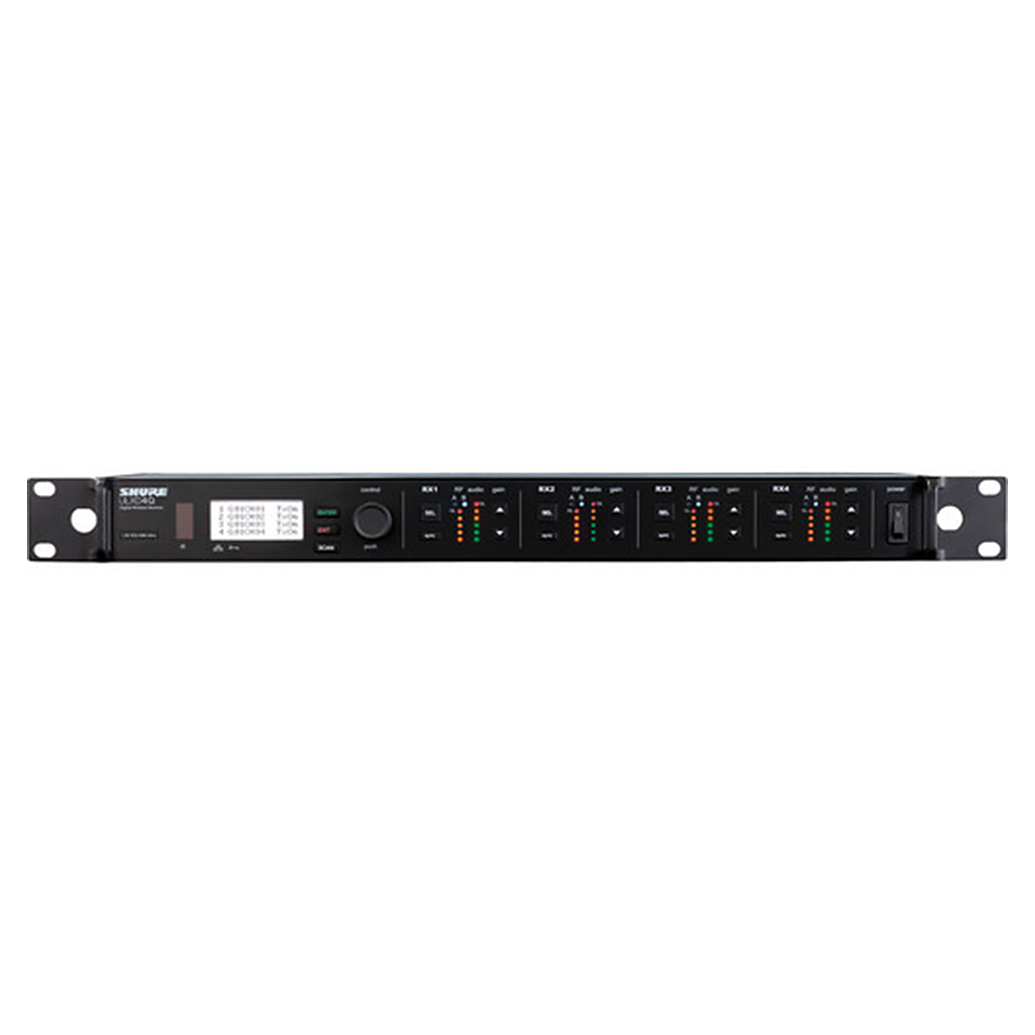

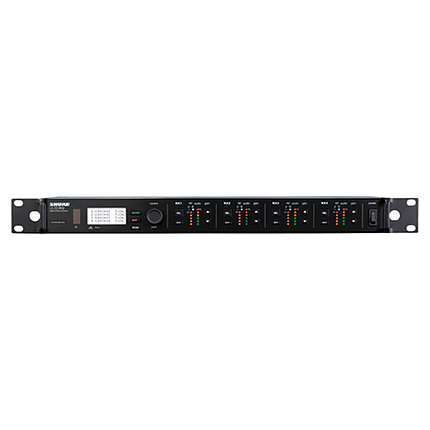

Shure ULXD4Q Quad-Channel Digital Wireless Receiver (G50: 470 to 534 MHz)

Overview

The Shure ULXD4Q Quad-Channel Digital Wireless Receiver is designed to feature four wireless channels, with independent gain control, XLR outputs, & LED meters. The ULXD4Q operates in Shure's G50 band (470 -534 MHz), & is capable of handling 24-bit/48 kHz audio. The ULXD4Q provides AES-256-bit encryption to make sure your wireless signal is kept secure.

The ULXD4Q is designed with dual Ethernet ports, which allow multiple units to share the RF signal, & to be networked/controlled together via Shure's "Wireless Workbench 6" software. Each channel can provide up to 60 dB of adjustable gain, while the dual antennas are capable of digital predictive switching diversity, to help prevent interference & signal dropouts. The unit can be mounted with the included rack hardware.


• Four receivers/1RU metal chassis/Internal power supply
• Individual gain controls/LED meters/ XLR outputs for each channel
• Up to 64 MHz tuning range (region dependent)
• Digital predictive switching diversity
• High Density mode (ULX-D systems simultaneously operate significantly more channels up to 30 meters)
• RF cascade ports (distribution of RF signal to another unit)
• Optimized scanning finds, prioritizes, & deploys the cleanest frequencies to transmitters over IR sync
• Ethernet networking (for streamlined frequency coordination/deployment across multiple receivers)
• Interference detection and alerts provided on both the receiver and WWB6
• Wireless Workbench 6 (WWB6) software for coordination/monitoring/control
• AMX/Crestron control
• Intuitive front panel LCD menu & controls with lockout feature
• Upgraded LCD with adjustable contrast and brightness
• Audio/RF LED meters with audio indicator
• Remoteable 1/2 wave antennas
• Switchable mic/line output level
