Shure UA844+SWB/LC Wideband Antenna Distribution System and No Antenna 470 to
Overview

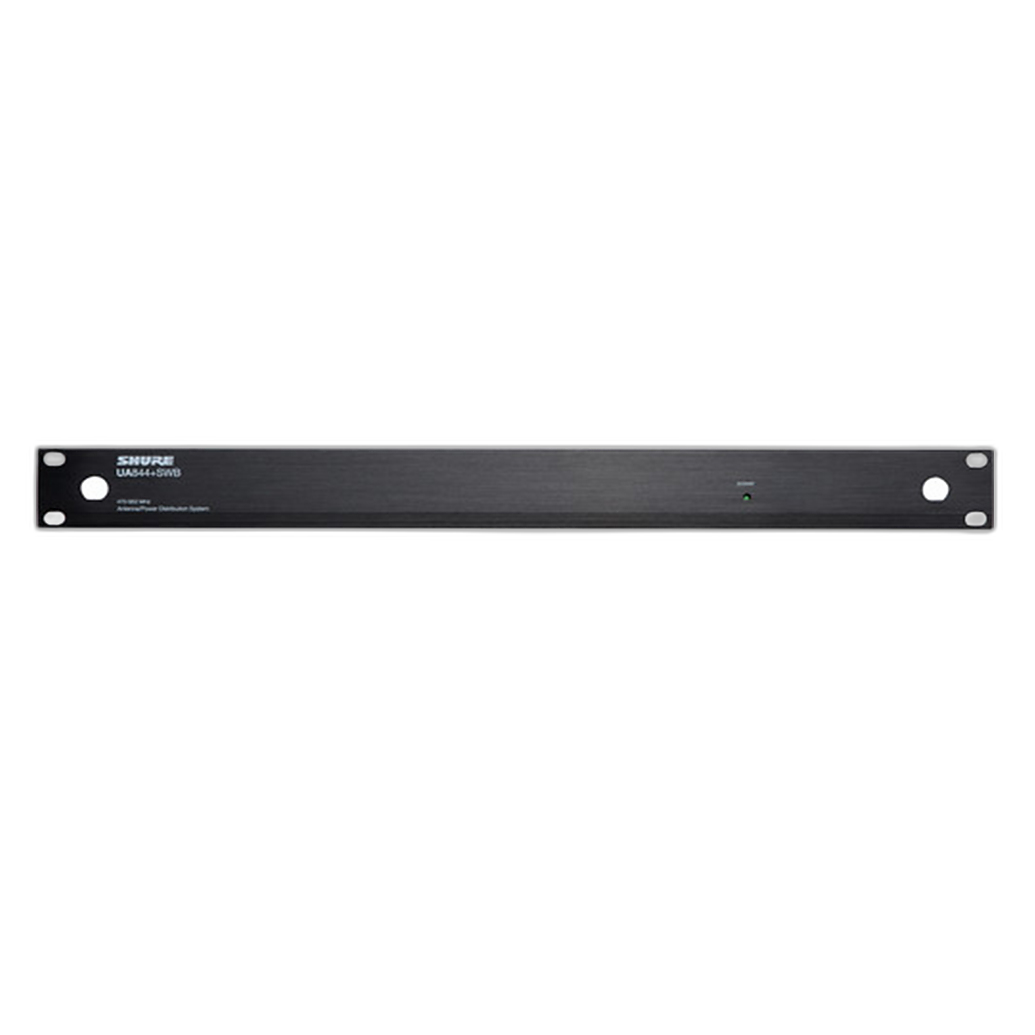

The Shure UA844+SWB/LC Wideband Antenna Distribution System (No Antenna Cables) is an expansion of Shure's wireless microphone system, & can be used to split one pair of antennas to multiple receivers, while amplifying the RF signal to compensate for the insertion loss.
A single UA844+SWB/LC option features four push-on DC cables, & no antenna cables. This is recommended to be used with the QLX-D, BLXR, & SLX wireless systems. If you want to connect the receiver antenna ports to the UA844+SWB/LC, you can use the BNC to BNC antenna cables (that are supplied with each BLXR, SLX, & QLX-D wireless system).
A single UA844+ system can support up to 5 wireless receivers, & a maximum of 5 UA844+ systems may be used in a two-tiered configuration.
In the Box
- Shure UA844 + SWB/LC Wideband Antenna Distribution System
- 5-Way RF Signal Output
- For QLX-D, BLXR, & SLX Receivers
- Front-Mounting Antenna Hardware
- 4 Power Feeds for 15 VDC Receivers
- Outputs for Antenna Bias (12 VDC, 300mA)
Brand
brand
| Brand | Shure |
detailed specifications
| Impedance | RF Input Impedance: 50 Ohms |
| Impedance | RF Input Impedance: 50 Ohms |
| Impedance | RF Output Imedance: 50 Ohms |
| Type of Outputs | DC Output: 4x 14 to 18 VDC |
| Type of Outputs | RF Output Connector Isolation: 30 dB, typical |
| Type of Outputs | Output Current: Combined Total from All DC Outputs 2.5 A, maximum |
| Type of Outputs | RF Output Intercept Point: 21 dBm, typical |
| RF Carrier Frequency Range | 470-960 MHz |
| Power Requirements | 14 to 18 VDC |
| Connectors | RF Output Connector Type: BNC |
| Connectors | RF Connector Type: BNC |
| Frequency Range | RF Output Frequency Range: 470-960 MHz |
physical specifications
| Dimensions | 1.8 x 19 x 6.8" (45 x 483 x 172 mm) |
| Weight | 3.6 lb (1.62 kg) |
