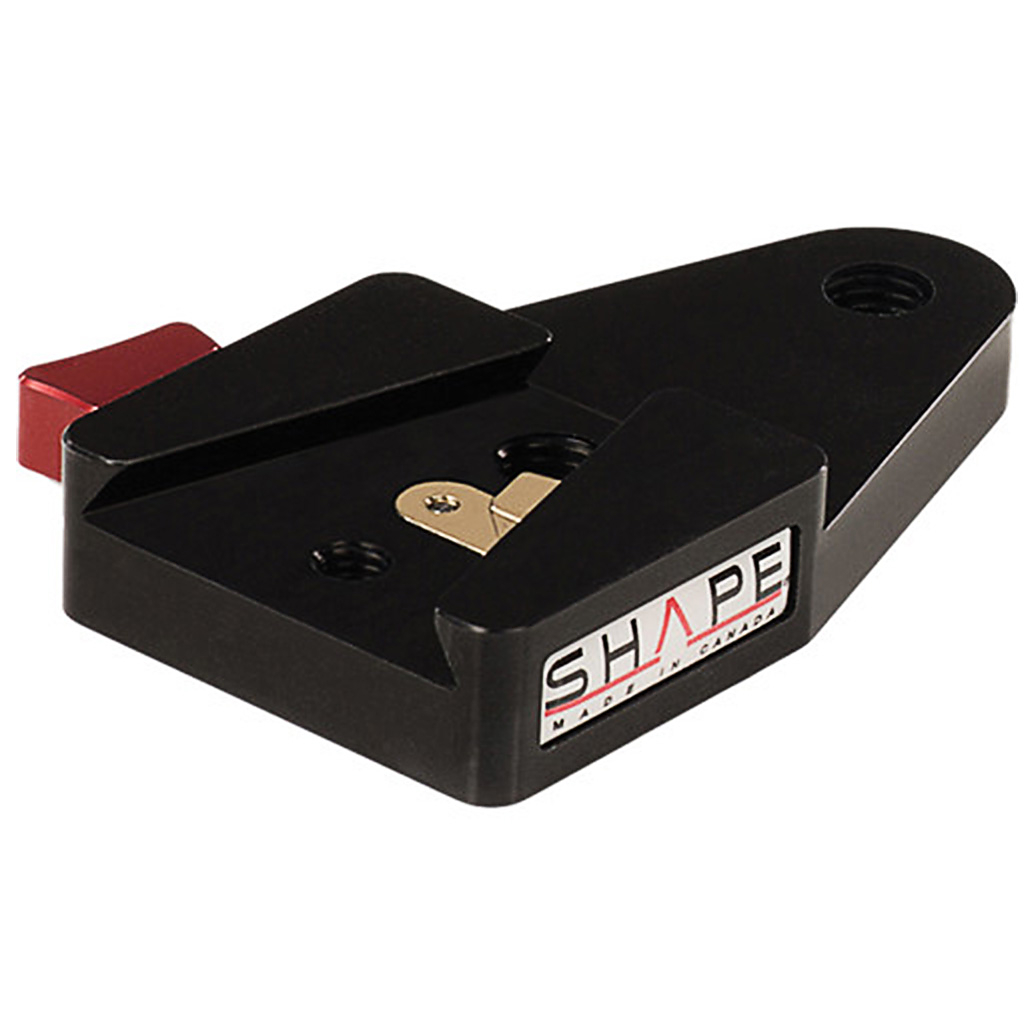

Shape Quick Release V-Lock Adapter
Shape
DISCONTINUED
This product has been discontinued and is no longer available for purchase.
Key Features
- CNC machined, solid aluminum bloc
- Stable and easy to use
- Locking system prevents from accidental and unwanted camera release.
- Can hold a camera up to 50 pounds
- 2 x 3/8” -16 and 1 x 1/4-20 threaded attachments
DISCONTINUED
This product has been discontinued and is no longer available for purchase.
overeview
The SHAPE Quick Release V-Lock Adapter attaches to the camera platform of your tripod, monopod, or support rig, providing a standard V-lock mounting interface. It is designed for use with SHAPE's optional V-lock "Delta Adapter" camera plate, but will also work with any camera plate that utilizes a V-lock mounting system.
CNC machined from a solid aluminum block, the adapter supports loads up to 50 pounds and features one 1/4"-20 and two 3/8"-16 threaded mounting holes. A locking system with a release button on the side of the plate allows for quick removal of your V-lock camera plate.
- Accepts SHAPE V-lock Delta Adapter plate
- One 1/4"-20 and two 3/8"-16 threaded mounting holes
- Locking system with side release button
- Supports up to 50 lb
Brand
Shape
detailed specifications
| Quick Release | V-lock |
| Mounting Threads | 1 x 1/4"-20 2 x 3/8"-16 |
| Weight | 0.30 lbs |
| Material | CNC machined aluminum |
| Rated Capacity | 50 lb (22.68 kg) |
physical specifications
| Dimensions | 3.50 x 2.75 x 0.75 in |
- SHAPE Quick Release V-Lock Adapter
