Shape Canon C500 Mark II Offset Rig

overview

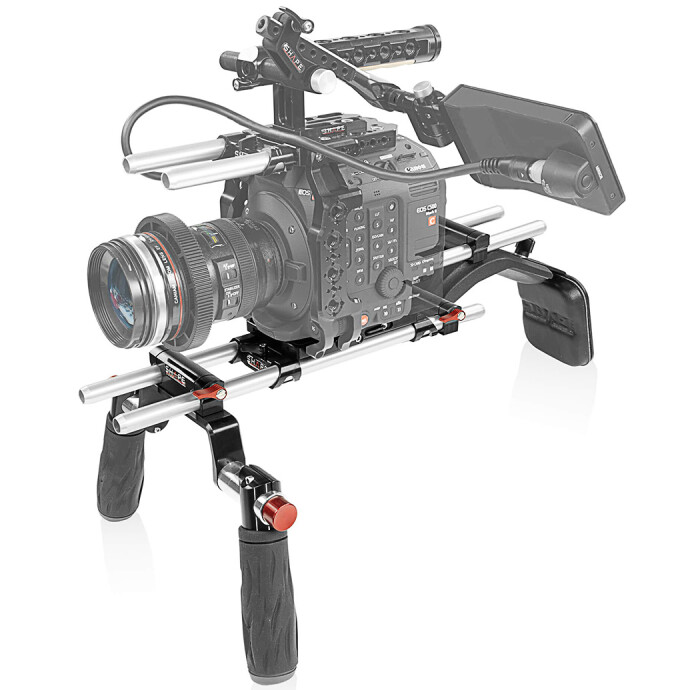

Professional video stabilization with 2 handles and an offset configuration featuring quick release handgrips with SHAPE’s patented Push-button technology.

Canon C500 Mark II, C300 Mark III 15mm lightweight baseplate

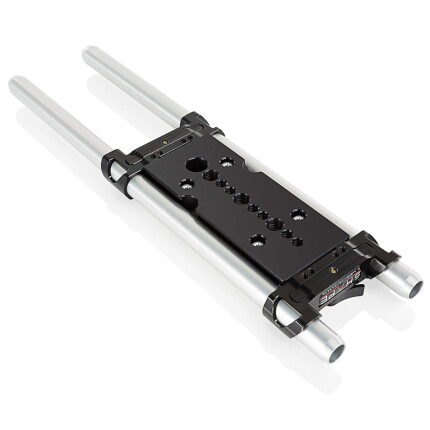

The lightweight baseplate with 15 mm rod system is designed to match the Canon EOS C500 Mark II optical center. It features two attachment points (1/4-20 and 3/8-16) for securely mounting the Canon EOS C500 Mark II body. The baseplate also comes with a pair of 15 mm rods that are 12” long through the length of the baseplate. The bottom of the plate feature several 1/4"-20 and 3/8"-16 mounting holes for mounting and balancing your camera on equipment like a tripod.

Canon C500 Mark II, C300 Mark III adapter plate

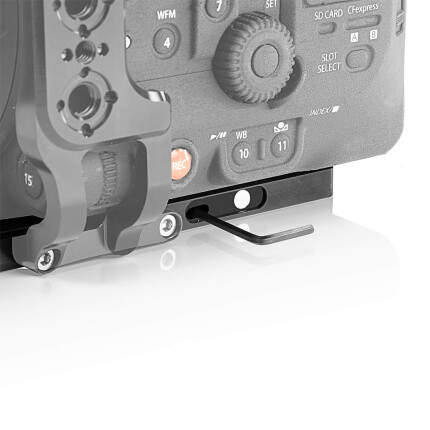

The Canon EOS C500 Mark II Adapter Plate let you quickly attach your camera to your rig. The position of the captive screws perfectly matches the threaded holes of the Canon EOS C500 Mark II camera base.

Offset rail 15 mm 2-rod bloc

The SHAPE 15 mm Off-Set Bracket is designed to fit offset configuration and let you insert 15 mm rods.

Quick handle rod bloc

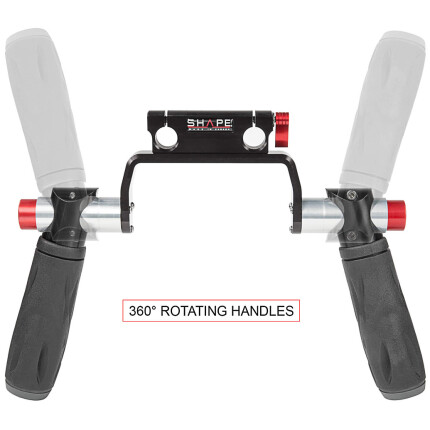

The SHAPE Quick handle rod bloc is a professional video stabilization accessory with 2 camera handle grips, each providing an individual rotation angle of 360°. You can attach the handle to the camera platform using a simple screw knob. A simple Push-Button located at the articulation allows easy attachment and removal. Combined with the anodized aluminum rod bloc, the quick handle offers composite camera support for all 15 mm rods. You can achieve precise positioning by sliding the Quick Handle along the rods and tightening the small red knob located on the Rod Bloc. The rod bloc is designed with 2 screw-threaded holes allowing the mounting of the Quick Handle. SHAPE is well known for its patented Push-button handle, now used by so many professionals in the industry. The technology was developed to give filmmakers quick and easy adjustment. By simply pressing the button, you are allowed a 360-degree rotation to place the handle in the best position for your use. Push, adjust, release, and then its lock.

Composite mini shoulder pad

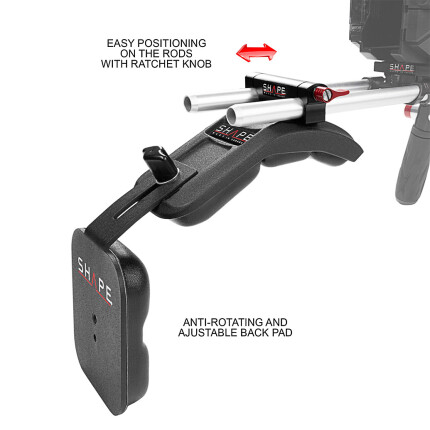

The SHAPE mini composite shoulder pad is padded for superior comfort and is made of slip-free material. It is designed with a 15 mm rod block on top allowing to hold 15 mm rods for camera and accessories to be attached. The screw knob allows to attach SHAPE counter-weight (PAD1, PADCW1). By adding extra male-female rods at the back, you can also attach a counter-weight behind the same rods. This way, your body can easily supports the weight of the camera and its accessories. The shoulder pad is also the perfect solution for switching rapidly from shoulder to tripod without having to remove the shoulder pad. It can remain on the camera rig permanently.

Back pad

The back pad (PAD1) features a powder coated anodized aluminum plate and arm which are attached to a thick padding on the side facing the user. It is compatible with the SHAPE Mini Composite Shoulder Pad (SHPAD3, SHPAD2, SHPAD1) and can be attach or remove easily from your rig via a 1/4-20 camera screw knob. Additionally, the back pad’s position can be adjusted to the user’s preference – up to 2" vertically and 360° horizontally. The bottom of the back pad is designed with (2) 1/4-20 threaded holes, allowing to attach other accessories or counterweights.

15 mm 12" rods

One pair of SHAPE 15-mm aluminum rods for your compatible camera rig. Mount any 15-mm compatible accessories and form the support structure of your rig.

• 15-mm diameter
• 12-in length
• Hollow, non-threaded
• Tapered ends for easy connection to a rod block
• Aluminum coated with a clear finish

15 mm 10" rods (15TUBE10)

One pair of SHAPE 15-mm aluminum rods for your compatible camera rig. Mount any 15-mm compatible accessories and form the support structure of your rig.

• 15-mm diameter
• 10-in length
• Hollow, non-threaded
• Tapered ends for easy connection to a rod block
• Aluminum coated with a clear finish
