Sennheiser XSW 2-ME2 UHF Lavalier Microphone Set (A: 548 to 572 MHz)
- Product #:
- SEN2042
- Manufacturer #:
- 507122
- UPC:
- 615104279377
- For Presenter and Moderator Applications
- ME 2-II Lavalier Microphone
- True Diversity Receiver
- Up to 12 Compatible Channels
OVERVIEW
Inspire your audience. High flexibility for those willing to go a step further.
The XS WIRELESS 2 grows with your demands by offering an intuitive LCD display for more manual options and 12 compatible channels in a stable UHF band, withstanding tougher live stage conditions.

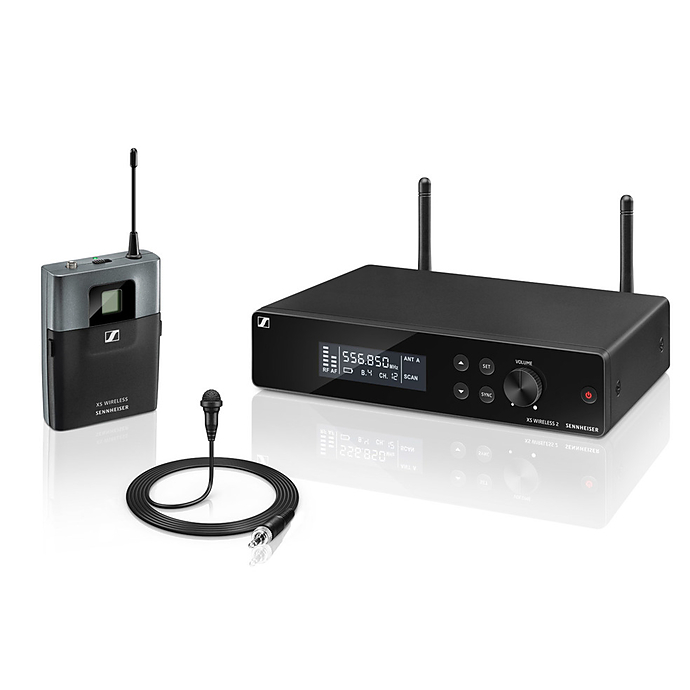

The XS WIRELESS 2 LAVALIER MIC SET is an easy to use all-in-one wireless system for presenters and moderators, excellent for a powerful and inspiring presentation. The set includes a stationary receiver for quick set-up and hassle-free handling, as well as a lightweight bodypack transmitter and an unobstrusive clip-on microphone. Metal receiver housing and rackmount kit included.
- Unobstrusive clip-on microphone for hands-free operation and compact bodypack transmitter
- True diversity receiver with metal housing
- External antennas
- Automatic frequency management and synchronization via remote channel for easy setup
- Fully tunable over a wide range of UHF frequencies
- Rackmount kit included
- Up to 12 compatible channels
Product Reviews
There are no reviews for this product.
Specifications
| Brand | |
|---|---|
| Sennheiser | |
| Microphone Specifications | |
|---|---|
| Polar Pattern: | Omnidirectional |
| Transducer Principle: | Condenser, pre-polarized |
| Sensitivity: | 20 mV/Pa |
| Maximum SPL: | 130 dB |
| Detailed Specifications | |
|---|---|
| Type of Microphone: | Lavalier Microphone |
|
|
| Total Harmonic Distortion: | = 0.9% |
| Signal-to-Noise Ratio: | = 103 dBA |
|
|
| Modulation: | Wideband FM |
| Frequency Range: | A: 548 to 572 MHz |
|
|
| Switching Bandwidth: | Up to 24 MHz |
| Frequency: | Adjustable in 25-kHz steps 8 frequency banks, each with up to 12 factory-preset channels |
|
|
| Physical Specifications | |
|---|---|
| Dimensions: | 2.8 x 3.8 x 1.1" (71 x 96 x 28 mm) approximate |
|
|
| Dimensions: | 7.9 x 1.7 x 5.0" (200 x 42 x 127 mm) |
|
|
| Wireless Transmitter Specifications | |
|---|---|
| Weight: | 3.4 oz (95 g) |
| Power Supply: | 2 x AA size batteries, 1.5 V |
| Maximum Input Voltage: | Maximum at 3% THD: Mic: Typ. 1.5 V rms Line: Typ. 2.6 V rms @ -30 dB gain |
| RF Output Power: | 10 mW |
| Frequency Response: | 50 Hz to 16 kHz (Line) 80 Hz to 16 kHz (Mic) |
| Brand | |
|---|---|
| Brand: | Sennheiser |
| Wireless Receiver Specifications | |
|---|---|
| Power Supply: | Nominal Input: 100 to 240 VAC 50/60 Hz Input Current: 200 mA (Max.) Nominal Output: 12 V DC 300 mA |
| Squelch: | Adjustable from 3 dBµ V to 28 dBµ V (combined with pilot tone) |
| Receiver Principle: | Double superheterodyne |
| Frequency Response: | 50 Hz to 16 kHz (-3 dB) |
| Weight: | 24 oz (680 g) |
| RF Sensitivity: | < 3 µV at 52 dBA rms S/N at (peak deviation) |
In The Box
- XSW 2-ME2 Wireless Lavalier Microphone System (A:548 to 572 Mhz)

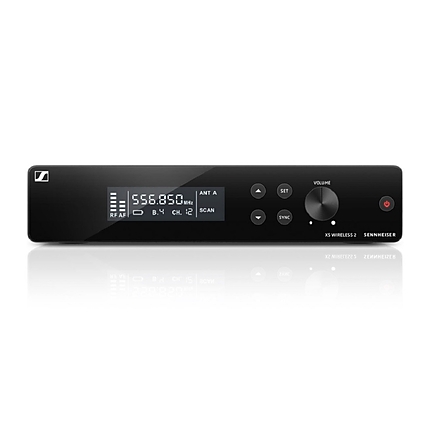

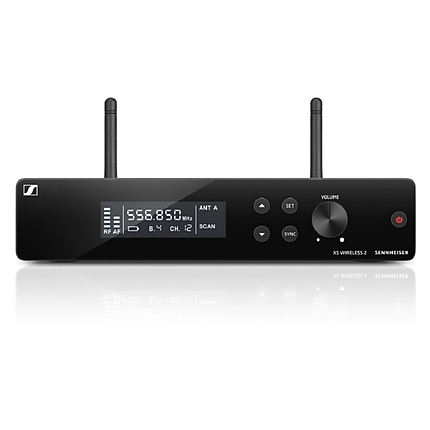

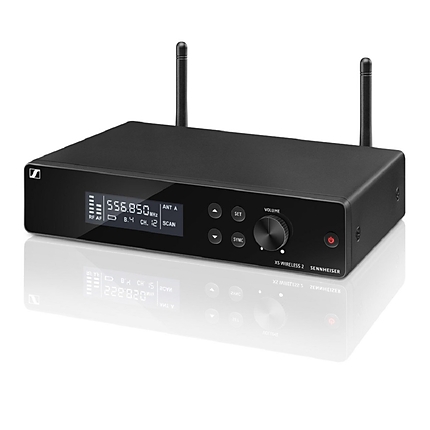

- EM-XSW 2 Receiver

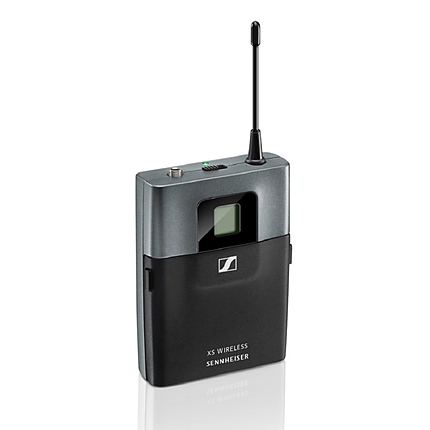

- SK-XSW Bodypack Transmitter

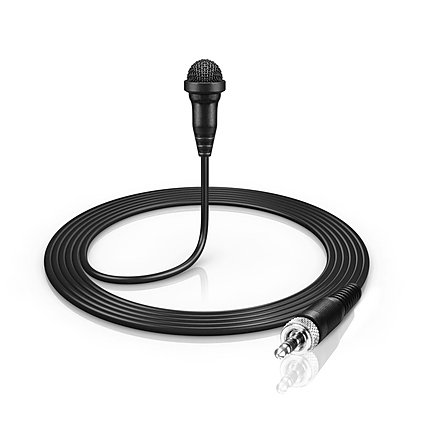

- ME 2-II Omni directional Lavalier Microphone
- Rackmount Kit
- Protective Pouch
- NT 12-5 CW power supply
- 2 x AA Batteries
