Sennheiser EW 100 G4-ME2 Wireless Omni Lav Mic. System (A: 516 to 558 MHz)
Key Features
- For Presenters and Performers
- ME 2-II Omnidirectional Lav Mic
- Lightweight Bodypack Transmitter
- True-Diversity Rackmount Receiver
- Up to 20 compatible channels
- Transmission Range: up to 100 meters / 300 feet
- High RF output power (up to 30 mW) depending on country regulations
Overview

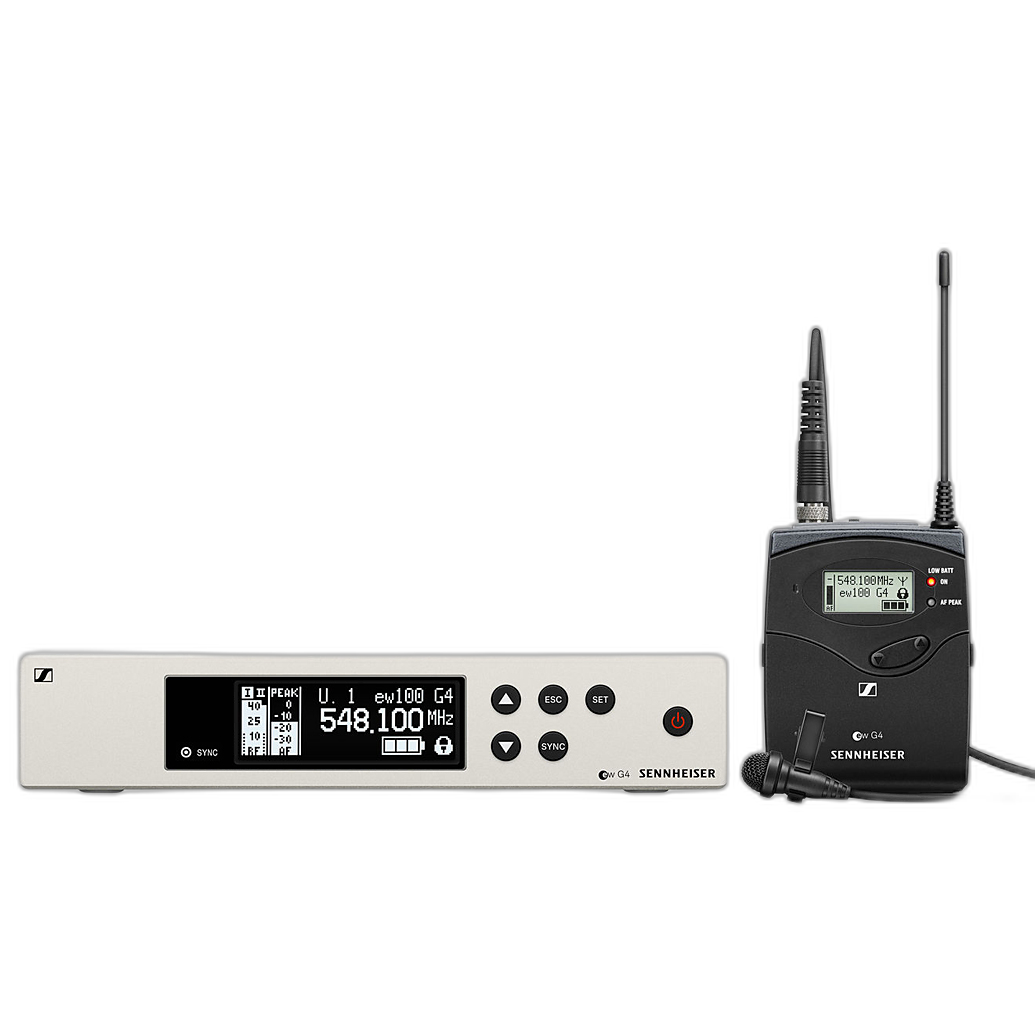

Rugged all-in-one wireless system for presenters and moderators. Set consists of 1 SK 100 G4 wireless bodypack, 1 ME-II Lavalier, 1 EM 100 G4 rackmount receiver, 1 rack kit and 1 RJ10 linking cable.
This system's lavalier microphone is optimized for speech intelligibility. The bodypack transmitter provides up to 8 hours of operation (two AA batteries) and a transmission range up to 330'. Up to 12 wireless mics can operate simultaneously in the same space, with the receivers linked together for fast, multi-channel frequency setup.
The perfect choice for moderators and presenters: Robust bodypack transmitter and unobtrousive clip-on microphone ME 2-II (omni-directional) or ME 4 (cardioid) with high speech intelligibility for easy hands-free operation on any stage.
- Engineered for professional live sound: Rugged all-in-one wireless system for presenters and moderators.
- Robust bodypack transmitter and unobstrusive clip-on microphone ME 2-II (omni-directional) or ME 4 (cardioid) with high speech intelligibility for daily use on stage
- True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control
- Easy and flexible wireless synchronization between transmitter and receiver via infrared
- Fast frequency allocation for up to 12 receivers via new linking functionality
- Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
Brand
wireless receiver specifications
| Power Supply | AC/DC Power Adapter, 12 VDC at 300 mA (Included) |
| Squelch | Adjustable, 5 to 25 dBµV |
| Audio Output | 1 x XLR 3-Pin Male Balanced Output 1 x 1/4" TRS Female Unbalanced Output |
| Operating Temperature Range | 14 to 131°F / -10 to 55°C |
| Weight | 2.2 lb / 980 g |
| RF Sensitivity | 2.5 µV |
detailed specifications
| Type of Microphone | Lavalier Microphone |
| Cable Length | 5.25' / 1.6 m |
microphone specifications
| Form Factor | Lavalier |
| Polar Pattern | Omnidirectional |
| Diameter | 0.41" / 10.5 mm |
| Operating Voltage | 7.5 V |
| Output Connectors | 1 x 1/8" / 3.5 mm TRS Male Unbalanced (Lockable) |
| Capsule | Electret Condenser |
| Sound Field | Mono |
| Equivalent Noise Level | 36 dB |
| Sensitivity | 20 mV/Pa |
| Maximum SPL | 130 dB SPL Peak |
| Frequency Range | 50 Hz to 18 kHz |
wireless transmitter specifications
| AF Frequency Response | 80 Hz to 18 kHz (Mic) 25 Hz to 18 kHz (Line) |
| Weight | 5.6 oz / 160 g (with Batteries) |
| Power Supply | 2 x AA (Included) 1 x Sennheiser Accupack (Not Included, Replaceable) |
| RF Output Power | 30 mW |
| Operating Temperature | 14 to 131°F / -10 to 55°C |
| Material | Metal |
| Operating Time | 8 hours (Alkaline) |
physical specifications
| Dimensions | 2.5 x 3.2 x 0.9" / 64 x 82 x 24 mm |
| Dimensions | 8.3 x 1.7 x 7.5" / 212 x 43 x 190 mm |
| Color | Black |
- EM 100 G4 true diversity receiver
- SK 100 G4 bodypack transmitter
- ME 2 clip-on microphone (ew 100 G4-ME2 set only)
- ME 4 clip-on microphone (ew 100 G4-ME4 set only)
- rackmount set
- power supply
- 2 AA batteries
- 2 rod antennas
- RJ 10 cable
- quick guide
- safety guide
- manufacturer declaration sheet
- frequency supplement sheet
