Sennheiser EW-DP ENG Wireless Lav/Plug-On Set - R1-6 (520 - 576 MHz)

Key Features
- Fully Digital UHF Wireless Microphone System
- 134 dB Dynamic Range
- Up to 56MHz bandwidth
- 1.9ms Low Latency
- Integrated Bluetooth for Synchronization and Control
- Smart Assist App for Monitoring and Control
- Smart Notifications for Troubleshooting and System Guidance
- Extended Battery Life: Up to 12 hours on Trasmitter or 7 hours on Receiver
- Magnetically Stackable Components
- External Charging and Powering via USB Type-C (Receiver Only)
- Additional Plug-on Transmitter featuring an XLR & 3.5mm Input
OVERVIEW
Building on Sennheiser's extensive knowledge amassed from decades of wireless excellence, EW-DP delivers an industry leading audio workflow that only advanced digital technology and UHF transmission can offer. Rounding out the award-winning Evolution Wireless Digital Series, this fully digital UHF wireless microphone system features an all-new portable design and unmatched audio quality, purpose-built for filmmakers, content creators, and broadcasters.
At the heart of EW-DP is a compact digital receiver that provides an intuitive user experience for those new to wireless and seasoned professionals alike. Convenient features like remote Bluetooth synchronization and system control via our Smart Assist App helps you save time and energy on set. A front facing OLED display allows for easy menu navigation and at-a-glance system status at any angle in light. Smart Notifications help to troubleshoot your system and suggest solutions for various challenges you may encounter. Versatile, magnetically stackable mounting configurations seamlessly integrate the receiver into your camera build while multiple powering options are ready to tackle long days on location.
The EW-DP ENG Set includes both the SK bodypack transmitter with an ME 2 omnidirectional lavalier as well as the SKP plug-on transmitter for the most flexibility of any EW-DP system. The SKP transmitter turns any wired microphone into a wireless option. Features include an XLR input with +48V phantom power, a 3.5mm locking input, and a micro-SD card slot for 24-bit, 48kHz on-board recording. From boom mics to handhelds and even lavaliers, this versatile tool acts as a problem solver when you need it most.
Capture your full creative vision with EW-DP. Setup simplicity and digital clarity put time on your side so you can focus on what matters most. After all, production has enough challenges - sound doesn't need to be one of them.
Brand
detailed specifications
| Type of Microphone | Handheld Microphone |
| USB Port | USB Type-C |
| Power Requirements | 2x AA Batteries or USB-C PD Power Supply |
physical specifications
| Weight | Without Antennas or Power Supply: Approx. 140g |
| Dimensions | 3.39" x 2.64" x 1.1" |
| Color | Black |
microphone specifications
| Polar Pattern | Cardioid |
| Frequency Range | 520-576MHz |
| Maximum SPL | 154 dB |
| Sensitivity | 2.1 mV/Pa |
| Dynamic Range | 134 dB |
wireless transmitter specifications
| Frequency Response | 20Hz-20kHz |

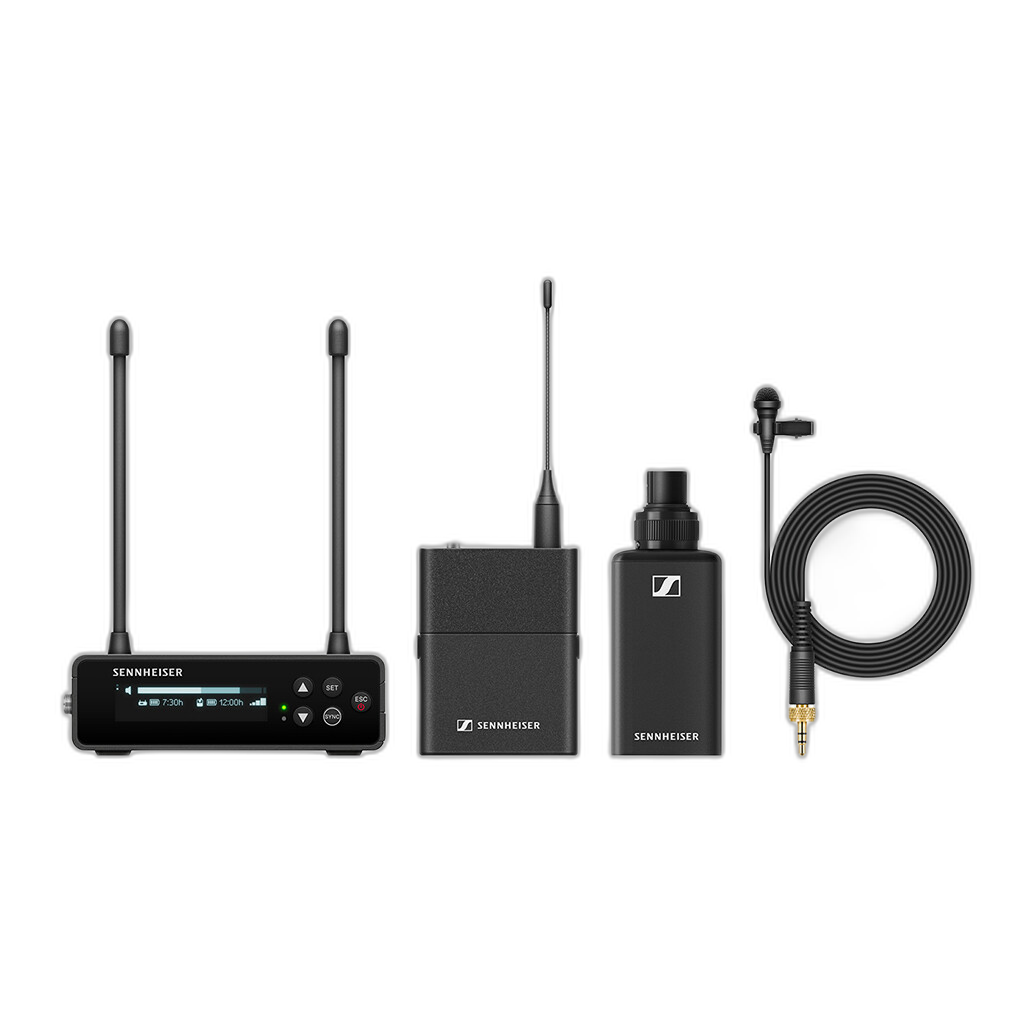

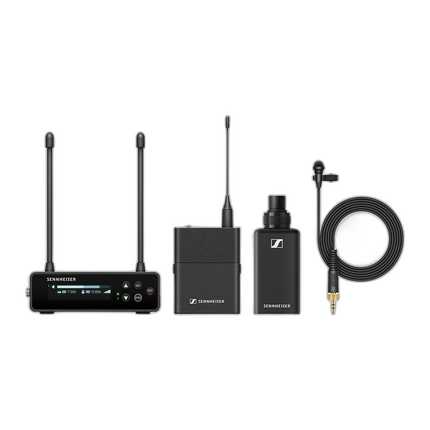

- EW-DP EK Digital portable single channel receiver
- EW-D SK digital bodypack transmitter
- ME 2 omnidirectional lavalier microphone
- EW-DP SKP digital plug-on transmitter
- BA 70 lithium-ion battery
- 2x AA Batteries
- Locking 3.5mm TRS plug to 3.5mm TRS plug cable
- Locking 3.5mm TRS plug to XLR plug cable
- USB-C charging cable
Mounting Kit
- Cheese plate
- Cold Shoe
- Belt Clip
- Screws
