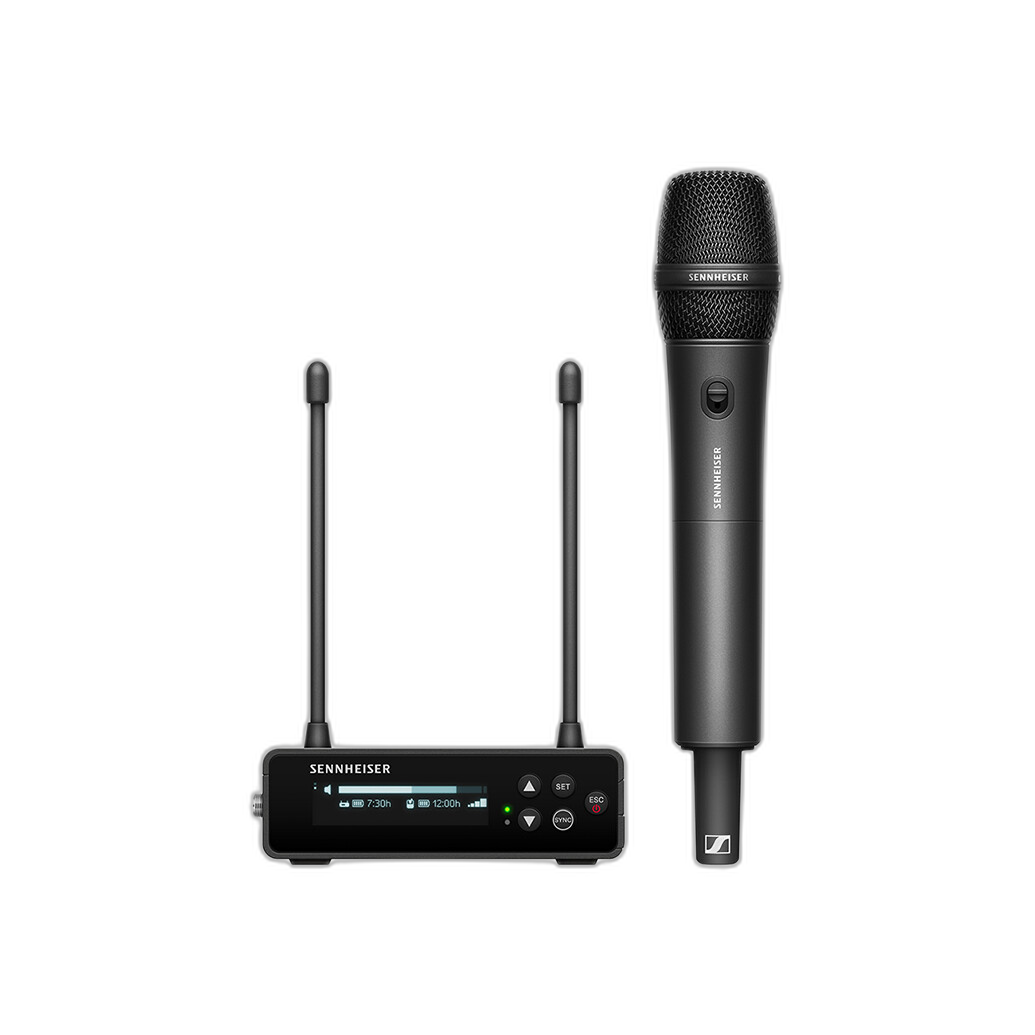

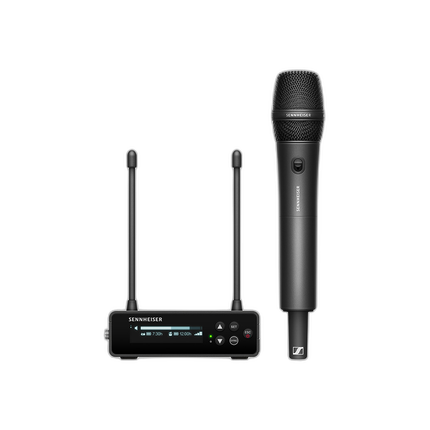

Sennheiser EW-DP 835 Wireless Handheld Set - R1-6 (520 - 576 MHz)

Key Features
- Fully Digital UHF Wireless Microphone System
- 134 dB Dynamic Range
- Up to 56MHz bandwidth
- 1.9ms Low Latency
- Integrated Bluetooth for Synchronization and Control
- Smart Assist App for Monitoring and Control
- Smart Notifications for Troubleshooting and System Guidance
- Extended Battery Life: Up to 12 hours on Trasmitter or 7 hours on Receiver
- Magnetically Stackable Components
- External Charging and Powering via USB Type-C (Receiver Only)
OVERVIEW
Building on Sennheiser's extensive knowledge amassed from decades of wireless excellence, EW-DP delivers an industry leading audio workflow that only advanced digital technology and UHF transmission can offer. Rounding out the award-winning Evolution Wireless Digital Series, this fully digital UHF wireless microphone system features an all-new portable design and unmatched audio quality, purpose-built for filmmakers, content creators, and broadcasters
At the heart of EW-DP is a compact digital receiver that provides an intuitive user experience for those new to wireless and seasoned professionals alike. Convenient features like remote Bluetooth synchronization and system control via the Smart Assist App helps you save time and energy on set. A front facing OLED display allows for easy menu navigation and at-a-glance system status at any angle in any light. Smart notifications help to troubleshoot your system and suggest solutions for various challenges you may encounter. Versatile, magnetically stackable mounting configurations seamlessly integrate the receiver into your camera build while multiple powering options are ready to tackle long days on location.
The EW-DP 835 set includes the SKM-S handheld transmitter with the MMD 835 cardioid dynamic microphone module, ideal for on-camera interviews and capturing isolated dialogs in noisy environments. An integrated mute switch gives the talent the control, but can also be overridden via the receiver or Smart Assist App. The SKM-S handheld transmitter is compatible with all Sennheiser microphone modules, enabling you the flexibility to change pick-up patterns based on your application.
Brand
detailed specifications
| Type of Microphone | Handheld Microphone |
| USB Port | USB Type-C |
| Power Requirements | 2x AA Batteries or USB-C PD Power Supply |
physical specifications
| Weight | Without Antennas or Power Supply: Approx. 140g |
| Dimensions | 3.39" x 2.64" x 1.1" |
| Color | Black |
microphone specifications
| Polar Pattern | Cardioid |
| Frequency Range | 520-576MHz |
| Maximum SPL | 154 dB |
| Sensitivity | 2.1 mV/Pa |
| Dynamic Range | 134 dB |
wireless transmitter specifications
| Frequency Response | 20Hz-20kHz |
- EW-DP EK digital portable single channel receiver
- EW-D SKM-S digital handheld transmitter
- MMD 835 dynamic cardioid microphone module
- BA 70 lithium-ion battery
- 2x AA Batteries
- USB-C charging cable
- Locking 3.5 mm TRS plug to 3.5 mm TRS plug cable
- Locking 3.5 mm TRS plug to XLR plug cable
Mounting Kit
- Mounting Plate
- Cold Shoe
- Belt Clip
- Screws
