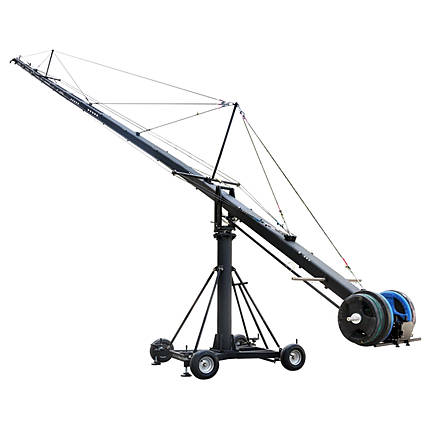

Proaim 40ft Fraser Crane Noble Package with Head

Key Features
- Proaim 40ft Fraser Crane Noble Package
- With 3-axis pan-tilt head
- Payload capacity of 1000 Kg
- Adjustable length up to 40 feet
- 6-inch triangular jib construction
- Pan-tilt side mouting
- Independed pan and tilt locks
- Rear control system
- LCD mounting arm
- Bubble level
- Pneumatic tyres
- Aluminum construction
Available for Rent
Overview
The Proaim 40ft Fraser Crane Noble Package it is an ideal tool for every professional filmmaker. Its 3-axis pan-tilt head supports cameras up to 15kg. The head also has Swiss-made motors along with a drive system that guarantees accurate and smooth movements. You can use heavy rigs with the mega dolly having a payload capacity of 1000 Kg. The adjustable length up to 40 feet let you move the camera with ease whether shooting in-studio or outdoor. With the 6-inch triangular jib construction, the Fraser Crane ensures rigidity and improved handling. Also, there are holes on the jib to reduce wind pressure and maintain the overall lightweight design. The head offers micro adjustment to provide accuracy. With the pan tilt side mounting, you can quickly mount or dismount the camera rig. You can lock the pan and tilt with the independent locks. Refer the bubble level to balance the rig on an uneven surface. Control the Fraser Crane with the rear control system. Monitor the scene composition by attaching an LCD screen to the mounting arm. The wide dolly base with a center column has four Pneumatic tires to offer convenient positioning. Thanks to the heavy-duty aluminum construction, the Fraser Crane can withstand the rigors of a professional studio environment.
Brand
physical specifications
| Color | Black |
| Length | Crane Length: 40ft; Hub Length: 1ft (8in); Column Length: 3ft (10in); Column with Dolly Length: 4ft (5in); Hub to Dolly Length: 6ft (1in); Tyre to Tyre Length: 3ft (10in) |
| Dimensions | Jib Sections Packing- 4 Flight Case: 55x117x40cm; Dolly Packing- 1 Wooden Case: 122x102x20cm; Column Packing- 1 Flight Case: 55x132x40cm |
| Weight | Jib Sections Packing- 4 Flight Case: 51.4kg; Dolly Packing- 1 Wooden Case: 50kg; Column Packing- 1 Flight Case: 58kg; Pan Tilt Head: 10kg (22lb) |
detailed specifications
| Material | FRASER JIB: High Grade Aluminum HE30; PAN TILT HEAD (PT-1100): High-grade Aluminum 6063-T6 |
support specifications
| Load Capacity | 35kg (77lb) |
power system
| Power Input | AC 198V-264V (AC 100V~264V as option), 50-60HZ |
detailed specs
| Power Supply | Supports two outputs DC12V for ENG camera, DC7.8V for DV camera |
- Proaim 40ft Fraser Crane Noble Package with Head JB-FR6T-NOBLE
- 40ft Jib (PF-6TR)
- Mega Dolly with Column (DL-MEGA-00)
- Pan Tilt Head (PT-1100)
- Flight Transport Case
