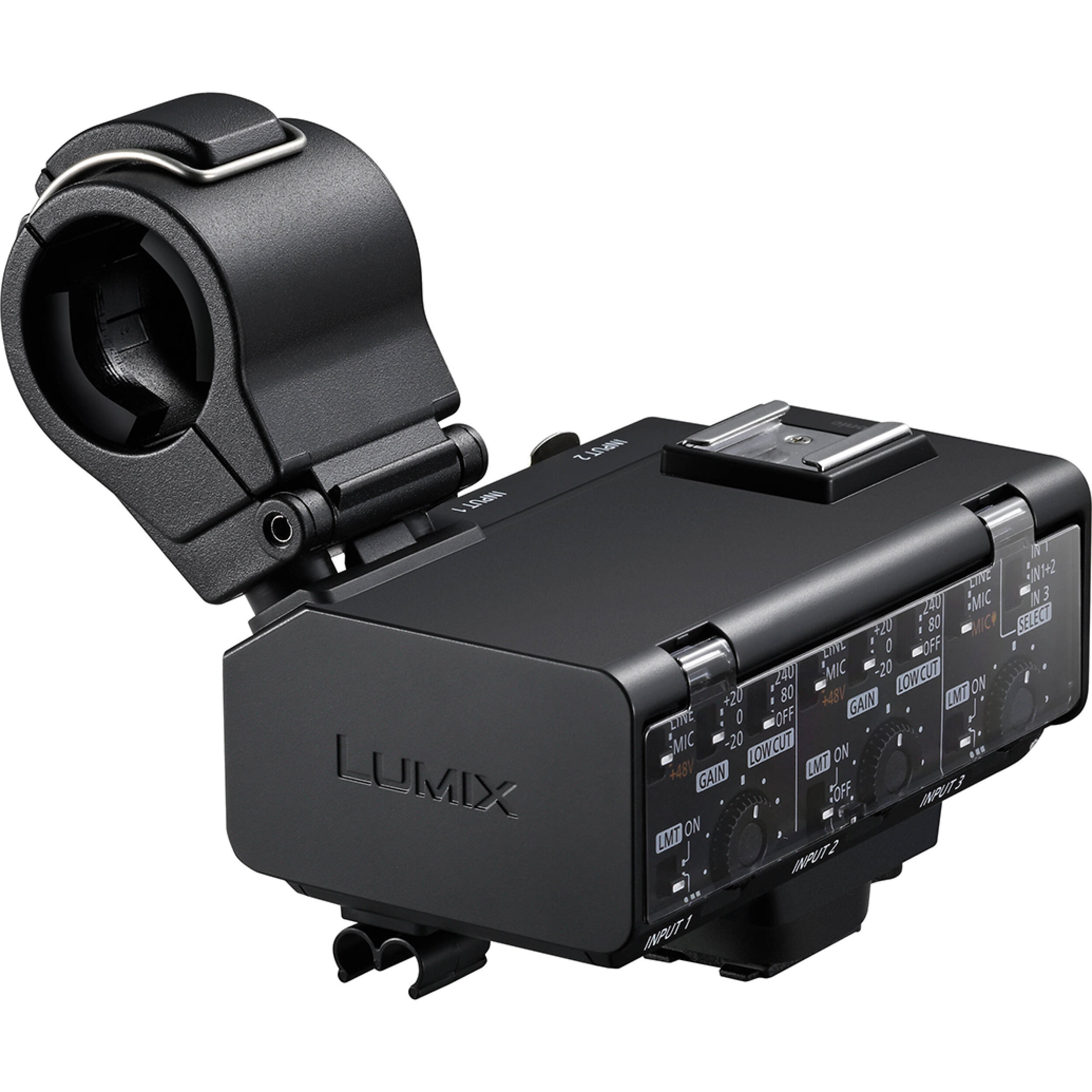

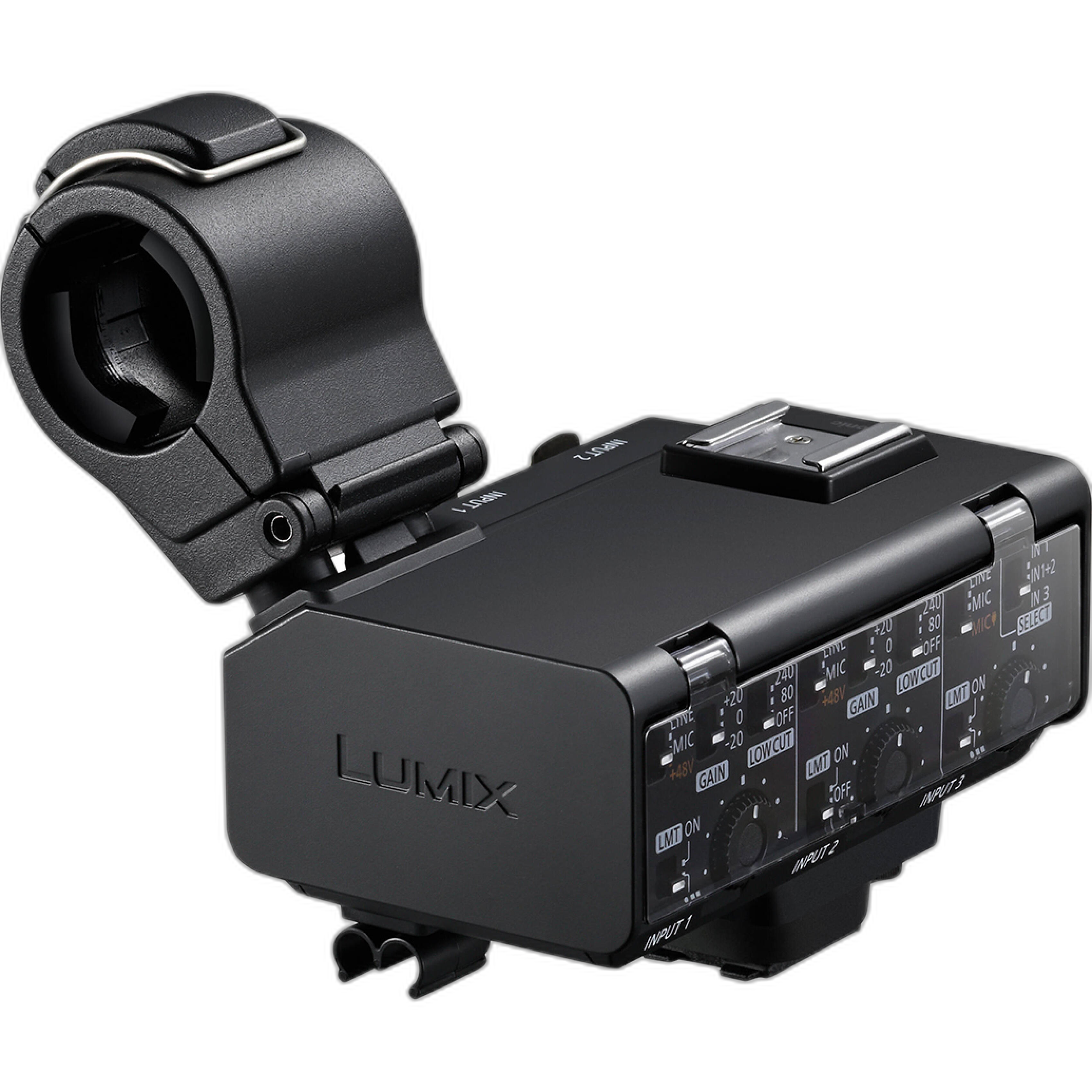

LUMIX XLR microphone adaptor allows the camera* to deliver 32-bit float recording, improving the quality and efficiency of the entire workflow. With its wide dynamic range, the 32-bit float format records more information, from quiet to loud sounds. As a result, there is no need for tedious sound level adjustments during audio recording. Video and music can be managed in a single file, making post-production much more efficient.
*Compatible model as of June 2024: LUMIX GH7 (DC-GH7)

| Weight | 5.6 oz / 158 g (Without Microphone Holder) 6.8 oz / 192 g (With Microphone Holder) |
| Dimensions | 3.6 x 2.4 x 2.4" / 92 x 61.2 x 60.9 mm (Without Microphone Holder) , 4.2 x 3.7 x 3.6" / 106.2 x 94.6 x 92 mm (With Microphone Holder) |
| Color | Black |
| Brand | Panasonic |
| Frequency Range | 20 Hz to 40 kHz, +1/-1 dB (During Fs=96 kHz, During LINE) |
| Mounting | Bottom: 1x Hot Shoe Top: 1x Cold Shoe |
| Audio I/O | 2x XLR 3-Pin Input 1x 1/8" / 3.5 mm Mic Input (Stereo) |
| Mic Maximum Input Level | XLR: LINE: 0 dBu MIC, +48V: -40 dBu (0 dBu=0.775 Vrms) 3.5 mm , Jack: LINE: -10 dBV MIC, MIC (plug-in power): -40 dBV (0 dBV=1 Vrms) |
