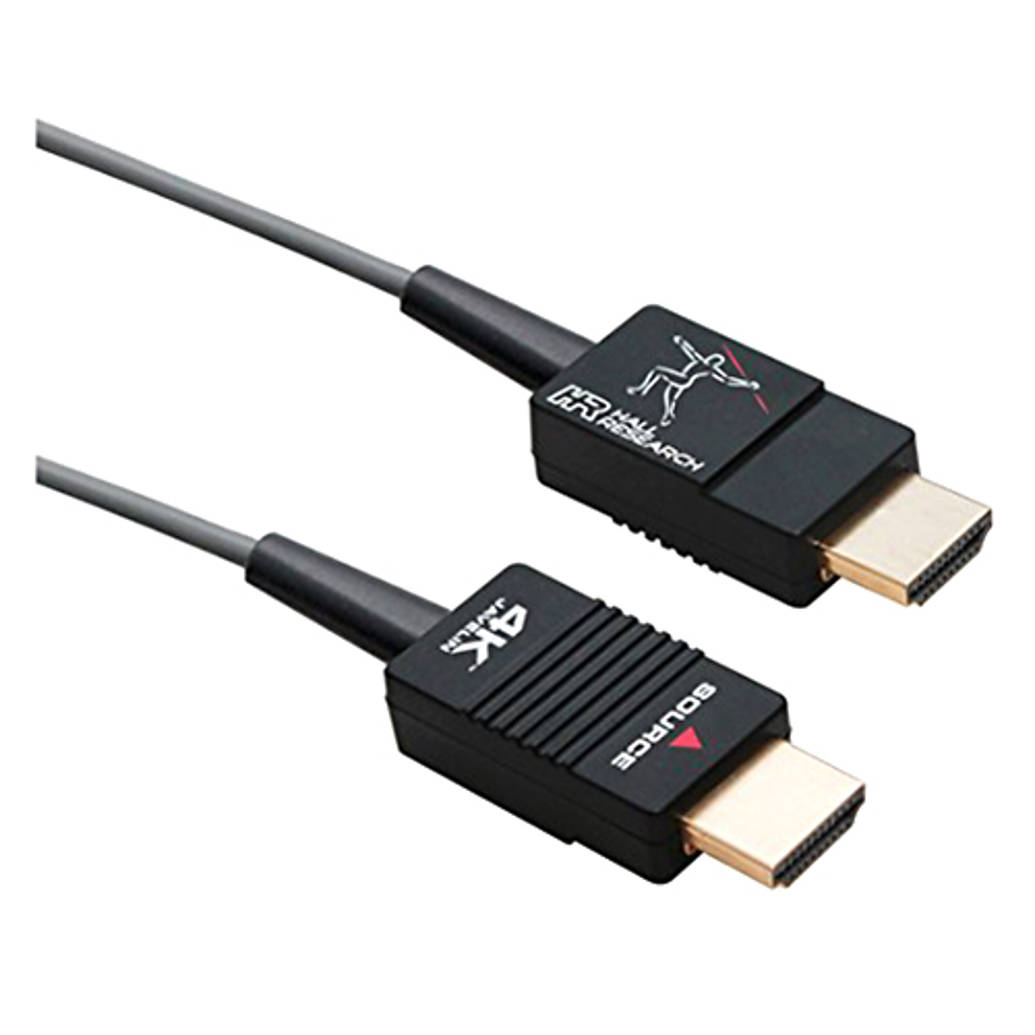

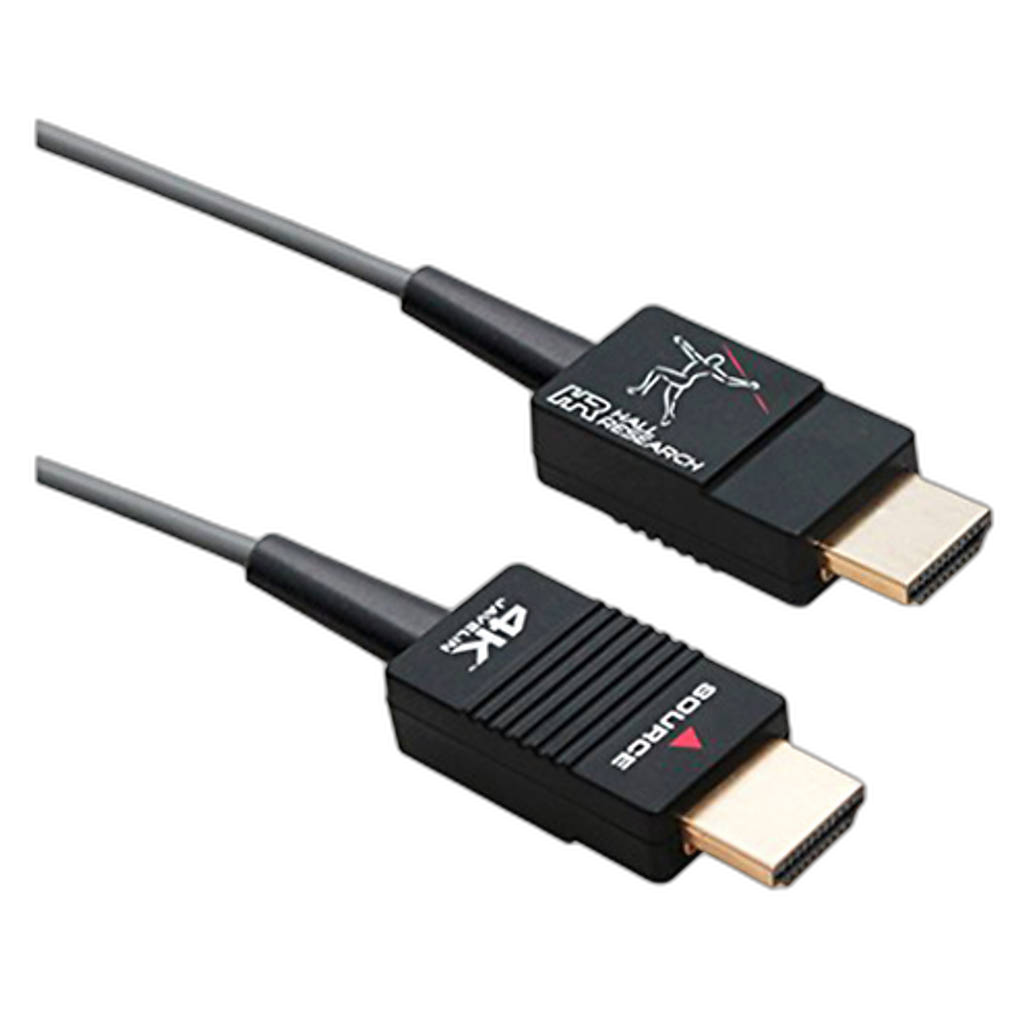

Hall Research CHD-AP15 4K Javelin Plenum Fiber Optical HDMI Cable 15 Meter

Key Features
- Hall Research CHD-AP15 4K Javelin Plenum Fiber Optical HDMI Cable
- For consumer TV and PC
- Opto-electronics inside connectors
- Fiber-optic noise immunity
- HDCP-compliant
- Zero compression
- Plenum-rated
- Color: Black
Available for Rent
overview
The Hall Research CHD-AP15 4K Javelin Plenum Fiber Optical HDMI Cable is based on the optoelectronic technology for transmitting high-quality UHD 4K signals at distances more than copper cables. Its hybrid construction includes both fiber optic and copper that offer a transmission range of more than 330 feet with no loss in quality. Along with UHD 4K support, the cable can also transmit all PC and HDTV resolutions. The cable is HDCP-compliant and supports DDC protocol and CEC function of HDMI devices. With the proprietary circuitry, the video signals are converted into light pulses at the source end and re-converted to video signals at the destination. It offers immunity from EMI or RFI interference. The cable ensures zero compression to maintain video resolution and reduces the possibilities of video dropouts caused by environmental electromagnetic noise. The cable is Plenum-rated to allow installation in any structure.
Brand
physical specifications
| Length | 15m (49.21') |
| Dimensions | 36.83 x 12.26 x 8.03mm (1.45 x 0.48 x 0.32"); Total length including HDMI plug and Strain relief: 2.77" (70.36mm) |
| Weight | 12 oz (340.19g) |
| Color | Black |
detailed specifications
| Type of Outputs | Micro HDMI connector(Proprietary pinout, do not plug to micro HDMI device) |
| Volts | Powered from Source HDMI or DVI 5V pin; Nominal: 5V (operating range: 4.8V to 5.3V); Damage will occur if 5V input is greater than 6V |
| Max. Power Consumption | Nominal: 0.23W (range: 0.2W to 0.25W) |
| Type of Input Connector | Micro HDMI connector (Proprietary pinout, do not plug to micro HDMI device) |
- Hall Research CHD-AP15 4K Javelin Plenum Fiber Optical HDMI Cable 15 Meter HRT-CHD-AP15
