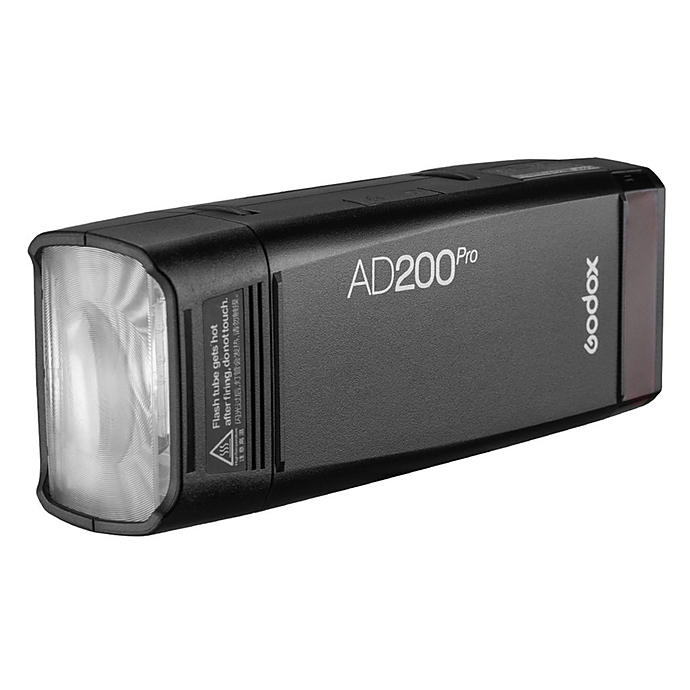

Godox AD200Pro TTL Pocket Flash

Be the first to write a review

Godox AD200 Pro TTL Pocket Flash
Provides Strong Power
Features Lightweight Portable Design
Interchangeable Flash Head for Various Effects
Built-In 2.4G Wireless X System
Wireless Remote Control/Triggering
Fully Support TTL Function
Easy to Achieve Proper Flash Exposure
Works In Complex Light-Changing Environments
Stable Color Temperature Mode

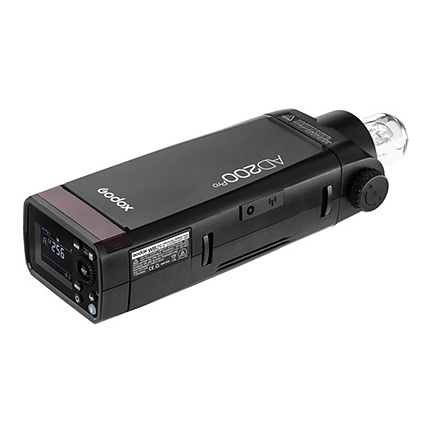

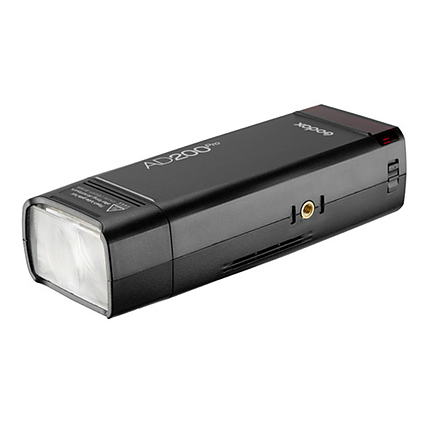

Fresnel Head H200, Bare Bulb H200J (Included)
Battery Type: Rechargeable 14.4V/2900mAh Lithium-Ion (Included)
Battery Life: Long-Life, with 1.8 Second Recycling/500 Full Power Flashes

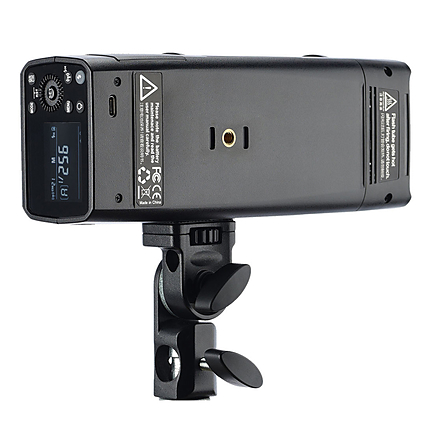

Metal Flash Holder Included
VA Display Screen for Function/Operation
Features Multiple Functions
Compatible Accessory Options (See Overview)

Compatible Cameras:: Under Radio Transmission As Slave Unit: Canon EOS Cameras (X1T-C As Master Unit)

Compatible Cameras:: This is the compatibility of a camera with a certain device or software.

View All Attribute Definitions

Compatible Cameras:: Under Radio Transmission As Slave Unit: Fujifilm Fuji Cameras (X1T-F As Master Unit)

Compatible Cameras:: This is the compatibility of a camera with a certain device or software.

View All Attribute Definitions

Compatible Cameras:: Under Radio Transmission As Slave Unit: Nikon Cameras (X1T-N As Master Unit)

Compatible Cameras:: This is the compatibility of a camera with a certain device or software.

View All Attribute Definitions

Compatible Cameras:: Under Radio Transmission As Slave Unit: Olympus Cameras (X1T-O As Master Slave)

Compatible Cameras:: This is the compatibility of a camera with a certain device or software.

View All Attribute Definitions

Compatible Cameras:: Under Radio Transmission As Slave Unit: Sony Cameras (X1T-S As Master Unit)

Compatible Cameras:: This is the compatibility of a camera with a certain device or software.

View All Attribute Definitions

Power Distribution:: Power Output: 9-Steps: 1/256~1/1, In 1/10th Stop Increments

Godox

OVERVIEW

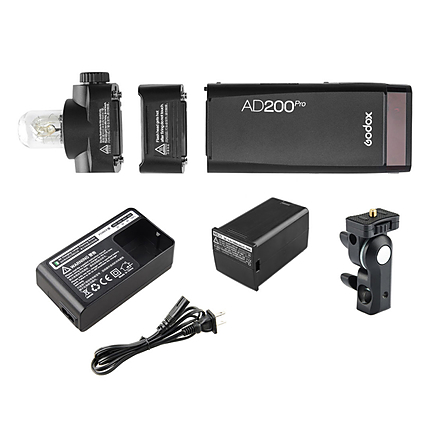

The Godox AD200 Pro TTL Pocket Flash Kit features a standard speedlight head, as well as a bare bulb head to give you options of two very different qualities of light. The kit also features a lithium battery, charger, and carrying case. The speedlight head features a physical design that has the look of an on-camera flash, which can be modified with a softbox, beauty dish, or umbrella. Its bare bulb head features a removable flash tube, while producing 360 degrees of bright, soft, and nearly shadowless light. The head uses reflectors (optional) to focus your beam angle to provide you with directional control. The AD200 Pro also features 200Ws of power that is adjustable in 9 steps, from 1/256 to 1/1, and provides flash durations as short as 1/15,380 seconds. With a recycling time of 0.01 to 2.1 seconds, the AD200 Pro runs on a rechargeable lithium battery, that will provide up to 500 full power flashes (or thousands of lower power flashes).

The AD200 Pro has three flash modes: TTL, Manual, & Multi (Stroboscopic). TTL mode is designed to take advantage of the flash head's built-in receiver (X1). Optional X1 TTL transmitters can be purchased separately for Canon, Nikon, Sony, Olympus, and FUJFILM cameras (sold separately), and are able to detect a separately purchased LED flash head. Manual mode outputs your choice of power, modeling light, first/second curtain sync, etc. Multi mode controls the stroboscopic rate up to 90 times (90Hz).Manual outputs the user's choice of power, modeling light, first or second curtain sync, high-speed sync up to 1/8000 second, modeling lamp, power level, and ready beeper at distances up to 328 ft. Firmware updates are available on the Godox website.

Product Reviews

There are no reviews for this product.

Write a review

Specifications

Brand
Godox

Power Requirements & Consumption
Stand-by Consumption:	Power Standby: Automatically After Approx. 30 Minutes of Idle Operation
Stand-by Consumption: This the power consumption a device uses while in stand-by mode. View All Attribute Definitions

Detailed Specifications
Sync Speed:	Front-Curtain Sync
Sync Speed: Sync speed is the fastest shutter speed for which the shutter curtains are completely open at the time of exposure (or when the flash fires). View All Attribute Definitions
Sync Speed:	High-Speed Sync (Up to 1/8000 Seconds)
Sync Speed: Sync speed is the fastest shutter speed for which the shutter curtains are completely open at the time of exposure (or when the flash fires). View All Attribute Definitions
Sync Speed:	Rear-Curtain Sync
Sync Speed: Sync speed is the fastest shutter speed for which the shutter curtains are completely open at the time of exposure (or when the flash fires). View All Attribute Definitions
Transmission System:	Wireless Slave Unit Mode: Radio Transmission Mode
Transmission System: This is the type of wireless transmission system for a remotely triggered device, such as a pocketwizard. View All Attribute Definitions
Transmission Range:	Transmission Range: Approx. 100m
Transmission Range: This the range of operation for a wireless trigger system. View All Attribute Definitions
Channels:	Channels: 32 (1~32)
Channels: This is the number of wireless channels for a transmitter. View All Attribute Definitions
Other Features:	Controllable Slave Groups: 5 (A, B, C, D, and E)
Other Features: Any other special feature found on a camera or camcorder. View All Attribute Definitions
Other Features:	Delay Flash: 0.01~30 Seconds
Other Features: Any other special feature found on a camera or camcorder. View All Attribute Definitions
Other Features:	Flash Duration Indication: Yes
Other Features: Any other special feature found on a camera or camcorder. View All Attribute Definitions
Other Features:	Optic Slave Flash: S1/S2
Other Features: Any other special feature found on a camera or camcorder. View All Attribute Definitions
Other Features:	Stable Color Temperature: Change Within +100K Over Entire Power Range Under Stable Color/Temperature Mode
Other Features: Any other special feature found on a camera or camcorder. View All Attribute Definitions
Other Features:	Stroboscopic Flash: Provided (Up to 90 Times, 99Hz)
Other Features: Any other special feature found on a camera or camcorder. View All Attribute Definitions
Other Features:	Sync Triggering Mode: 3.5mm Sync Line, Wireless Control Port
Other Features: Any other special feature found on a camera or camcorder. View All Attribute Definitions
Compatible Cameras:	Under Radio Transmission As Slave Unit: Canon EOS Cameras (X1T-C As Master Unit)
Compatible Cameras: This is the compatibility of a camera with a certain device or software. View All Attribute Definitions
Compatible Cameras:	Under Radio Transmission As Slave Unit: Fujifilm Fuji Cameras (X1T-F As Master Unit)
Compatible Cameras: This is the compatibility of a camera with a certain device or software. View All Attribute Definitions
Compatible Cameras:	Under Radio Transmission As Slave Unit: Nikon Cameras (X1T-N As Master Unit)
Compatible Cameras: This is the compatibility of a camera with a certain device or software. View All Attribute Definitions
Compatible Cameras:	Under Radio Transmission As Slave Unit: Olympus Cameras (X1T-O As Master Slave)
Compatible Cameras: This is the compatibility of a camera with a certain device or software. View All Attribute Definitions
Compatible Cameras:	Under Radio Transmission As Slave Unit: Sony Cameras (X1T-S As Master Unit)
Compatible Cameras: This is the compatibility of a camera with a certain device or software. View All Attribute Definitions
Number of Flashes (w/ flash and digital camera at full power):	Number of Full Power Flashes: 500 (At Full Charge)
Number of Flashes (w/ flash and digital camera at full power): This is the approximate amount of flashes within a flash unit on full power. This can vary depending on strength and frequency of firing a flash unit. View All Attribute Definitions
Power:	Power: 200Ws
Power: This is the type of power a device uses. View All Attribute Definitions

Physical Specifications
Dimensions:	172x54x75mm (Flash Head Not Included)
Dimensions: The measurements of an object. View All Attribute Definitions
Weight:	590g (Flash Head & Battery Not Included)
Weight: The physical weight of the item without packaging. View All Attribute Definitions

Flash Attributes
Model Light:	Modeling Lamp (LED): Yes
Wireless Settings:	Wireless Flash Functions: Slave/Off
Guide Number:	Guide Number (Bare Bulb Flash Head): 60 (m ISO 100, With the AD-S2 Standard Reflector, @28mm))
Guide Number: The number which indicates the effective power of a flash unit. View All Attribute Definitions
Guide Number:	Guide Number (Speedlite Flash Head): 52 (m ISO 100, @ 35mm)
Guide Number: The number which indicates the effective power of a flash unit. View All Attribute Definitions
Flash Duration:	Round/Bare Bulb Flash Head Flash Duration: 1/220 to 1/13510 Seconds
Flash Duration:	Speedlite Flash Head Flash Duration: 1/220 to 1/15380 Seconds
Flash Modes:	Flash Modes: M/Multi
Flash Modes: Different modes that determines how a flash will be used in a photo. View All Attribute Definitions
Flash Modes:	Flash Modes: Slave Unit of Radio Transmission
Flash Modes: Different modes that determines how a flash will be used in a photo. View All Attribute Definitions
Flash Modes:	Flash Modes: TTL/M/Multi
Flash Modes: Different modes that determines how a flash will be used in a photo. View All Attribute Definitions
Flash Modes:	Flash Modes: Wireless Off
Flash Modes: Different modes that determines how a flash will be used in a photo. View All Attribute Definitions
Exposure Compensation:	Flash Exposure Compensation (FEC): Manual. FEB: +3 Stops In 1/3 Stop Increments
Exposure Compensation: Refers to the option for the user to override the internal light meter in the camera to either OVER or UNDER expose based on middle/18% gray. This is especially useful when photographing either extremely white/bright scenes or when in very dark/dimly lit scenarios. View All Attribute Definitions
Recycle Time:	Recycle Time: Approx. 0.01-1.8 Seconds
Recycle Time: The amount of time a camera or flash takes to reset the flash between shots. This is generally measured when the flash is being fired at maximum power. View All Attribute Definitions

Power System
Battery Type:	14.4V/2900mAh Lithium Battery
Battery Type: The type of battery for a device. Some cameras use single use alkaline while others use rechargeable lithium batteries. View All Attribute Definitions
Power Distribution:	Power Output: 9-Steps: 1/256~1/1, In 1/10th Stop Increments
