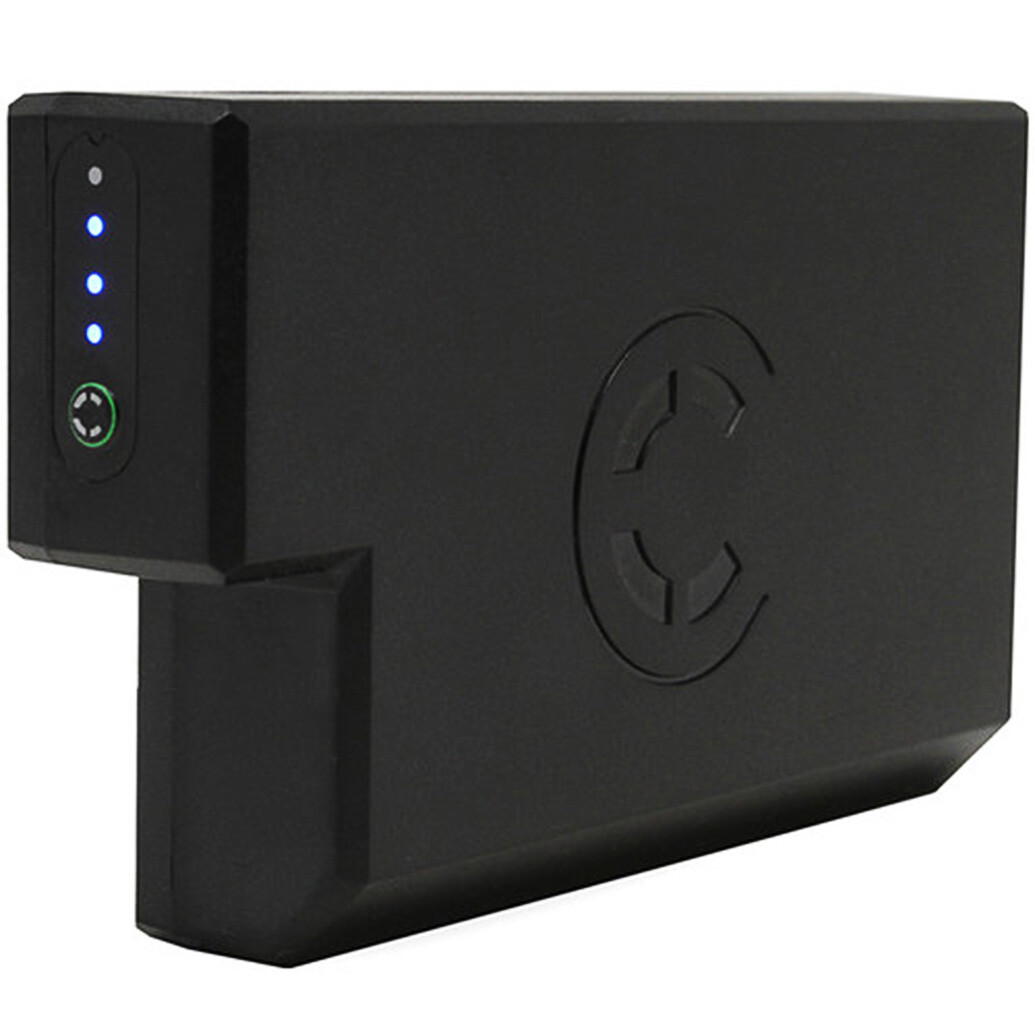

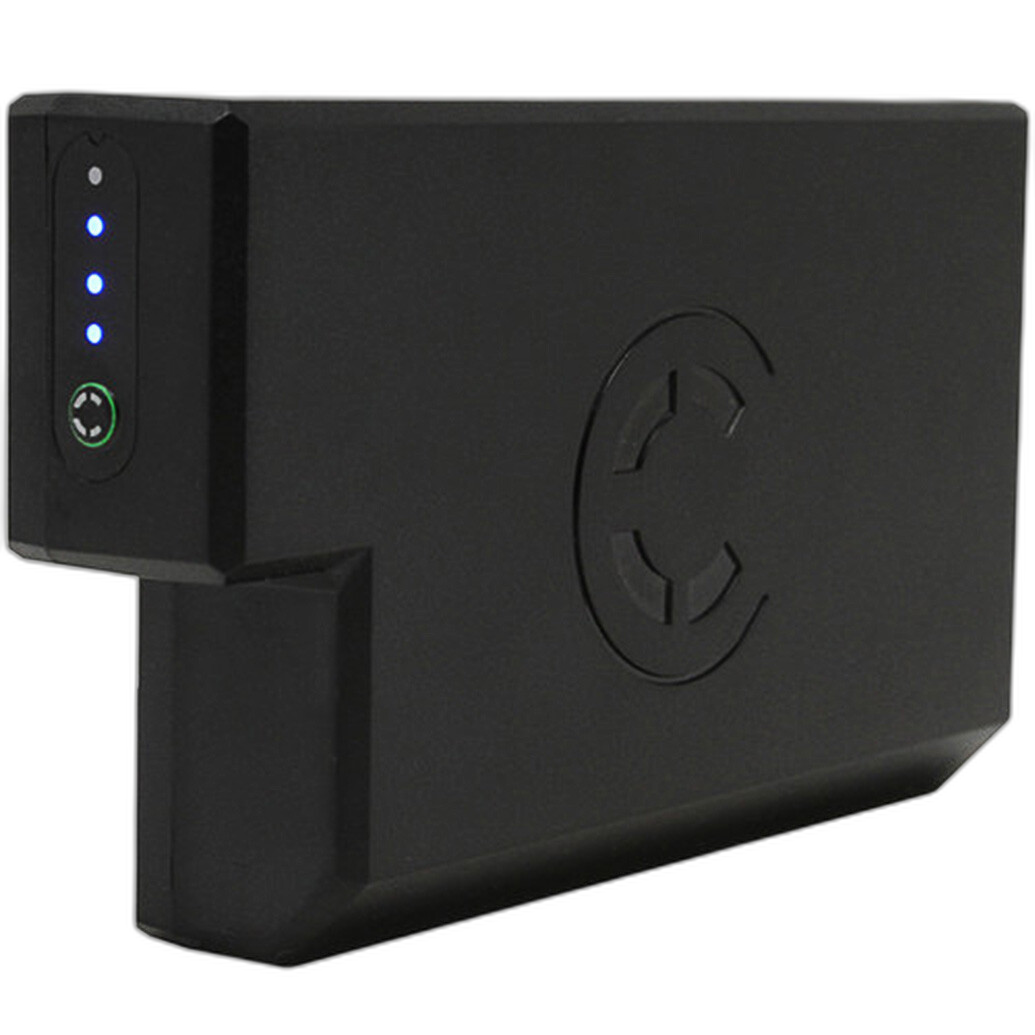

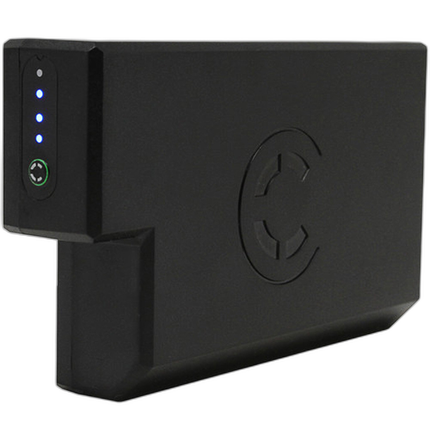

Core SWX L-Series NPF Flat Pack Battery for SmallHD Focus Monitors
Key Features
- 60Wh L-Series Lithium-Ion Battery Pack
- Designed for SmallHD Focus Monitors
- Full rotation of the monitor on the tilt arm while
- Does not block air vents on the back of the monitor
- Feature a 4-stage LED gauge
- A 7-17v DC input
- 7.2V, 7800mAh Capacity
- Allows Pass-Through D-Tap Power
- Low-Profile Design
- Compatible with Core SWX Plug-in wall wart charger
overview
The NPF-SHD is a near 60wh L-series type lithium ion battery pack design to provide a lower profile powering solution for the SmallHD Focus monitors.
It was designed to allow for full rotation of the monitor on the tilt arm while not blocking the air vents on the back of the monitor.
The battery pack features a 4-stage LED gauge along with a 7-17v DC input which allows you to powertap into the battery pack on larger camera rig configurations and route regulated power into the monitor. Should the DC input power be interrupted, the pack will seamlessly discharge from the battery cells. While the DC input allows for the added flexibility of charging the pack, the pack will charge from most L-series chargers as well such as the Core SWX one linked below.
Brand
battery/charger attributes
| Battery Capacity | 60 Wh |
| Weight | 12.5 oz / 354 g |
| Compatible Charger | Core SWX L-Series charger for the NPF-SHD battery packCore SWX |
| Voltage | 7.2 VDC |
physical specifications
| Dimensions | 5.2 x 3.1 x 1.3" |
power system
| Battery Type | Lithium ion |
- Core SWX L-Series NPF Flat Pack Battery for SmallHD Focus Monitors
