- Compact, Lightweight Design
- MPEG-2 4:2:2 50 Mbps Codec to Compact Flash Cards
- Genuine Canon 10x HD Video Lens
- Canon Native 1920 x 1080 CMOS Image Sensor
- Canon DIGIC DV III Image Processor
- SuperRange Optical Image Stabilization System with Dynamic and Powered Modes
- Supports 3D and Infrared Shooting
- Multiple Recording Bit Rates, Resolutions and Variable Frame Rates
- 3.5" High-Resolution LCD and EVF
- Fully Customizable Image, Operation and Display Adjustments
- Onboard Waveform Monitor
- Two XLR Terminals
Related mobile apps:

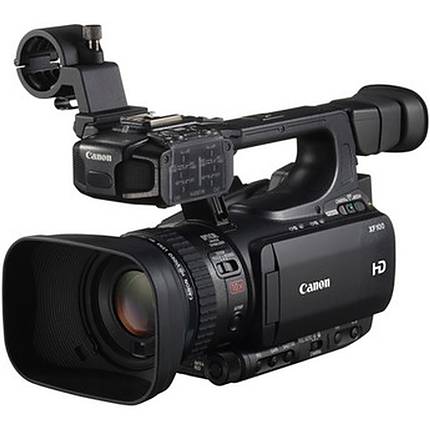

Compact in size, light weight and fully featured, the Canon XF100 Professional Camcorder can be tailored to fit a wide range of individual needs. While sharing many of the capabilities of the Canon XF305 and XF300 Professional Camcorders, including the Canon XF Codec and Compact Flash (CF) recording, the XF100 offers some exciting new features of its own.
Whether used as a companion to the XF305 or XF300 or as a standalone camcorder, the XF100 is geared for a wide range of applications where high image quality, extreme portability, and efficient workflow are of the utmost importance. And with infrared recording and true stereoscopic 3-D production capabilities, the XF100 allows users to explore new creative outlets and emerging markets.
The XF100 utilizes Canon's XF Codec a file-based MPEG-2 compression with an MXF File Wrapper that ensures the widest compatibility with existing industry infrastructure, metadata and non-linear editing (NLE) systems. The codec's 4:2:2 color sampling provides ultra-fine transitions in tone and color for maintaining the highest image quality needed for advanced post production processing.
The XF100's newly developed Genuine Canon 10x HD Video Lens along with a Canon native 1920 x 1080 CMOS Image Sensor delivers exceptional image quality. The XF100 also offers multiple recording bit rates, resolutions and variable frame rates to expand creative flexibility, allowing users to work in virtually any production environment.
Features
MPEG-2 4:2:2 50Mbps Codec (Canon XF Codec)
MPEG-2 compression is both highly reliable and versatile. Developed by the Moving Pictures Expert Group (MPEG), it is one of the most widely used compression schemes in the industry for camera acquisition, over the air broadcast, cable and satellite TV. Canon's adaptation of MPEG-2 for the XF100 Professional Camcorder, named the Canon XF Codec, ensures the widest compatibility with existing industry infrastructure and non-linear editing (NLE) systems. As well, by using an MXF file wrapper, video and audio can be wrapped in a single file along with important metadata.
The XF100 supports the highest HD quality with Full HD 1920x1080 resolution, up to a 50Mbps bit rate and 4:2:2 color sampling.
4:2:2 color sampling provides twice the color resolution of HDV and other codecs that use 4:2:0 color sampling. 4:2:2 provides ultra-fine transitions in tone and color and maintains the highest quality image for use in post production processes such as chroma keying, color grading, advanced compositing and effects.
The codecs 50Mbps constant bit rate provides the bandwidth needed to capture the XF100's superior resolution and color in spectacular detail.
Record to affordable Compact Flash Cards
Unlike other camcorders which use proprietary memory systems, the XF100 Professional Camcorder records to cost-effective Compact Flash (CF) cards. The camcorder features two CF card slots and offers versatile recording functions including:
Relay recording
When one CF card becomes full, the camcorder automatically switches video recording to the other CF card.
Hot swapping
Media can be replaced without turning off the camcorder. And while recording, the other card can be removed without interruption.
File copy and backup
Files may be copied from one card to the next ideal for backing up when on location.
Pre Record
Perfect for news crews and live event shooters, the camcorder continuously buffers approximately three seconds of video in memory. When the Record button is pressed, recording begins and the contents of buffer memory are added, so you never miss an important shot.
Double Slot Recording
For safety and convenience, the Double Slot Recording feature allows you to record simultaneously to each of the two CF cards, providing an instant backup for your footage.
Major NLE Software Compatibility
Canon's XF Codec is supported by the industrys leading manufacturers: Adobe, Apple, Avid and Grass Valley. This ensures the widest compatibility with existing infrastructure and non-linear editing (NLE) software.
Genuine Canon 10x HD Video Lens
Canon's optical expertise is clearly seen in the XF100's Genuine Canon 10x HD Video Lens. It delivers flexibility in image capture with a zoom range of 30.4 304mm (35mm equivalent).
Power zoom is available in Constant and Variable settings in 3 modes, Fast (approx. 1.9 60 seconds), Normal (approx. 3.0 180 seconds) and Slow (approx. 4.0 285 seconds). To provide added control, there are 16 predefined steps in Constant mode and rocker switch pressure sensitive or control ring speed management in Variable mode.
For enhanced versatility the XF100 offers a built-in gradation type neutral density (ND) filter (approximately 1/8), as well as an eight blade metal aperture iris.
A customizable manual control ring allows users to assign focus, zoom, or iris. These functions are easily selected through a switch on the lens barrel.
Additionally, a custom dial is available which allows the iris to be controlled.
Canon Native 1920 x 1080 CMOS Image Sensor
Newly designed and manufactured exclusively by Canon, the XF100 Professional Camcorder incorporates a native 1/3-inch, 1920 x 1080 CMOS Image Sensor, delivering superb Full HD video recording with minimal noise. The high sensitivity and wide dynamic range of this sensor are what demanding users expect from Canon. Slow and fast motion shooting is supported for greater flexibility in creative choice and its compactness contributes greatly to the small, super handy size of the XF100 and its outstanding usability in the field.
Multiple Recording Bit Rates, Resolutions, and Variable Frame Rates
Multiple recording modes, resolutions and frame rates make the XF100 Professional Camcorder creatively flexible and able to work in virtually any production environment. From the highest quality 50Mbps Full HD to the HDV compatible 25Mbps, users will find the camcorder capable of taking on any job.
Canon DIGIC DV III Image Processor
The XF100 Professional Camcorder features Canon's powerful DIGIC DV III Image Processor, which provides enhanced shading, lifelike tonal gradations, new custom picture settings and lower power consumption. DIGIC DV III is also the high-speed engine which powers Genuine Canon Face Detection. On-the-go videographers will appreciate the ability to track one subject in a crowd of people.
Infrared Recording
The XF100 Professional Camcorder features an Infrared Mode allowing users to capture video in conditions with little to no ambient light, a situation which would make other camcorders useless. During infrared capture, the infrared cutoff filter is removed from the optical path. Combined with a specially designed lens coating, infrared light is able to pass through to the image sensor. Additionally, the XF100 features an infrared emitter with a diffuser to shoot pleasing infrared imagery even in complete darkness. For the nature videographers or law enforcement users, the benefits of a compact, high performance camcorder for shooting in such conditions is obvious. Without the need to add lights, the shooter may remain hidden from their subjects. Also, the XF100 gives the option of recording in green or white light mode.
Waveform Monitor
Videographers depend on this feature to confirm accurate exposure and color levels during the capture process. Typically only found on expensive external units, the Canon XF100 Professional Camcorder has a waveform monitor built right into the camera. The waveform monitor shows a detailed view of overall image brightness and RGB components.
Optional Canon WD-H58W Wide Converter
Optically matched for the XF100s HD lens, the WD-H58W Wide Converter provides a magnification factor of 0,8x increasing wide angle capability to approximately 24mm (35mm equivalent).
Intelligent Battery System
The XF100 Professional Camcorder is compatible with Canons new BP-925, as well as the BP-955 and BP-975 Intelligent Lithium-ion batteries. These batteries communicate remaining running time (down to the minute) and wear data back to the camcorder, so the user is well-informed at all times. On the outside of the battery, four LED lamps allow battery life to be viewed quickly when in the field.
Additionally, the camcorder is compatible with existing Canon BP-900 series batteries. Batteries can also be inserted and removed while the supplied AC power cable is connected
Photo Capture
For applications such as storyboarding, continuity and publicity shots, the XF100 offers the ability to capture 1920 x 1080 still images. Photos may be captured to an SD memory card during the time of recording, as well as frame grabbed during playback.
Color Bars with Reference Tone
Two types of color bars can be selected:
Type 1 (SMPTE compliant) or Type 2 (ARIB compliant)
1 kHz Reference Tone: -12dB, -18dB, 20dB or OFF
Support for 9 languages including:
German, Spanish, French, Italian, Polish, Russian, English, Chinese (simplified) and Japanese.
- XF100 Video Camera
- Lens Hood
- Battery Pack BP-925
- Compact Power Adapter CA-930
- DC Cable DC-930
- Wireless Controller WL-D6000
- Component Cable CTC-100/S
- Shoulder Strap SS-120
- Microphone Holder
- Canon XF Utilities Disk
Video Recording System | Compression: MPEG-2 Long GOP |
Filter Diameter | 58 mm |
Type (Multi) | 1/3"" CMOS |
Image Stabilization | SuperRange Optical (Lens Shift) 4 modes: Standard, Powered, Dynamic, Off |
Megapixels | 2.37 |
Focusing System | TVAF plus External Phase Difference Metering Sensor, Autofocus (Instant AF, Medium AF, Normal AF, Face AF, Face Only AF), Manual, Full Manual |
Video Terminal | Yes |
Accessory Shoe | Auto, P, Portrait, Sports, Snow, Beach, Sunset, Night Scene, Low Light, Spotlight, Fireworks |
Minimum Illumination | Full AUTO mode: 4.5 lux (Shutter speed 1/60, Gain +24dB); Manual mode: .11 lux (shutter speed 1/4, Gain +33dB), (when 60i is selected) |
Total Pixels | Approx. 2.37 megapixels |
Type of Microphone | Stereo electret condenser microphone |
Programmed AE | Yes |
Microphone Terminal | No |
Manual Exposure | Yes |
Max Resolution | 1920 x 1080 |
USB Terminal | Yes |
Frame Rate | 60i, 60p, 30p, 24p (50i and 25p optional upgrade available through Canon Factory Service Center) |
HDMI Terminal | Yes |
Compatible Media | CF Card: 2 Slots (movie files only) SD Card: Still images, Custom Picture Data, Clip Metadata, Custom Settings |
Lens f Stop Range | f/1.8-2.8 |
Lens Min. Focus Distance | 20mm (wide macro), 60cm (entire zoom range) |
Lens Min. Focus Distance | 20mm (wide macro), 60cm (entire zoom range) |
Video Clip Length | 64GB Compact Flash (CF) card (Greater capacity is possible when two cards are used.); 25Mbps: 310 minutes; 35Mbps: 225 minutes; 50Mbps: 160 minutes |
Video Resolution | 1920 x 1080 |
Image Formats | MXF |
Internal Memory | 4-in-1 / 2-in-1, Auto Exposure/Intensity Copy, Face Brightener/Fading Correction, Fit-to-Page, Gutter Shadow Correction Copy, Image Repeat, Intensity, Multiple Copy: 1-9, 20 Pages, Photo Reprint, Preset Copy Ratios, Zoom |
Face Detection | Yes |
Focusing Range | 4.25-42.5mm (30.4-304mm, 35mm equivalent) |
Battery Type | 7.4VDC (Battery Pack) |
Max Shutter Speed | 1/2000 |
Weight | 2.2 lbs (1kg) - not including battery, memory card, lens hood, mic holder |
Dimensions | 4.8 x 5.8 x 9.8" (12.1 x 14.8 x 25 cm) |
Color | Black |
White Balance | Auto, Manual, Custom (2000K - 15000K in 100K increments), Daylight, Tungsten |
Screen Size | 3.5" |
Display Type | Color LCD |
Monitor Resolution | Approx. 920,000 dots |
Effective Pixels | Approx. 2.07 Megapixels |
Brand | Canon |
Brand | Canon |
Viewfinder Type | 0.24" Color, approx. 260,000 dots |
