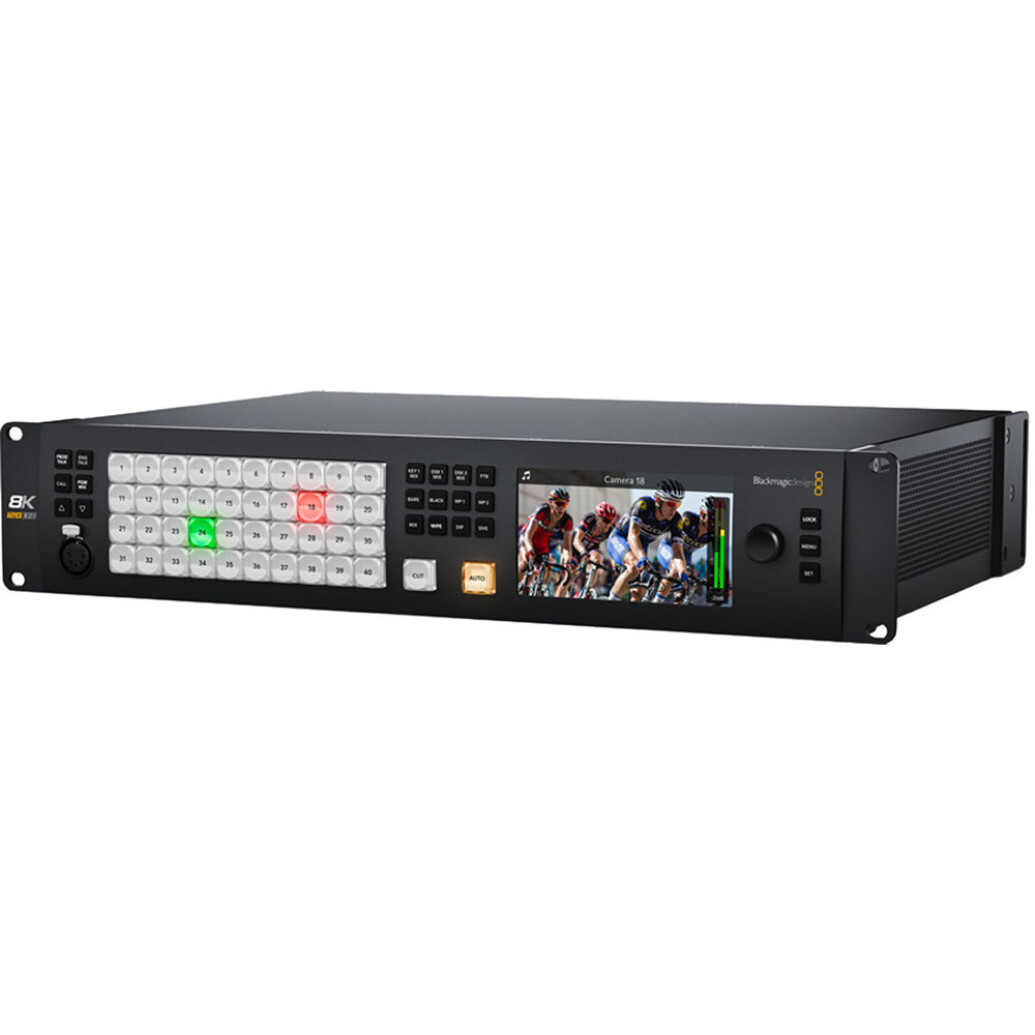

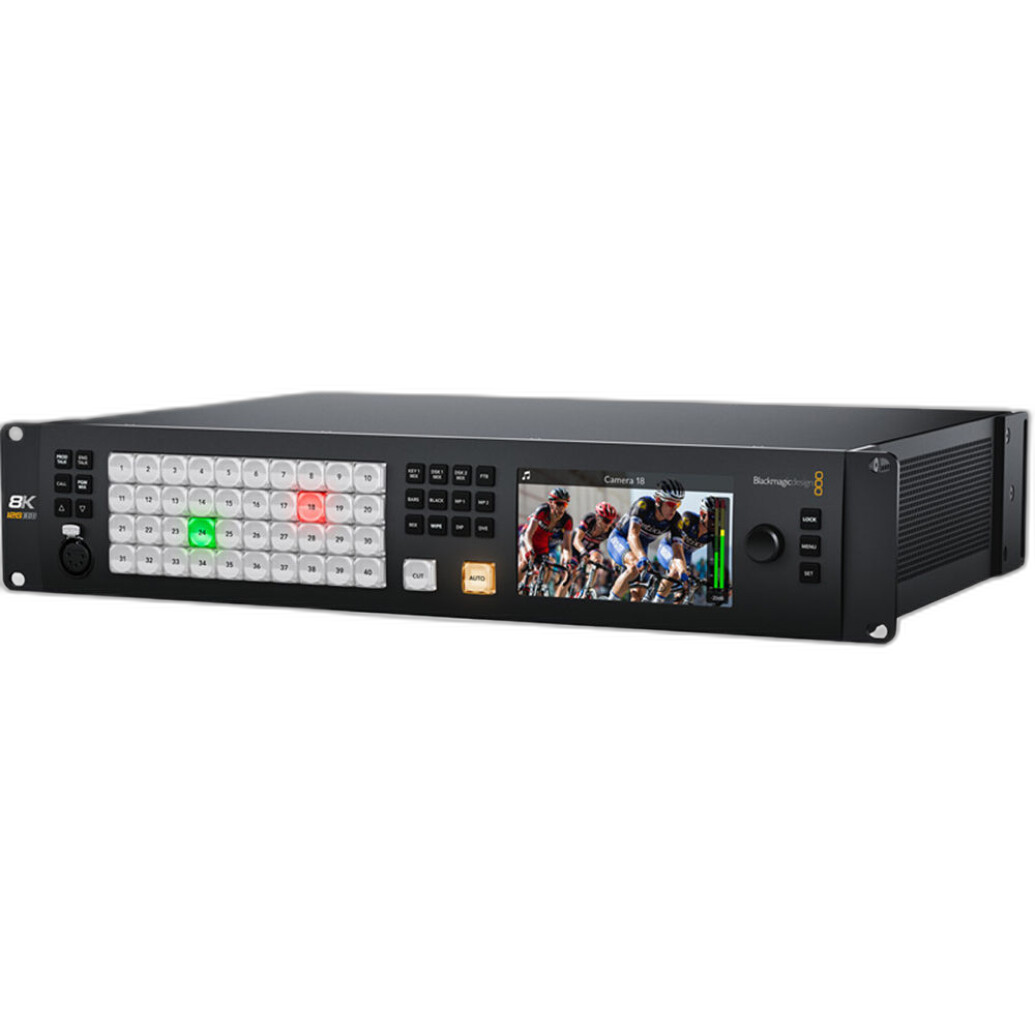

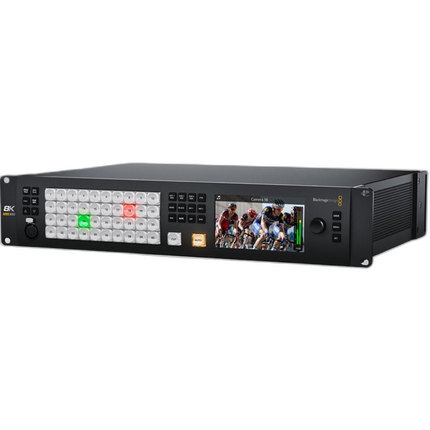

Blackmagic ATEM Constellation 8K
Key Features
- 4 x Media Players
- 4 x DVE, 16x Keyers
- 40 x 12G-SDI Inputs, 2 x 12G-SDI Outputs
- 24 x 12G-SDI AUX Outputs
- 4 x Mutli-view Outputs
Recommended Accessories
Zeiss Microfiber Cleaning Cloth
- Premium Zeiss microfiber cleaning cloth designed for safe cleaning of lenses, filters, eyeglasses, and optical surfaces
- Soft, lint-minimizing fabric helps remove dust, fingerprints, and smudges without scratching delicate coatings
Giottos Rocket Blaster Cleaning Kit
- Natural and environmentally-friendly rubber
- Air inlet value design prevents air's back flow from air nozzle
Kinetronics Soft Microfiber Anti-Static Cloth - 10 Inch x 18 Inch (250x450)
- Kinetronics anti-static microfiber cloth
- Designed for cleaning photographic films
OVERVIEW
Ultra HD live production switcher with so many features, you can combine them all to make an incredibly powerful 8K switcher! This massive 4 M/E switcher features 40 12G-SDI inputs, 24 12G-SDI aux outputs, 4 DVEs, 16 ATEM Advanced Chroma Keyers, 4 media players, 4 independent Ultra HD multiviews, 2 SuperSource processors and even standards conversion on all inputs! When switched to work in 8K, all of these features are be combined to make a powerful native 8K switcher! You even get built in talkback and a professional 156 channel Fairlight audio mixer with EQ and dynamics!
Brand
physical specifications
| Dimensions | 19" x 13.23" x 3.54" |
| Color | Black |
production switcher
| SD Video Standards | None |
| HD Video Standards | 720p50, 720p59.94 1080i50, 1080i59.94 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p50, 1080p59.94 |
lens specification
| Weight | 18.52 lbs |
- Blackmagic ATEM Constellation 8K
- Welcome wallet with QR code for software download
