Condition: Excellent


Revel in the moment

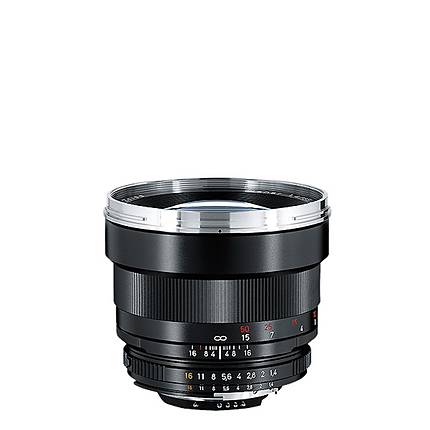

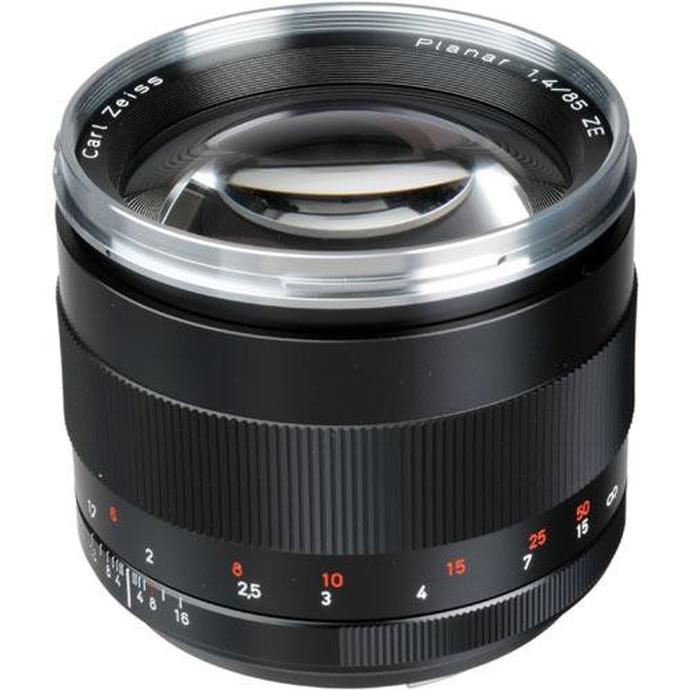

This classic portrait lens captures people in their surroundings, playing with a range of sharpness, soft focus and contrast effects. Its distinctive circular bokeh is a crucial creative element. The Planar T* 1,4/85 produces very high quality and shallow depth-of-field when wide open. This is especially suitable for isolating the main subject from the foreground and background. This lens is also suitable as a general-purpose lens.

Design

The famous symmetric lens design invented by Dr. Paul Rudolph at Carl Zeiss in 1896. The Planar lens is the most successful camera lens design – and, by the way, the most plagiarized – ever created. It provides the lens designer with numerous means to correct aberrations extraordinarily well. And its performance is very constant over a wide range of imaging ratios, enabling such a versatile lens variety as the Makro-Planar lens.

Floating Elements Design

Today’s camera technologies and high-resolution sensors demand continuous improvement of lens performance. Thanks to the use of the latest floating element design principles, optical aberration effects in ZEISS lenses are reduced to a minimum throughout their entire focusing range. This is achieved by variation of the axial distance between individual lens elements or groups. This adjustment of the lens-to-lens distance is coupled to the distance setting to ensure correct compensation at all times. The mechanical construction of these lenses is extremely complex and they must be assembled with utmost precision – both of which are key competencies of ZEISS.

Excellent image quality

The Carl Zeiss range of T* lenses offers the highest possible standards in terms of performance, reliability and, of course, image quality. Quite simply, they are superior in every way. You can count on highly advanced flare control for crisp and brilliant images, for example. And virtually zero geometric distortion, ensuring precise accuracy when reproducing shapes – especially useful when photographing products and architecture.

Elaborate stray light reduction

Rich, vibrant colors are vital to creating a lasting impression. Stray light in the lens, however, would lead to a brightening of the image, which is particularly visible in shadow areas. Image contrast is lowered; the image appears dull and bleached. We combine various, elaborate techniques to reduce unwanted stray light. For example, all lens elements are coated with the famous Carl Zeiss T* anti-reflective coating. Additionally, a jet black special paint is applied by hand to all lens element edges to ensure that reflections are prevented from the start.

Precise manual focus

Manually focusing a lens means controlling the image result from your fingertips. A good ergonomic design makes all the difference. Carl Zeiss SLR lenses stand out with their large rotation angle which enables precise focusing. Changes are immediately visible in the viewfinder. The high-quality focusing mechanism moves smoothly without play, thus also supporting the intuitive interaction with the focal plane. The precise engraving in meter and feet, and the depth of focus scale provide additional support for manually focusing.

Carl Zeiss T* anti-reflective coating

The optical elements of ZEISS lenses feature T* anti-reflective coating on all surfaces and an optical design that guarantees images of superior brilliance at all times, even in unfavourable lighting conditions. We apply the anti-reflective coating to the lens surfaces by the vapour deposition of extremely thin, transparent layers on the glass. In this process, special substances are vaporized with extremely high energy in a high-vacuum environment and are subsequently deposited on the glass surfaces, one after another, as layers with precisely controlled thicknesses to achieve the desired reduction of reflective properties. The first coating techniques were employed by Carl Zeiss as long ago as in the 1930s.

Product Reviews

In The Box

• Zeiss 85mm F1.4 Planar T* ZE MFs Lens for Canon EOS
• Back and Front Cap
