Sirui VH-10 Video Head Max Load 13.2lbs

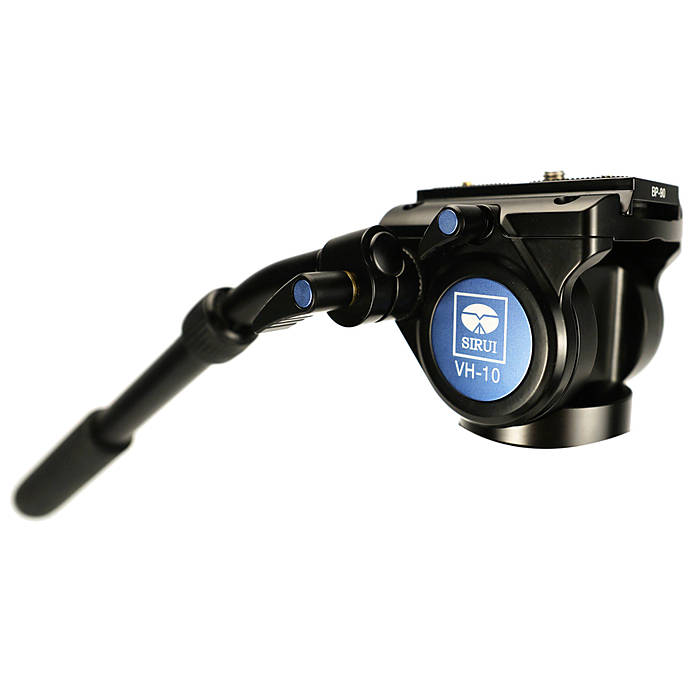

Sirui VH-10 Video Head
For DSLRs and camcorders

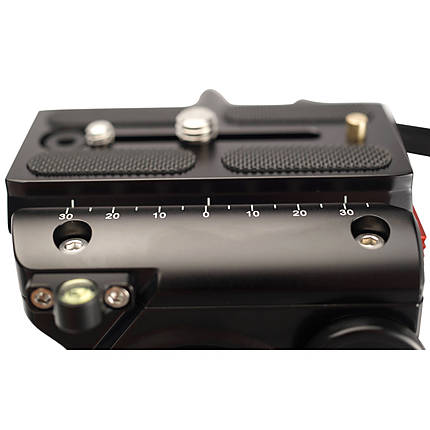

Slide-balancing quick-release plate
1/4"-20 and 3/8"-16 mounting thread
Payload capacity of 8.8 lb
Spring-loaded counterbalance
Counterbalance support of 4.4 lb
Tilting range is -70° / +90°
360° pan
3/8"-16 female tripod mount
Aluminum construction

Color:: Color

Color:: The color of the item.

Overview

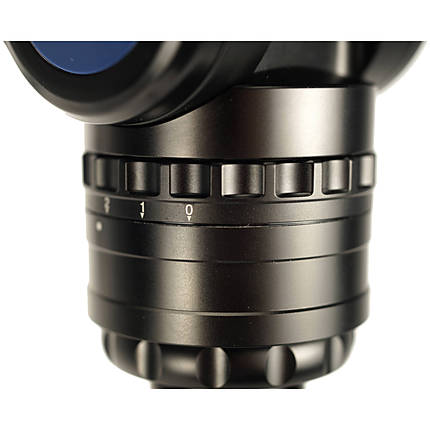

The Sirui VH-10 Video Head lets you take smooth pan and tilt shots during the recording. You can mount the head on tripods having a 3/8"-16 stud. The video head offers a payload capacity of 8.8 lb and counterbalance support of 4.4 lb. You can tilt the head in a range of -70° to +90°. The 360° pan movement allows you to track the subject in the frame. There are two mounting thread on the slide-balancing quick-release plate for 1/4"-20 and 3/8"-16 female threaded cameras. You can adjust the drag of the head in four levels from 0 to 3. Refer the two bubble levels on the head to balance the tripod on an uneven surface.

Product Reviews

There are no reviews for this product.

Write a review

Specifications

Brand
Sirui

Detailed Specifications
Quick Release:	VP-90 plate with 1/4"-20
Quick Release: Refers to a quick release plate that allows you to work more quickly by mounting your equipment to your tripod head more securely with less risk of vibration or slipping. View All Attribute Definitions
Material:	Aluminum
Material: The substance that something is made out of. View All Attribute Definitions

Physical Specifications
Weight:	2.6 lb (1.2 kg)
Weight: The physical weight of the item without packaging. View All Attribute Definitions
Height:	5.1" (130 mm)
Height: The distance of an object from top to bottom. View All Attribute Definitions
Color:	Color
Color: The color of the item. View All Attribute Definitions
Maximum Diameter:	2.6" (65 mm) / 3/8"-16
Maximum Diameter: The maximum diameter. View All Attribute Definitions

Support Specifications
Balance Plate:	Slides 3.5" (90 mm)
Tilt Drag:	Continuously adjustable from 0 to max level
Tilt Drag: Allows you to adjust the amount of resistance during a pan or tilt movement. View All Attribute Definitions
Independent Pan Lock:	Yes
Independent Pan Lock: This is an independent locking mechanism for ball-head tripods. It will lock the rotating head while allowing horizontal panning. View All Attribute Definitions
Tilt Lock:	Yes
Tilt Lock: Locks the tripod in place. View All Attribute Definitions
Pan Range:	360°
Pan Range: This is the horizontal panning range of a tripod head. Most tripods with a panning arm can pan 360°. View All Attribute Definitions
Load Capacity:	8.8 lb (4 kg)
Load Capacity: The maximum amount of weight that can be held by an apparatus. View All Attribute Definitions
