Saramonic UwMic9s Kit 1 Wireless Dual Channel Lavalier
- Product #:
- SAR2084
- Manufacturer #:
- UWMIC9S-KIT1
- UPC:
- 6971008027815
- Delivering professional broadcast-quality sound
- Low-cut function for low-frequency noise canceling
- Infrared pairing function
- Mono/Stereo mode switchable
- Vivid High-contrast OLED display
- Detachable and 360°switchable antenna
- ON/OFF physical switches for group channel A and B

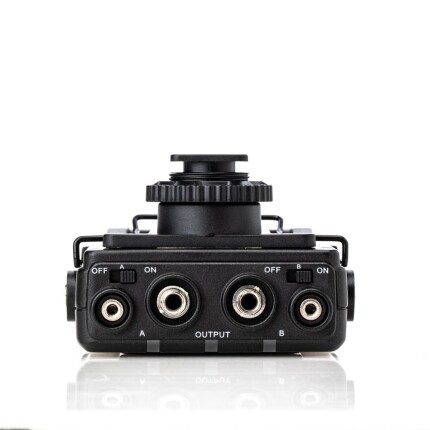

- Independent left and right channel outputs
- Built-in rechargeable Li-ion battery
- Mic and Line input for multi-layered content creating
- Headphone monitoring available
- Watertight suitcase included
OVERVIEW

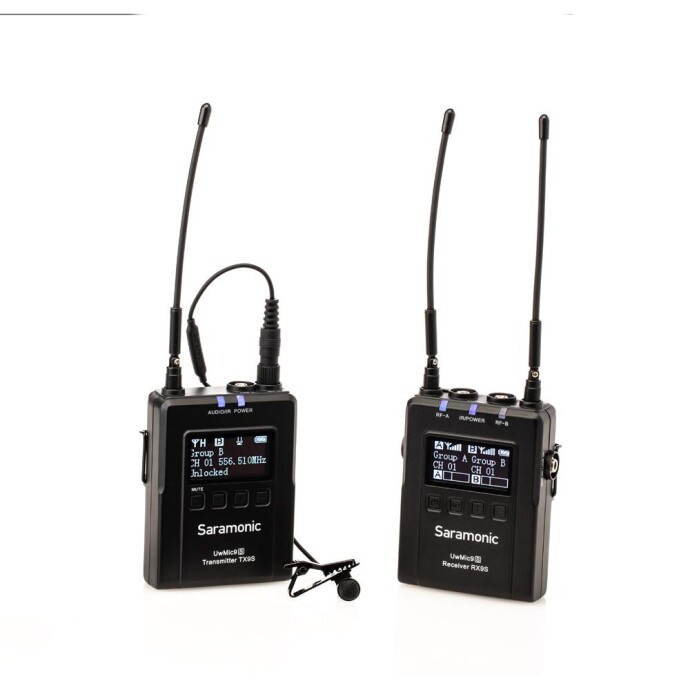

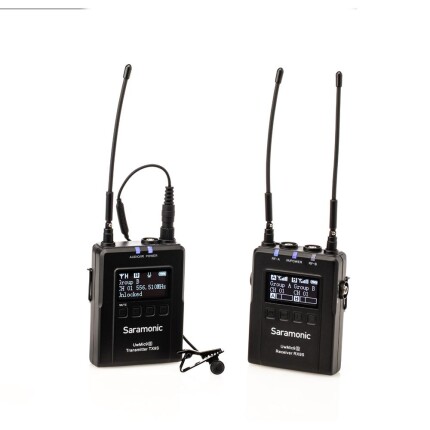

UwMic9S Kit1(TX+RX)
Wireless Microphone System
The Saramonic UwMic9s wireless microphone system provides a premium 2-person wireless audio solution for Broadcast & TV, ENG, filmmakers, vloggers, mobile journalists and content creators for a remarkable price, It is an easy-to use, high-quality and flexible UHF system, The external input allows the receiver to be connected to a mic or line level device, such as a shotgun microphone, mixer, recorder or music player to capture additional sound or music. The system can be powered through its USB-C ports, allowing it to run for numerous hours on a USB-C 5V power bank.

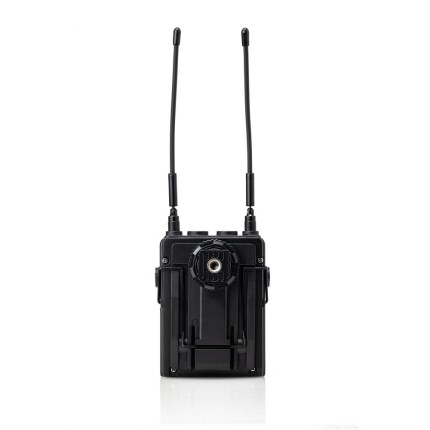

RX9S Portable Receiver
The Saramonic UwMic9s RX is a camera-mountable dual-channel UHF wireless receiver. It features wide switching RF bandwidth, a high-contrast OLED display and infrared, synchronization between transmitter and receiver. The two detachable antennas can be rotated 360° for better reception. The receiver’s output can be toggled between mono and stereo modes, The low-cut function on the receiver minimizes low-frequency rumble.
Body-pack Transmitter TX9S
The Saramonic UwMic9S-TX9S is a mountable body-pack transmitter. It features an easy-to-read OLED display, a detachable antenna and built-in rechargeable battery. with the line input and mic input jack, it can accept audio from the included 3.5mm locking lavalier mic or other line-level devices, A short press of the power button mutes the mic between takes. The locking function prevents the transmitter from being muted or turned off accidentally.
Product Reviews
There are no reviews for this product.
Specifications
Brand | |
---|---|
Saramonic |
Microphone Specifications | |
---|---|
Polar Pattern: | Omnidirectional |
Output Connectors: |
RX9S Receiver Audio Output Connectors: 2x 3.5mm Locking-Type (A & B Outputs) Audio Output Level: -60 dBV Headphone Output: 3.5mm Locking-Type Headphone Output Level: 30mW(16O) |
Signal to Noise Ratio: | More than 75dB |
Sensitivity: | -40±2dB (1kHz 0dB=1V/Pa) |
Frequency Range: | 20Hz to 18kHz |
Detailed Specifications | |
---|---|
Type of Microphone: | Lavalier |
|
|
USB Port: | USB-C |
|
|
Power Requirements: |
RX9S Receiver: Built-in Li-ion Battery or USB-C DC 5V TX9S Transmitter: Built-in Li-ion Battery or USB-C DC 5V |
|
|
Connectors: | Gold-Plated Locking 3.5mm |
|
|
Cable Length: | 70.87” (180cm) |
|
Connectors | |
---|---|
Mic Maximum Input Level: |
RX9S Receiver Reference Audio Input Level: -60dBV (Mic input, 0dB attenuation) TX9S Transmitter Line-Level Input Level Steps: -14dB, -10dB, -7dB, -4dB, -2dB, +2dB, +5dB, +8dB, +10dB Reference Audio Input Level: -60dBV (Mic input, 0dB attenuation) |
Physical Specifications | |
---|---|
Dimensions: |
RX9S Receiver: 8.66 x 2.52 x 0.98 (220 x 64 x 25mm) TX9S Transmitter: 8.66 x 2.52 x 0.98 (220 x 64 x 25mm) SR-C6 Case: External Dimensions: 9.88 x 7.46 x 3.64 (251 x 189.5 x 92.5mm) Interior Dimensions: 9.17 x 6.02 x 3.15" (233 x 153 x 80mm) |
|
|
Weight: |
RX9S Receiver: 6.8oz (193g) TX9S Transmitter: 5.5 oz (157g) |
|
Wireless Transmitter Specifications | |
---|---|
Frequency Response: | 40Hz to 18kHz (+/-3dB) |
Brand | |
---|---|
Brand: | Saramonic |

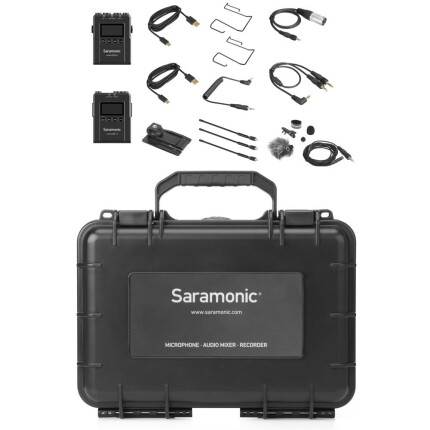

In The Box
- 1 x RX9S Portable Dual Channel Camera-Mountable Receiver
- 1 × TX9S Belt Pack Transmitters
- 3 × Antennas
- 2 × Belt Clips
- 1 × Cold Shoe Mount Adapter
- 1 × DK3A Omnidirectional Lavalier Microphones
- 2 x Alligator-Style Lavalier Microphone Clips
- 1 x Fitted Metal Microphone Windscreens
- 2 x Foam Windscreens with Fitted Gaskets
- 2 x High-Wind Furry Windscreens with Elastic Fastening Clasps
- 1 x Reusable Cable Wraps
- 1 × SR-C2004 11.8” (30cm) 3.5mm Dual Locking-Type 3.5mm TRS to 3.5mm TRS Male Y-Cable
- 1 × SR-UM10-C35XLR 1.3' (40cm) 3.5mm TRS Locking-Type to XLR Male Cable
- 1 × SR-UM10-C35 2.63' (80cm) Coiled 3.5mm TRS Locking-Type to 3.5mm TRS Cable
- 2 × 3.94' (1.2m) USB-A to USB-C Charging Cables
- 1 x SR-C6 Impact-Proof and Watertight Equipment Case
