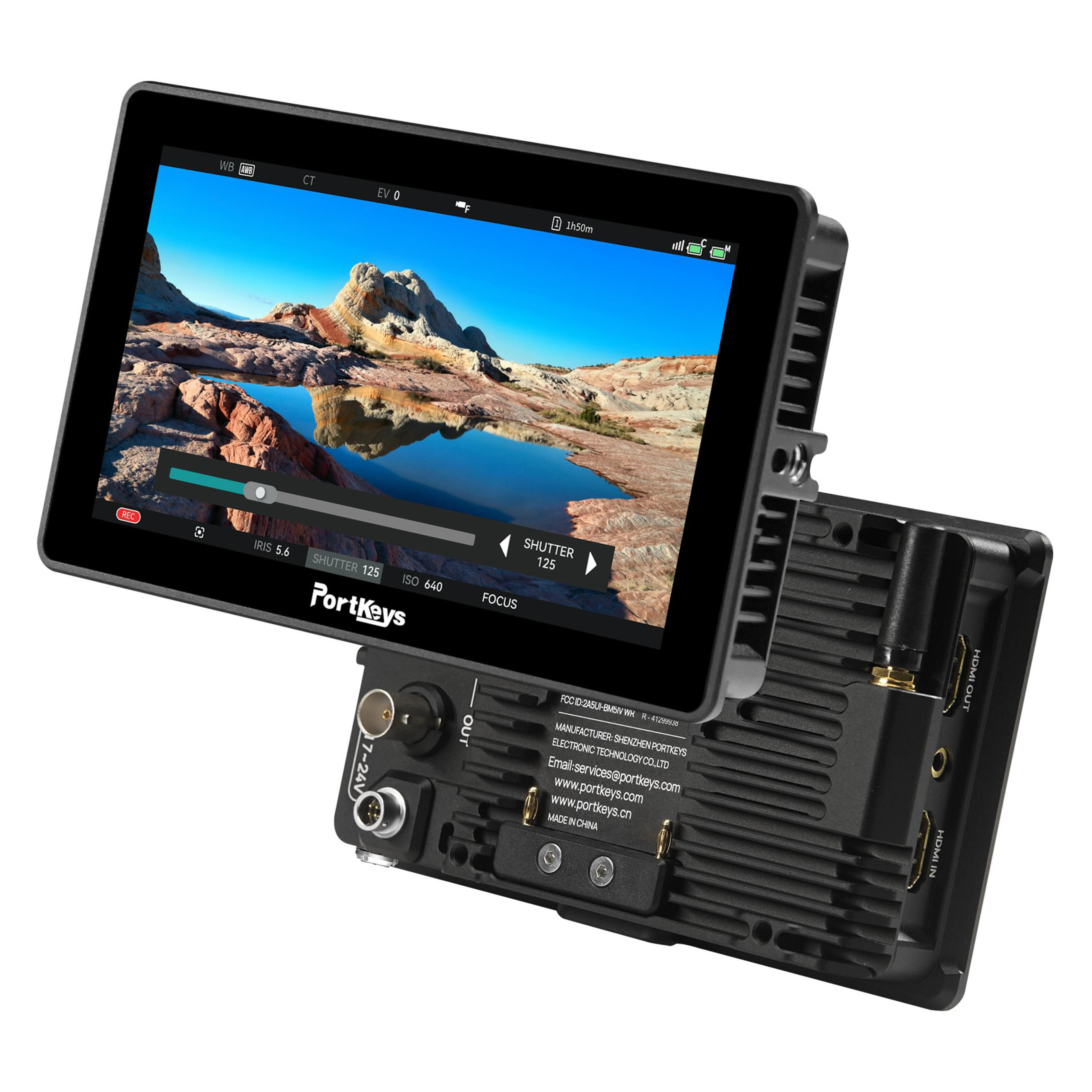

Portkeys BM5IV 5.5in HDMI/SDI Touchscreen Monitor with Camera Control
- 5.5-inch, 10-bit (8+2 FRC) panel with a resolution of 1920 x 1080 and a 1000:1 contrast ratio.
- Daylight-viewable with a maximum brightness of 2,000nits.
- 1 x 4K60P HDMI input, 1 x 3G-SDI input, 1 x 4K60P HDMI output, 1 x 3G-SDI output with cross-conversion.
- Powered by CINENORM OS, which supports up to 7 custom pages.
- Professional monitoring tools: Waveform, Vectorscope, Peaking, ARRI False Color.
- 3D LUT monitoring and 3D LUT SDI output capabilities.
- Split-screen monitoring capabilities with multiple viewing modes, including PBP, PIP, and H2V.
- Factory color-calibrated, and the possibility for users to create a 3D calibration LUT with an X-Rite color probe.
- Wireless camera control of ARRI, RED, SONY, Nikon, Canon, Panasonic, and Blackmagic Design cameras.
- Wired camera control for Sony, Canon, Panasonic, BMD, and ZCAM E2.
- TILTA Nucleus N/M wireless follow focus wired control.
- Built-in Sony NP-F style battery plate.
OVERVIEW
Flexible Color Controls
The BM5IV WR uses three color gamuts to properly calibrate your image: 100% REC.709, 85% P3-DCI, and 85% P3-D65. You can manually select your Log mode, toggle Log false color, and select your own custom false color from 77 colors and 15 different segments. The monitor is factory calibrated with the option for users to create a 3D calibration LUT and an X-Rite color probe.
CINEFORM OS
CINEFORM OS powers the monitor and allows you to configure settings to suit your workflow. Import two sets of custom color calibration files, create seven custom control pages, and save it all to the included micro-USB drive for import to another monitor and streamline your workflow.
Dual-Screen Monitoring
When taking in multiple camera signals via the HDMI and SDI input ports, you can select different dual-screen monitoring configurations to view both images simultaneously. Choose between horizontal to vertical crop, picture-in-picture, dual vertical, dual horizontal, and vertical/horizontal split views.
Connectivity
This upgraded BM5IV WR monitor features the same HDMI input, SDI input, and SDI output ports found on the previous model with the addition of an HDMI output, allowing you to convert signals with ease. The HDMI ports can support up to 4K60 video, while the SDI ports can support up to 1080p60 video. A USB-A port helps facilitate firmware updates and uploads 3D LUTs to the monitor.
Wired Camera & Motor Control
A micro-USB remote connection facilitates camera control with select camera models from RED, Sony, Blackmagic Design, Canon, Panasonic, and Z CAM using separately available cables. The BM5IV WR can also be used in tandem with your Tilta Nucleus N/M wireless focus system using its UART port for calibration and limit setting.
Wireless Control
An included 2.4 GHz antenna facilitates wireless communication with select camera models. The BM5IV WR is RED-approved and can connect to KOMODO/V-RAPTOR cameras to change settings directly from the monitor and perform touch-to-focus in real time. Select Sony camera models also have touch focus capabilities and support zoom adjustment. The monitor can also wirelessly control the ARRI ALEXA Mini, Nikon Z8/Z9, Canon EOS R5/R6/R6 Mark II/R7/R8, and Panasonic BGH1/BS1H.
Multiple Power Options
Use either the 2-pin LEMO port or the 4-pin interface and the included D-Tap cable to connect compatible power sources directly to the monitor. A built-in NP-F battery plate supports compatible batteries.
Robust Design
The monitor is constructed of durable aluminum alloy to withstand the rigors of production. The integrated fan can be set to switch to its lowest setting once the recording is toggled to minimize audio distortion.
In the Box
- PORTKEYS BM5IV WR 5.5" HDMI/SDI Touchscreen Monitor with Camera Control
- 2.4 GHz Antenna
- Micro-USB Flash Drive
- D-Tap to 4-Pin Aviation Power Cable
- Storage Case
- Limited 1-Year Manufacturer Warranty
